Wuxi I-core ElecDatasheet (PDF)

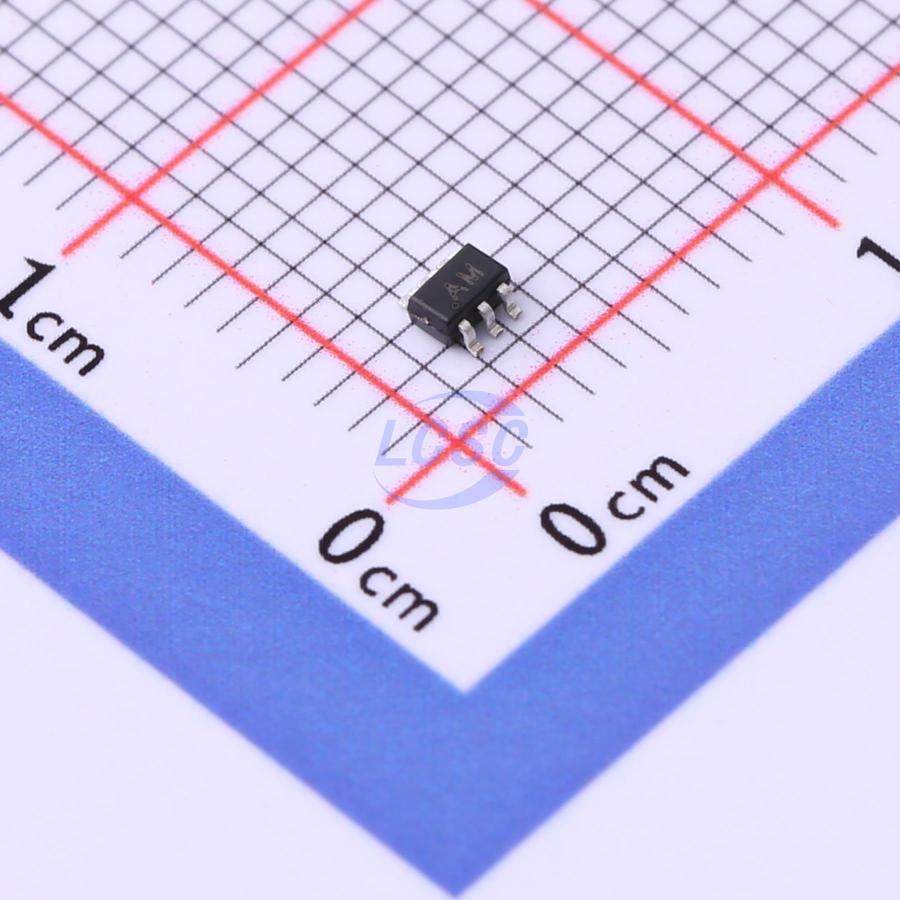

AiP74LVC2G04GC363.TR
TTL兼容CMOS 1.65V~5.5V 3.2ns@5.5V,50pF 4uA 2 SOT-363 Gates and Inverters
SOT-363RoHSActive
Dual Inverter
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP74LVC2G04GC363.TR
- Store part #
- C3002791
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,690 in stock
#C3002791
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.83 | ₹98.30 |
| 100+ | ₹7.82 | ₹782.00 |
| 300+ | ₹6.81 | ₹2,043.00 |
| 3,000+ | ₹6.06 | ₹18,180.00 |
| 6,000+ | ₹5.46 | ₹32,760.00 |
| 9,000+ | ₹5.16 | ₹46,440.00 |
10 × ₹9.83
₹98.30
excl. GST
₹115.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP74LVC2G04GC363.TR
₹98.30 for 10 + GST
Specifications
- output type
- Push-pull
- Input Type
- TTL兼容CMOS
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Propagation Delay
- 3.2ns@5.5V,50pF
- Features
- Power shutdown protection
- Input Logic Level - High
- 1.7V;2V
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+105℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 2
- Current - Output High(IOH)
- 24mA
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
The AiP74LVC2G04 provides the dual inverting buffer. Inputs can be driven from either 3.3V or 5V devices. These features allow the use of these devices in a mixed 3.3V and 5V environment. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range from 1.65V to 5.5V
- 5V tolerant inputs for interfacing with 5V logic
- ±24mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- Direct interface with TTL levels
- Inputs accept voltages up to 5V
- Specified from -40°C to +105°C
- Packaging information: SOT-23-6/SOT-363
