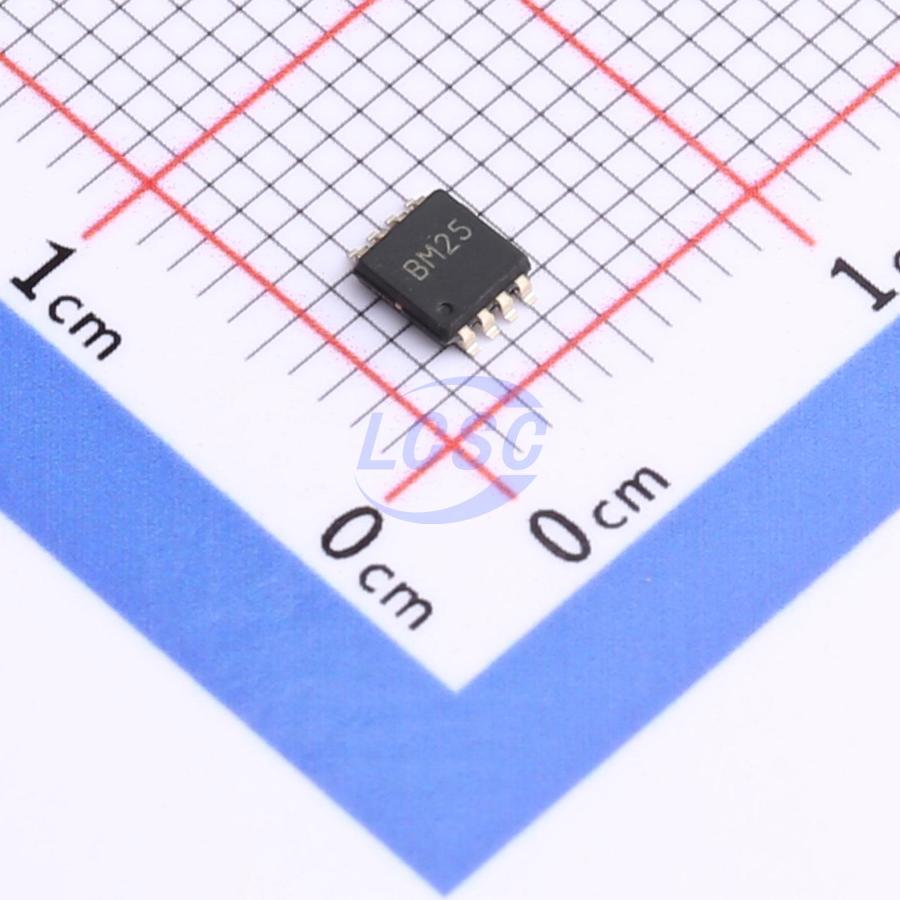

Wuxi I-core Elec

AiP74LVC2G08TA8.TR

TTL-compatible CMOS 1.65V~5.5V 9ns@1.65V,30pF 4uA TSSOP-8 Gates and Inverters

TSSOP-8RoHSActive

AiP74LVC2G08 Dual 2-input And Gate

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP74LVC2G08TA8.TR
Store part #: C5121353
Package / case: TSSOP-8
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,705 in stock

#C5121353

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹26.96	₹134.80
50+	₹20.74	₹1,037.00
150+	₹18.07	₹2,710.50
500+	₹14.74	₹7,370.00
3,000+	₹13.26	₹39,780.00
6,000+	₹12.37	₹74,220.00

Quantity (min 5, multiples of 5)

5 × ₹26.96

₹134.80

excl. GST

₹159.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AiP74LVC2G08TA8.TR

₹134.80 for 5 + GST

Specifications

Input Type: TTL-compatible CMOS
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 9ns@1.65V,30pF
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Features: Local shutdown mode;Rear drive protection
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+105℃
Input Logic Level - High: 1.7V;2V
Output Logic Level - High: 1.2V;1.9V;2.2V;2.3V;3.8V
Quiescent Current(Iq): 4uA
Number of Channels: 2;2

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

The AiP74LVC2G08 provides a 2-input AND gate function. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of the AiP74LVC2G08 as a translator in a mixed 3.3V and 5V environment. This device is fully specified for partial power-down applications using IOFF. The IOFF(overline) circuitry disables the output, preventing a damaging backflow current through the device when it is powered down.
