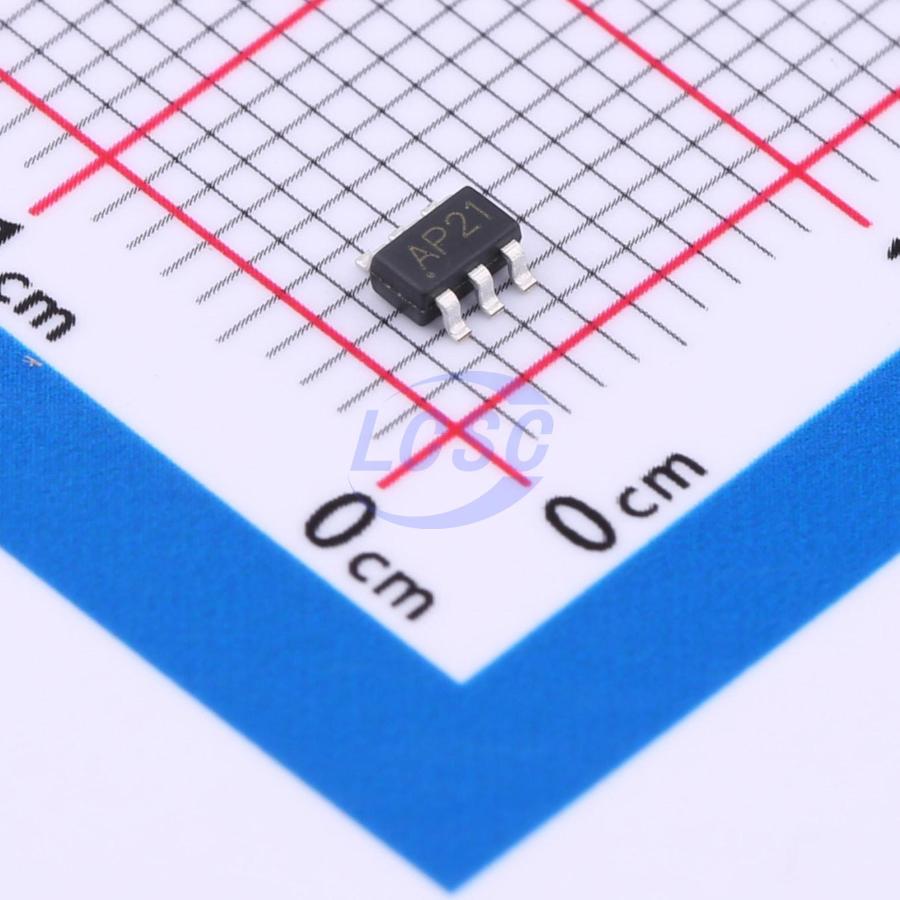

AIP74LVC2G14GB236.TR
Schmitt trigger 1.65V~5.5V 3.9ns@3.3V,50pF 4uA 2 SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
Dual Inverter Schmitt Trigger
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AIP74LVC2G14GB236.TR
- Store part #
- C3294720
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,235 in stock
#C3294720
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.51 | ₹57.55 |
| 50+ | ₹8.89 | ₹444.50 |
| 150+ | ₹7.59 | ₹1,138.50 |
| 500+ | ₹6.62 | ₹3,310.00 |
| 3,000+ | ₹5.83 | ₹17,490.00 |
| 6,000+ | ₹5.44 | ₹32,640.00 |
5 × ₹11.51
₹57.55
excl. GST
₹67.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AIP74LVC2G14GB236.TR
₹57.55 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74LVC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;700mV;450mV;600mV;800mV
- Propagation Delay
- 3.9ns@3.3V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+105℃
- Output Logic Level - High
- 950mV;1.7V;1.9V;2V;3.4V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
The AiP74LVC2G14 provides two inverting buffers with Schmitt-trigger input. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. The inputs can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment. Schmitt-trigger action at the inputs makes the circuit tolerant of slower input rise and fall time. This device is fully specified for partial power-down applications using IOFF. The I_OFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range from 1.65V to 5.5V
- 5V tolerant inputs for interfacing with 5V logic
- ±24mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- Direct interface with TTL levels
- Unlimited rise and fall times
- Input accepts voltages up to 5V
- Specified from -40°C to +105°C
- Packaging information: SOT-23-6/SOT-363
