Wuxi I-core ElecDatasheet (PDF)

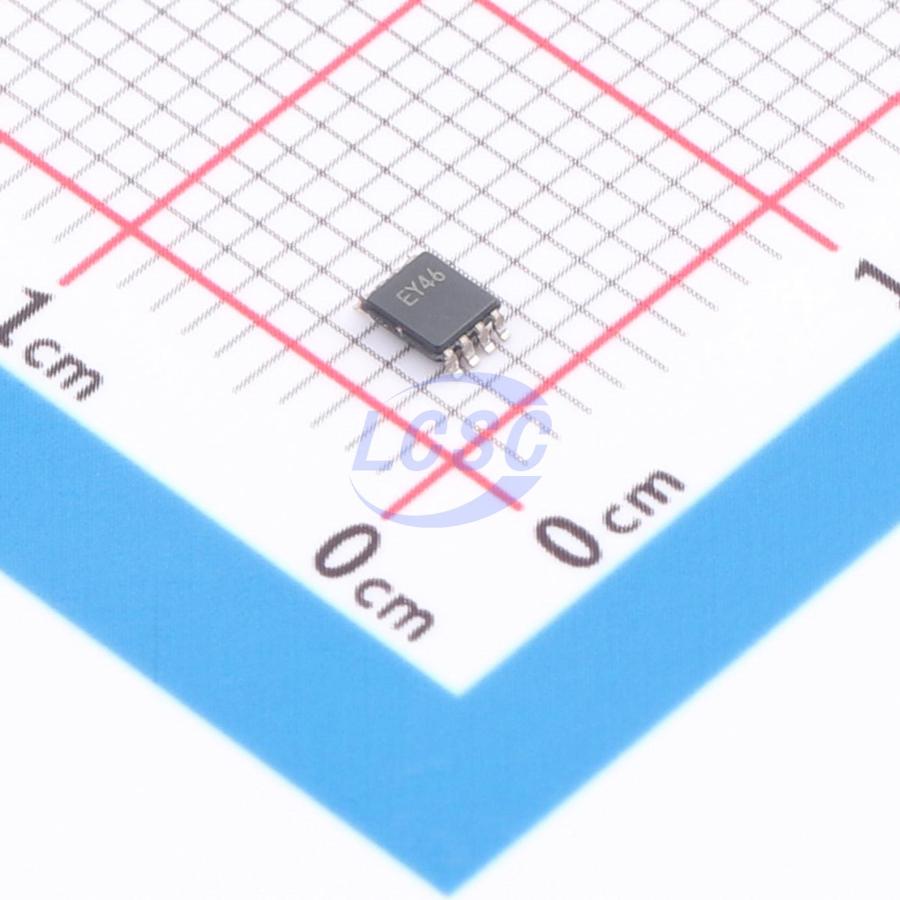

AiP74LVC3G17YA8.TR
Schmitt trigger 1.65V~5.5V 4.3ns@4.5V,50pF 4uA VSSOP-8 Gates and Inverters
VSSOP-8RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP74LVC3G17YA8.TR
- Store part #
- C52121072
- Package / case
- VSSOP-8
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,430 in stock
#C52121072
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.35 | ₹236.75 |
| 50+ | ₹37.45 | ₹1,872.50 |
| 150+ | ₹33.22 | ₹4,983.00 |
| 500+ | ₹27.93 | ₹13,965.00 |
| 3,000+ | ₹25.57 | ₹76,710.00 |
| 6,000+ | ₹24.16 | ₹1,44,960.00 |
5 × ₹47.35
₹236.75
excl. GST
₹279.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP74LVC3G17YA8.TR
₹236.75 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 4.3ns@4.5V,50pF
- Output Logic Level - Low
- 450mV;550mV
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 1;3
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
AiP74LVC3G17 provides three non-inverting buffers with Schmitt-trigger inputs. The inputs can be driven by 3.3V or 5V devices, allowing the device to be used in mixed 3.3V and 5V environments.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Inputs accept voltages up to 5.5V
- ±24mA output drive capability at 3.0V
- High-impedance state when VCC = 0V
- Operating temperature range: -40℃ to +125℃
- Package options: TSSOP8, VSSOP8, XSON8
