Wuxi I-core Elec

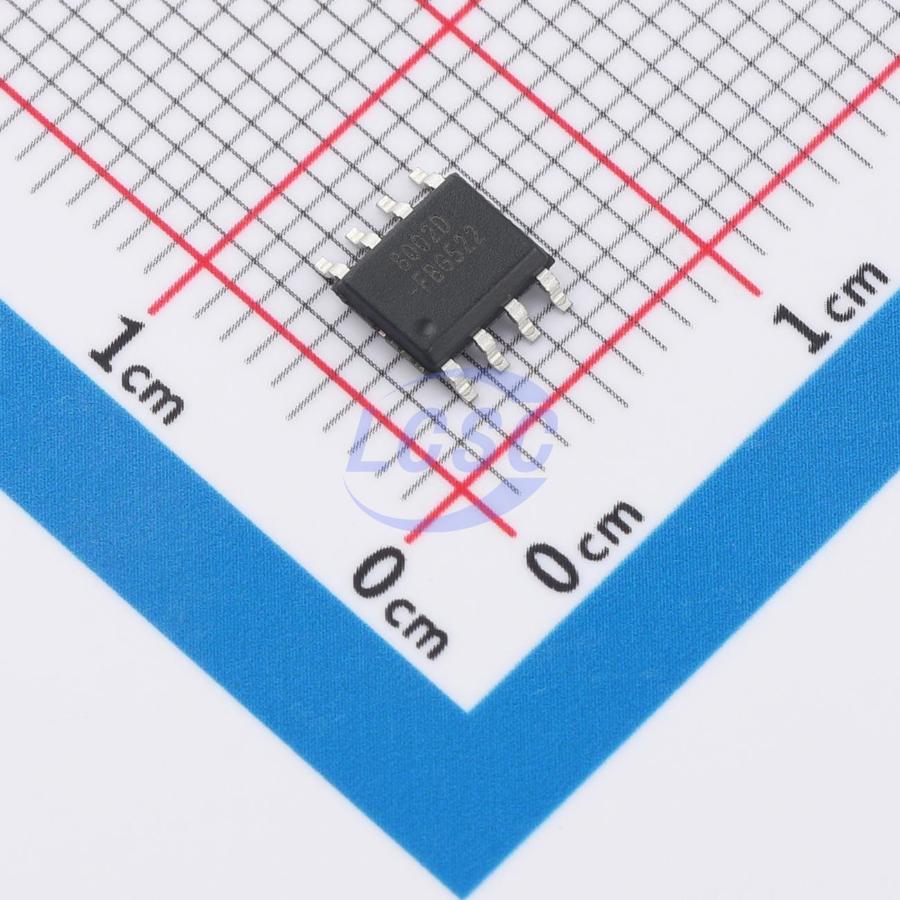

AiP8002DSA8.TR

1.8V~5.5V 8mA 1-Channel Class AB SOP-8 Audio Amplifiers

SOP-8RoHSActive

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP8002DSA8.TR
Store part #: C50338956
Package / case: SOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,860 in stock

#C50338956

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹7.09	₹70.90
100+	₹5.64	₹564.00
300+	₹4.91	₹1,473.00
1,000+	₹4.37	₹4,370.00
5,000+	₹3.93	₹19,650.00
10,000+	₹3.70	₹37,000.00

Quantity (min 10, multiples of 10)

10 × ₹7.09

₹70.90

excl. GST

₹83.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

AiP8002DSA8.TR

₹70.90 for 10 + GST

Specifications

Voltage - Supply: 1.8V~5.5V
Quiescent Current: 8mA
Total Harmonic Distortion + Noise (THD+N): 0.2%
Features: Enable/shutdown function
Operating Temperature: -40℃~+85℃
Number of Inputs: 1 Single-Ended Input
Speaker Channels: 1-Channel
Output Power: 2Wx1@4Ω;2.3Wx1@4Ω
Class: Class AB
Power Supply Rejection Ratio (PSRR): 60dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.1 g

Overview

AiP8002D is a mono BTL audio power amplifier capable of delivering 2W of continuous output power into a 4Ω load at less than 1% THD from a 5V supply. The device integrates a shutdown pin; when driven high, the chip enters shutdown mode with a typical quiescent current of 0.5μA.

Key features

Supply voltage range: 1.8V~5.5V
Output power: 2W (typical) @1% THD+N, 4Ω load
Simple peripheral circuitry, no output coupling capacitors or equalization network required
Unity-gain stable
Gain externally configurable
Package: DIP8/SOP8/MSOP8/ESOP8
