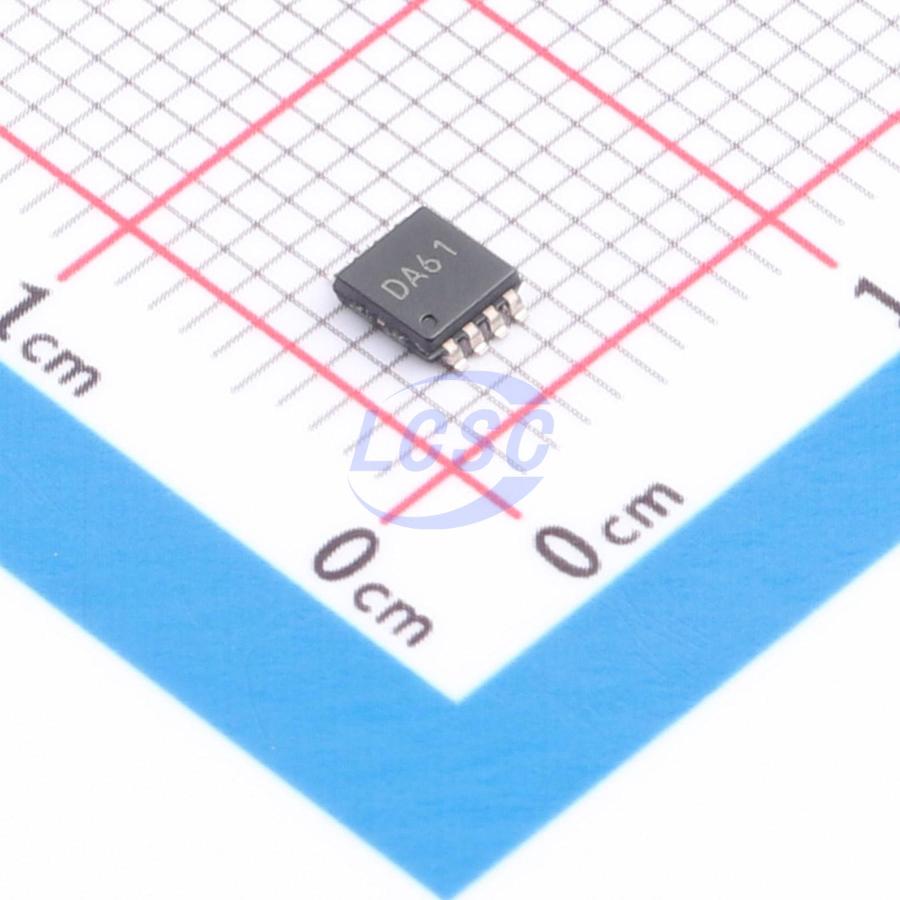

Wuxi I-core Elec

AiPTS0102TA8.TR

50Mbps 2 TSSOP-8 Translators, Level Shifters

TSSOP-8RoHSActive

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiPTS0102TA8.TR
Store part #: C52121085
Package / case: TSSOP-8
Category: Translators, Level Shifters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,820 in stock

#C52121085

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹31.96	₹159.80
50+	₹25.28	₹1,264.00
150+	₹22.42	₹3,363.00
500+	₹18.85	₹9,425.00
3,000+	₹17.27	₹51,810.00
6,000+	₹16.31	₹97,860.00

Quantity (min 5, multiples of 5)

5 × ₹31.96

₹159.80

excl. GST

₹188.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AiPTS0102TA8.TR

₹159.80 for 5 + GST

Specifications

output type: Tri-State
Operating Temperature: -40℃~+125℃
Data Rate: 50Mbps
Channel Type: Bidirectional
Features: Automatic direction detection;Output enable high-impedance;Integrated pull-up resistor
Voltage - Supply: 2.3V~5.5V;1.65V~3.6V
Number of Circuits: 2

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.104 g

Overview

AiPTS010X is an X-bit dual-supply translating transceiver with automatic direction sensing, enabling bidirectional voltage level translation. The device features two 1-bit input/output ports (A and B), an output enable input (OE), and two supply pins (VCC(A) and VCC(B)). VCC(A) can be powered at any voltage between 1.65V and 3.6V. VCC(B) can be powered at any voltage between 2.3V and 5.5V. This flexibility makes the device suitable for translation between any voltage node (1.8V, 2.5V, 3.3V, and 5.0V). Pin A and OE are referenced to VCC(A), while pin B is referenced to VCC(B). When the OE pin is LOW, the outputs are placed in a high-impedance off state. The device is fully specified for partial power-down applications using IOFF. The IOFF circuit disables the outputs, preventing damaging backflow current when the device is powered down.

Key features

Wide supply voltage range: VCC(A): 1.65V to 3.6V; VCC(B): 2.3V to 5.5V
Maximum data rate: Push-pull mode: 50 Mbps; Open-drain mode: 2 Mbps
IOFF circuitry supports partial power-down mode operation
Inputs accept voltages up to 5.5V
Operating temperature range: -40℃ to +125℃
Package options: AiPTS0101: SOT23-6/SOT363; AiPTS0102: TSSOP8/VSSOP8/XSON8; AiPTS0103: QFN10; AiPTS0104: SOP14/TSSOP14/VQFN14; AiPTS0108: TSSOP20
