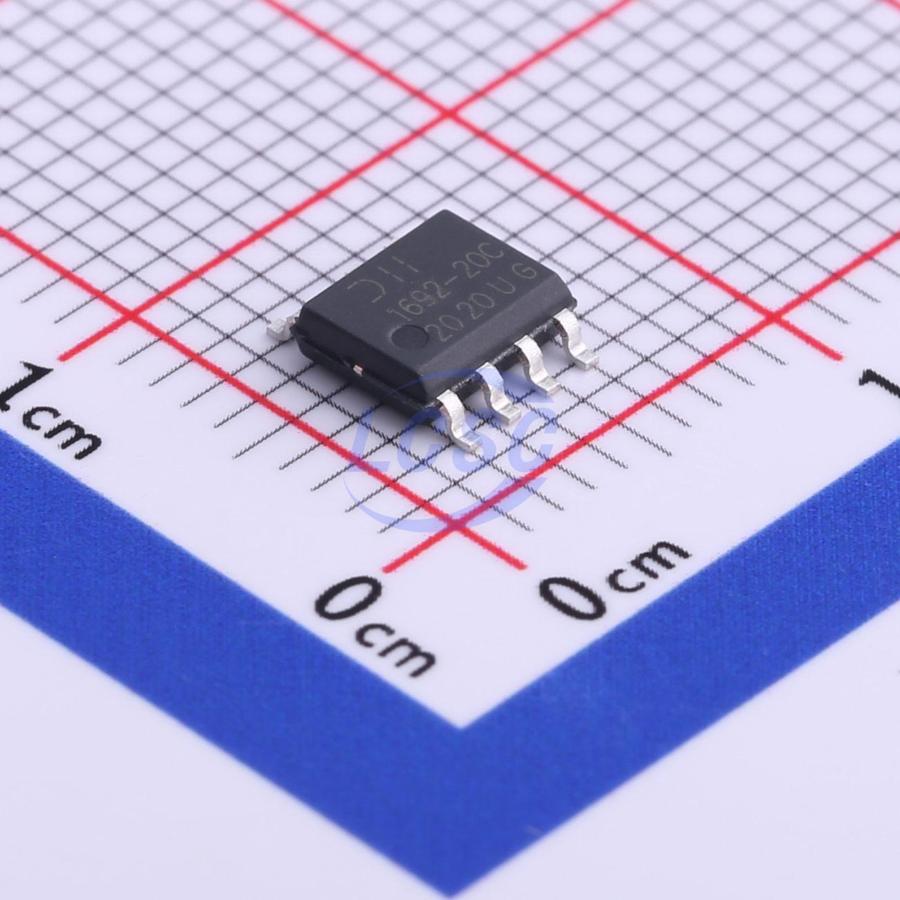

AL1692-20CS7-13
LED Driver IC 1 Output AC DC Offline Switcher Flyback Buck Boost Triac Dimming 2A SO-7
DIMMABLE LED CONTROLLER/DRIVER
- Manufacturer
- DIODES
- Manufacturer part #
- AL1692-20CS7-13
- Store part #
- C526359
- Package / case
- SO-7
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,985 in stock
#C526359
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.64 | ₹168.20 |
| 50+ | ₹26.08 | ₹1,304.00 |
| 150+ | ₹22.83 | ₹3,424.50 |
| 500+ | ₹18.80 | ₹9,400.00 |
| 2,500+ | ₹17.00 | ₹42,500.00 |
| 4,000+ | ₹15.92 | ₹63,680.00 |
5 × ₹33.64
₹168.20
excl. GST
₹198.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AL1692-20CS7-13
₹168.20 for 5 + GST
Specifications
- Frequency - Switching
- 4kHz
- Dimming
- TRIAC
- Voltage - Input(AC)
- 120VAC~230VAC
- Number of Channels
- 1
- Type
- AC-DC
- Switch tube (built-in/external)
- Built-in
- Operating Temperature
- -40℃~+105℃
- Output Current
- 2A
- Features
- Over Voltage Protection;Short Circuit Protection;LED open-circuit protection;Over-Temperature Protection (OTP)
- Topology
- Flyback;Buck;Boost
- Constant Current Accuracy
- 3%
- Voltage - Input(DC)
- 8.5V~20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.179 g
Overview
The DiODEsM AL1692 is a high performance, high power factor, high efficiency, and high current precision buck-boost and flyback dimmable LED controller/drivers for triac dimmable LED lamp applications. The AL1692 topology provides an accurate output current over wide line and load regulation. The wide switching frequency operates at boundary conduction mode (BCM) to ease EMI/EMC design and testing, to meet the latest regulatory standards. The AL1692 controller with external MOSFET can support higher output power application, up to 25w. The AL1692-20C LED driver integrates with 600V/2A MOSFET. The AL1692 platform solutions can cover both 120Vac and 230Vac applications. The AL1692 has the built-in thermal fold-back protection trigger point to automatically reduce output current. Other protection features enhance LED lighting system's safety and reliability. The AL1692 dimming curve is compliant with the NEMA SSL6 standard. The AL1692 applies to a wide range of dimmers, including leading edge and trailing edge dimmer, to achieve deep dimming down to 1%. The AL1692 controller is available in SO-8 package. The AL1692-20C is available in SO-7 package.
Applications
- Mains dimmable LED lamps
- Offline LED power supply drivers
Key features
- Tight Current Sense Tolerance: ±3%
- Low Startup Current: 100μA Typical
- Low Operation Current: 210μA (Switching Frequency at 4kHz)
- Single Winding Inductor
- Wide Range of Dimmer Compatibility
- For Controller Power Can Drive up to 25W
- For MOSFET Options: 600V/2A
- NEMA SSL6 Dimming Curve Compliant
- Internal Protections
- Undervoltage Lockout (UVLO)
- Leading-Edge Blanking (LEB)
- Cycle-by-Cycle Overcurrent Protection (OCP)
- Output Open/Short Protection (OVP/OSP)
- Thermal Foldback Protection (TFP)
- Overtime/Protection (OTP)
- SO-8 (Controller) and SO-7 (With MOSFET) Packages
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
