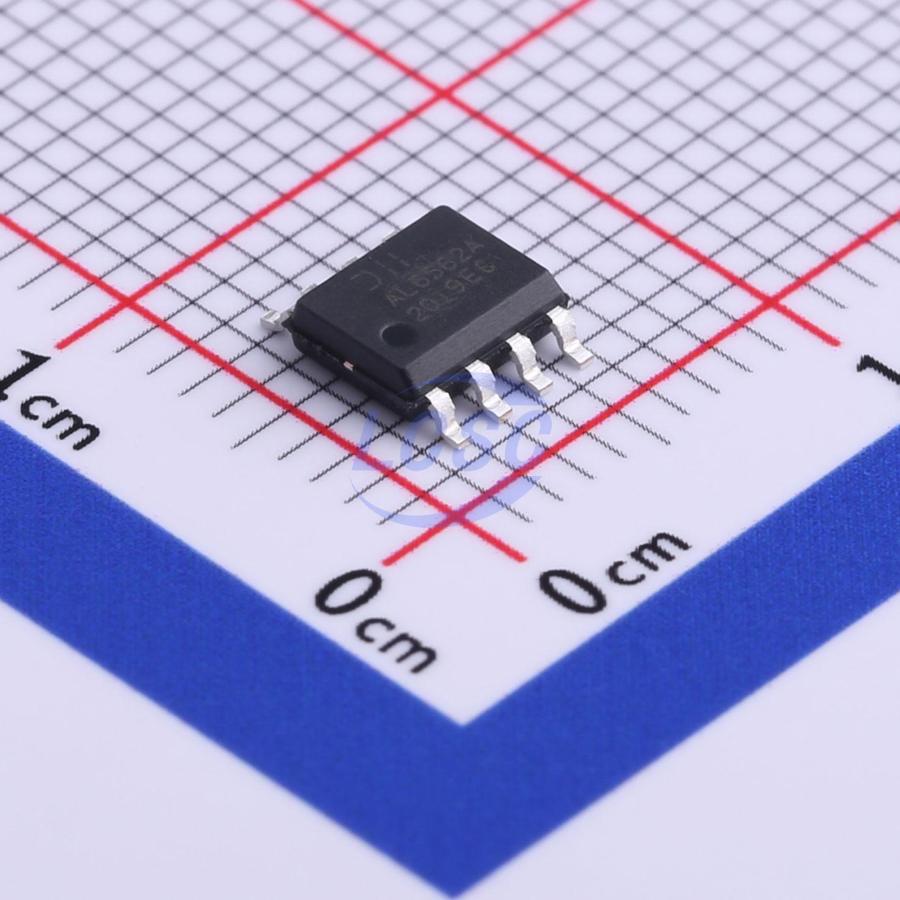

AL6562AS-13
1 AC-DC 10.3V~22V SO-8 LED Drivers RoHS
Transition Mode PFC LED Controller
- Manufacturer
- DIODES
- Manufacturer part #
- AL6562AS-13
- Store part #
- C500799
- Package / case
- SO-8
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,235 in stock
#C500799
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.69 | ₹83.69 |
| 10+ | ₹67.66 | ₹676.60 |
| 30+ | ₹59.85 | ₹1,795.50 |
| 100+ | ₹51.82 | ₹5,182.00 |
| 500+ | ₹47.27 | ₹23,635.00 |
| 1,000+ | ₹44.66 | ₹44,660.00 |
1 × ₹83.69
₹83.69
excl. GST
₹98.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AL6562AS-13
₹83.69 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Number of Channels
- 1
- Type
- AC-DC
- Features
- Over Voltage Protection
- Switch tube (built-in/external)
- External
- Output Voltage
- 900mV;2.5V
- Topology
- Boost
- Voltage - Input(DC)
- 10.3V~22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
The AL6562A is a current mode Power Factor Correction Controller and is designed for operating in Transition Mode. With a superior linear performance multiplier, it ensures the device operates over a wide input voltage range with superior THD (Total Harmonics Distortion). The output voltage is controlled by means of an error amplifier and a precise (1% @ TJ = +25°C) internal voltage reference. The AL6562A is designed to meet stringent energy - saving standards with low start - up current, and can operate with low current consumption when entering stand - by mode. OVP circuitry increases system robustness, allowing the device to withstand transient caused at start - up and during load - disconnects.
Applications
- Electronic Single - Stage LED Driver
- PFC pre - regulators for:
- IEC61000 - 3 - 2 compliant SMPS (Flat TV, monitors, desktop PC, games)
- HI - END AC - DC adapter/charger up to 350W
- Electronic ballast Entry level server & web server
Key features
- Single Stage PFC Controller
- Transition Mode Operation
- Low Start - Up, Operating and Quiescent Currents
- Internal Start - Up Timer
- Enable/Disable Function on INV Input
- Totem Pole, Push - Pull Output Drive
- Adjustable Output Overvoltage Protection
- SO - 8 : Available in “Green” Molding Compound (No Br, Sb)
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
