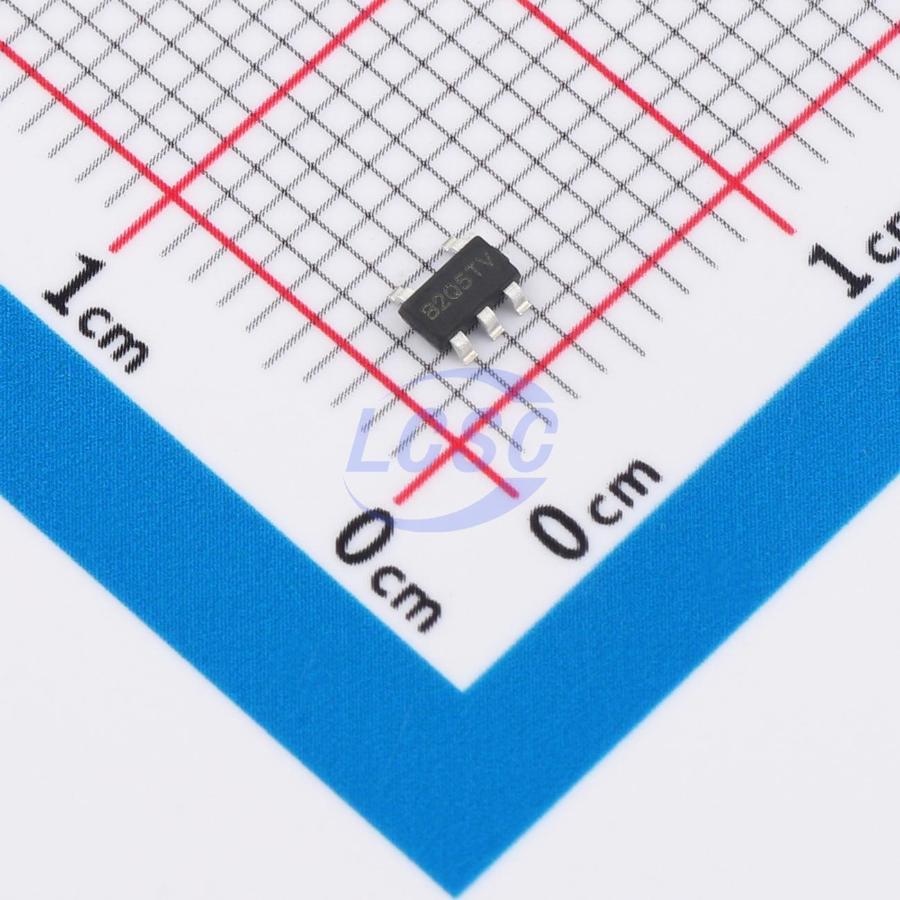

AL8841QWT-7
1MHz 1 DC-DC 1A 4.5V~40V TSOT-25 LED Drivers RoHS
- Manufacturer
- DIODES
- Manufacturer part #
- AL8841QWT-7
- Store part #
- C29102936
- Package / case
- TSOT-25
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,603 in stock
#C29102936
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.61 | ₹89.61 |
| 10+ | ₹71.38 | ₹713.80 |
| 30+ | ₹62.27 | ₹1,868.10 |
| 100+ | ₹53.16 | ₹5,316.00 |
| 500+ | ₹47.73 | ₹23,865.00 |
| 1,000+ | ₹44.92 | ₹44,920.00 |
1 × ₹89.61
₹89.61
excl. GST
₹105.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AL8841QWT-7
₹89.61 for 1 + GST
Specifications
- Frequency - Switching
- 1MHz
- Dimming
- Analog;PWM
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Operating Temperature
- -40℃~+125℃
- Output Current
- 1A
- Features
- Built-in soft-start;Short Circuit Protection;LED open-circuit protection;Over-Temperature Protection (OTP)
- Topology
- Buck
- Voltage - Input(DC)
- 4.5V~40V
- Constant Current Accuracy
- 4%
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.106 g
Overview
AL8841Q is a hysteretic mode DC-DC buck converter designed to efficiently drive single or multiple series-connected LEDs from a supply voltage higher than the LED voltage. The device operates from a 4.5V to 40V input supply and provides an externally adjustable output current of up to 1A in the TSOT25 package and up to 1.5A in the MSOP-8EP package. Depending on the supply voltage and external components, the converter can deliver output power of up to 60W. The AL8841Q integrates a power switch and a high-side output current sensing circuit, which uses an external resistor to set the nominal average output current. Dimming can be achieved by applying an external control signal to the CTRL pin. The CTRL pin accepts either a DC voltage signal or a PWM signal. Soft-start time is adjustable via an external capacitor connected from the CTRL pin to ground. Applying 0.3V or lower to the CTRL pin will turn off the power switch. The AL8841Q is available in a thermally enhanced MSOP-8EP package and a compact TSOT25 package.
Applications
- Automotive daytime running lights
- Automotive front and rear fog lights
- Automotive turn/brake lights
- Automotive dimmable interior lights
Key features
- AEC-Q100 (Grade 1) qualified
- Wide input voltage range: 4.5V to 40V
- Output current up to 1A (TSOT25) and 1.5A (MSOP-8EP)
- Internal 40V NDMOS switch
- Typical output current accuracy of 4%
- Single-pin switching and dimming control via DC voltage or PWM signal
- Recommended analog dimming range: 10% to 100%
- Soft-start
- High efficiency (up to 97%)
- LED short-circuit protection
- Inherent LED open-circuit protection
- Over-temperature protection
- Switching frequency up to 1MHz
- Available in MSOP-8EP and TSOT25 packages with green molding compound (Br-free, Sb-free)
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free. "Green" device
- Suitable for automotive applications requiring specific change control; AEC-Q100 qualified, PPAP capable, and manufactured in an IATF16949-certified facility
