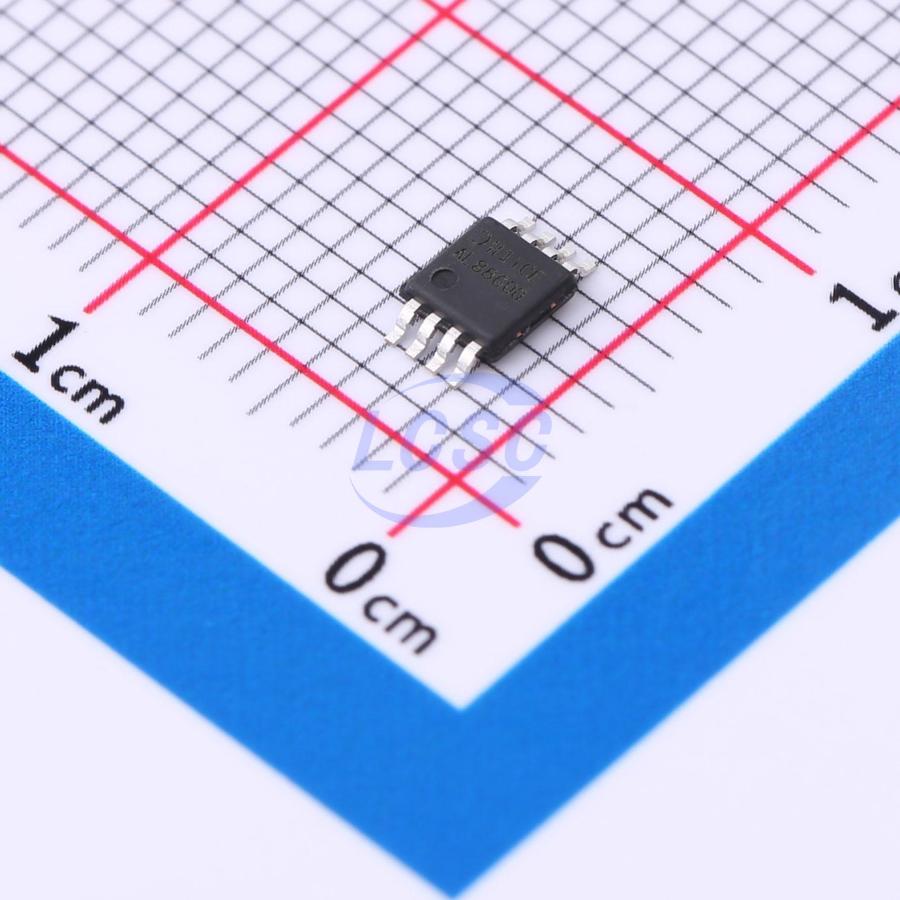

AL8860QMP-13
1MHz 1 DC-DC 1.5A 4.5V~40V MSOP-8-EP LED Drivers RoHS
40V 1.5A BUCK LED DRIVER
- Manufacturer
- DIODES
- Manufacturer part #
- AL8860QMP-13
- Store part #
- C2678649
- Package / case
- MSOP-8-EP
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,482 in stock
#C2678649
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹132.04 | ₹132.04 |
| 10+ | ₹107.71 | ₹1,077.10 |
| 30+ | ₹95.55 | ₹2,866.50 |
| 100+ | ₹83.39 | ₹8,339.00 |
| 500+ | ₹76.23 | ₹38,115.00 |
| 1,000+ | ₹72.54 | ₹72,540.00 |
1 × ₹132.04
₹132.04
excl. GST
₹155.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AL8860QMP-13
₹132.04 for 1 + GST
Specifications
- Frequency - Switching
- 1MHz
- Dimming
- PWM;Analog
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Operating Temperature
- -40℃~+105℃
- Output Current
- 1.5A
- Features
- Built-in soft-start;Short Circuit Protection;LED open-circuit protection;Over-Temperature Protection (OTP)
- Topology
- Buck
- Constant Current Accuracy
- 5%
- Voltage - Input(DC)
- 4.5V~40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.07 g
Overview
The AL8860Q is a hysteresis mode DC- DC step- down LED driver, designed for driving single or multiple series of the connected LEDs efficiently from a voltage source higher than the LED voltage. The device can operate with an input supply voltage from 4.5V to 40V and provide an externally adjustable output current up to 1.5A for MSOP8EP package. Depending upon supply voltage and external components, this converter can provide up to 40W output power. The AL8860Q integrates the power switch and a high- side output current sensing circuit, which uses an external resistor to set the nominal average output current. Dimming can be realized by applying an external control signal to the CTRL pin. The CTRL pin will accept either a DC voltage signal or a PWM signal. The soft- start time can be adjusted by connecting an external capacitor from the CTRL pin to the ground. Applying a voltage of 0.2V or lower to the CTRL pin can turn off the switch and make the device enter into the standby mode with low power consumption. The AL8860Q is qualified to AEC- Q100 Grade 1 and is automotive grade to support PPAPs.
Applications
- Automotive interior LED lamps
- Automotive exterior LED lamps
Key features
- Wide Input Voltage Range: 4.5V to 40V
- Output Current Up to 1.5A
- Internal 40V NDMOS Switch
- Typical 5% Output Current Accuracy
- Single Pin for On/Off and Brightness Control by DC Voltage or PWM Signal
- High Efficiency (>95%)
- LED Short- Circuit Protection
- Inherent LED Open- Circuit Protection
- Overtemperature Shutdown
- Up to 1MHz Switching Frequency
- Pb- Free MSOP- 8EP Package
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Suitable for automotive applications requiring specific change control; this part is AEC- Q100 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
