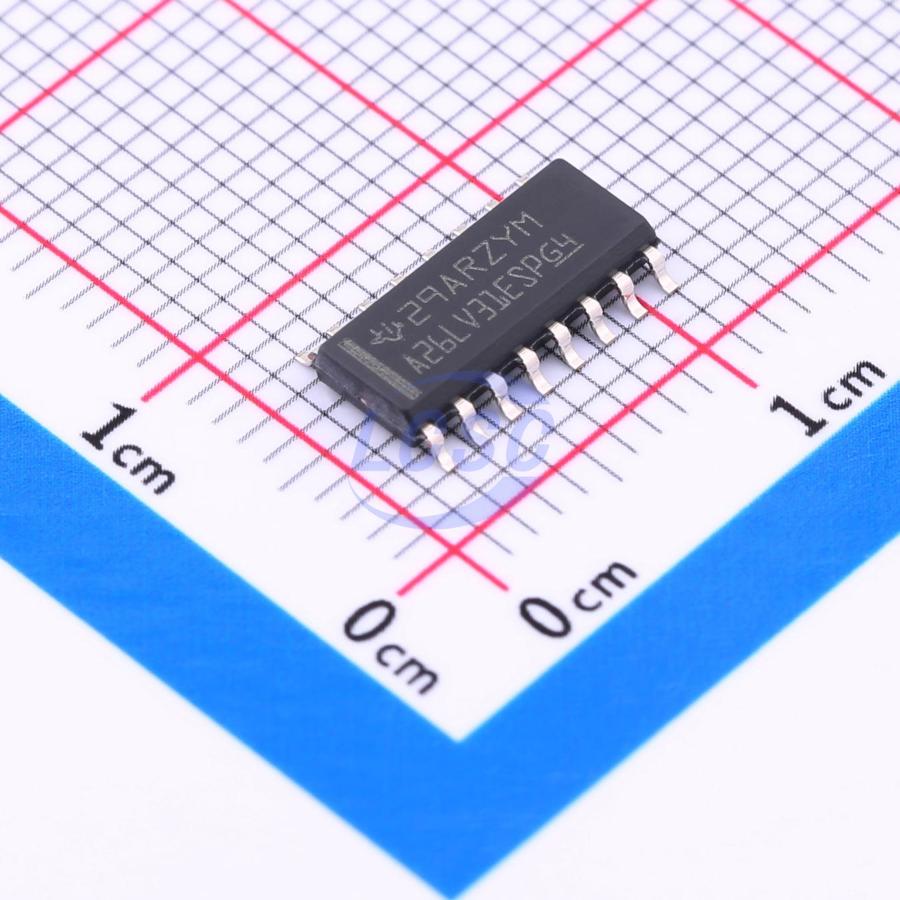

AM26LV31ESDREP

The AM26LV31E is a quadruple differential line driver with 3 - state outputs. This driver has ±15 - kV ESD (HBM and IEC61000 - 4 - 2, Air - Gap Discharge) and ±8 - kV ESD (IEC61000 - 4 - 2, Contact Discharge) protection. This device is designed to meet TIA/EIA - 422 - B and ITU Recommendation V.11 drivers with reduced supply voltage. The device is optimized for balanced - bus transmission at switching rates up to 32 MHz. The outputs have high current capability for driving balanced lines, such as twisted - pair transmission lines, and provide a high impedance in the power - off condition. The AM26LV31ES is characterized for operation from - 55°C to 105°C.

Key features

• Meets or Exceeds Standards TIA/EIA - 422 - B and ITU Recommendation V.11
• Operates From a Single 3.3 - V Power Supply
• ESD Protection for RS422 Bus Pins – ±15 - kV Human - Body Model (HBM)
• ±8 - kV IEC61000 - 4 - 2, Contact Discharge
• ±15 - kV IEC61000 - 4 - 2, Air - Gap Discharge
• Switching Rates up to 32 MHz
• Propagation Delay Time... 8 ns Typ
• Pulse Skew Time... 500 ps Typ
• High Output - Drive Current... ±30 mA
• Controlled Rise and Fall Times... 5 ns Typ
• Differential Output Voltage With 100 - Ω Load... 2.6 V Typ
• Accepts 5 - V Logic Inputs With 3.3 - V Supply
• Ioff Supports Partial - Power - Down Mode Operation
• Driver Output Short - Protection Circuit
• Glitch - Free Power - Up/Power - Down Protection
• Controlled Baseline
• One Assembly/Test Site
• One Fabrication Site
• Available in Extended (- 55°C/105°C) Temperature Range
• Extended Product Life Cycle
• Extended Product - Change Notification
• Product Traceability
