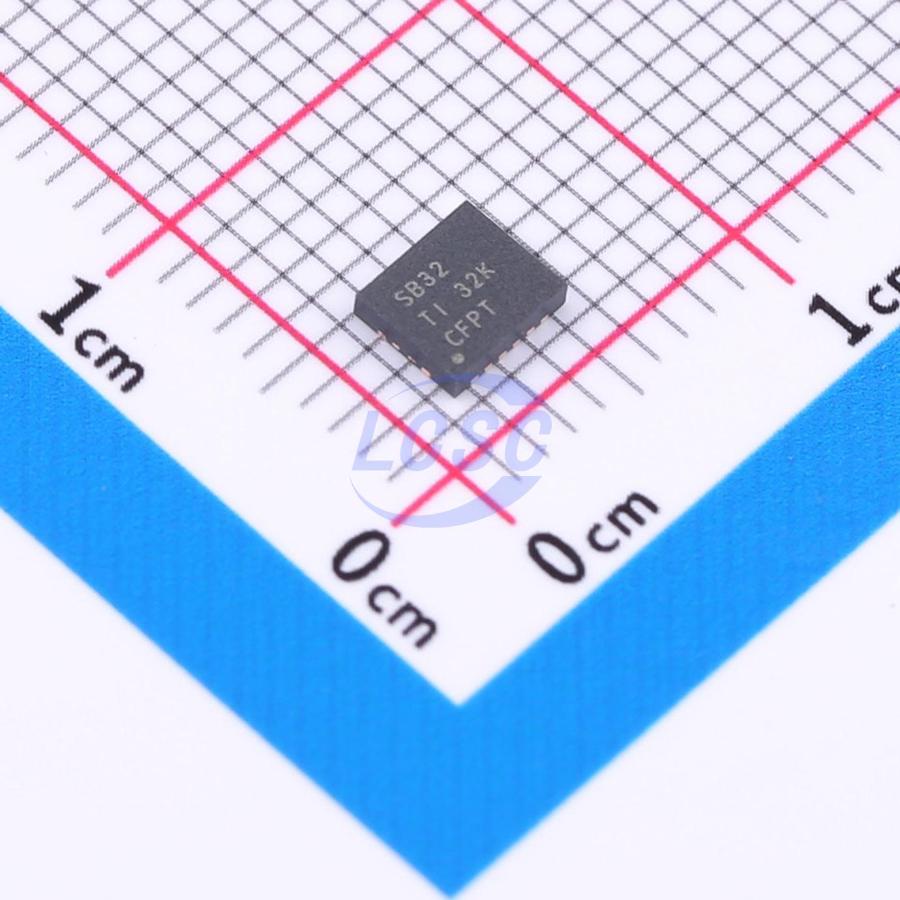

AM26LV32EIRGYR

The AM26LV32E device consists of four differential line receivers with three-state outputs. This device is designed to meet the requirements of TIA/EIA-422-B and ITU Recommendation V.11 drivers with a low supply voltage. This device is optimized for balanced bus transmission at switching rates up to 32 MHz. With three-state outputs, this device can be directly connected to bus-organized systems. The AM26LV32E has a fail-safe circuit that prevents the device from having an unknown voltage signal at the receiver output. In the open-circuit fail-safe mode, a high state is produced at the corresponding output. This device supports local power-down applications using Ioff. The Ioff circuit disables the outputs to prevent damage to the device from reverse current flow when the device is powered down.

Applications

• High-reliability automotive applications
• Configuration control/printing support
• ATM and currency counting machines
• Smart grid
• AC and servo motor drives

Key features

• Meets or exceeds TIA/EIA-422-B and ITU Recommendation V.11 standards
• Single 3.3V supply operation
• Switching frequency up to 32MHz
• ESD protection on RS422 bus pins
• Low power dissipation: 27mW (typical)
• Open-circuit fail-safe
• ±7V common-mode input voltage range with ±200mV sensitivity
• Accepts 5V logic inputs with 3.3V supply (enable input)
• Input hysteresis: 35mV (typical)
• Pin-to-pin compatible with AM26C32 and AM26LS32
• Supports partial power-down mode operation
