PUOLOPDatasheet (PDF)

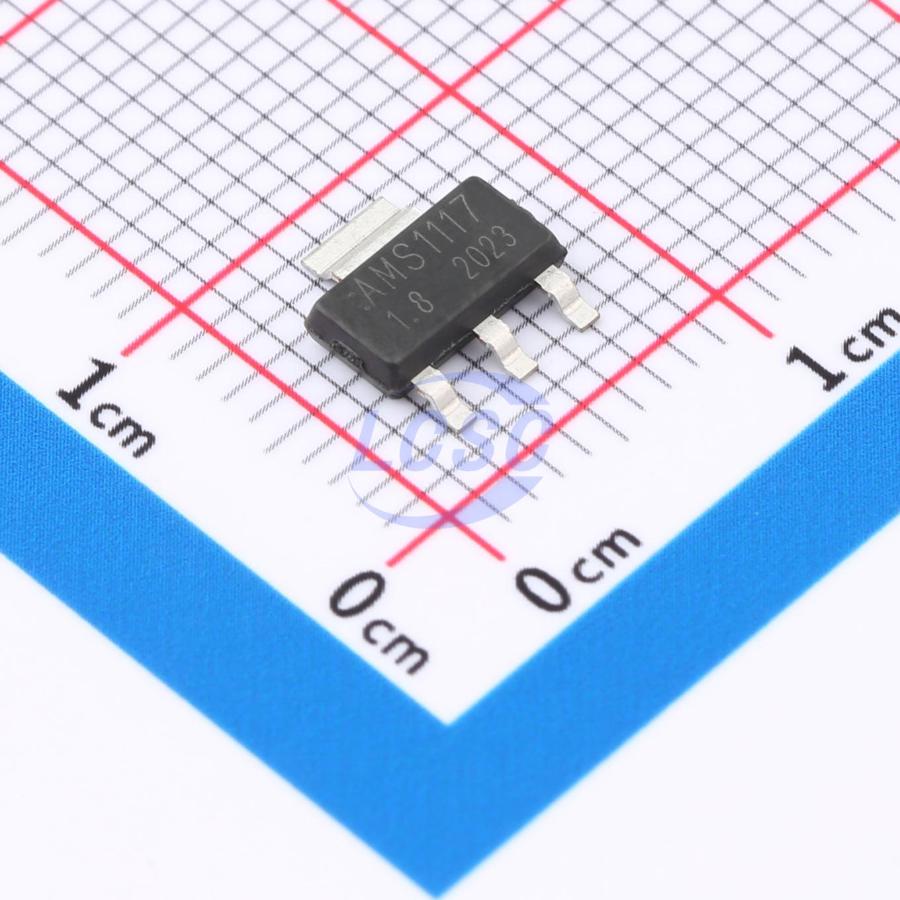

AMS1117-1.8
1.8V Positive Fixed SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-4ROHS CompliantActive
1A Adjustable/Fixed Low Dropout Linear Regulator
- Manufacturer
- PUOLOP
- Manufacturer part #
- AMS1117-1.8
- Store part #
- C351432
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,695 in stock
#C351432
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.44 | ₹62.20 |
| 50+ | ₹9.86 | ₹493.00 |
| 150+ | ₹8.57 | ₹1,285.50 |
| 500+ | ₹7.61 | ₹3,805.00 |
| 2,500+ | ₹6.83 | ₹17,075.00 |
| 4,000+ | ₹6.44 | ₹25,760.00 |
| 8,000+ | ₹6.36 | ₹50,880.00 |
| 20,000+ | ₹6.31 | ₹1,26,200.00 |
5 × ₹12.44
₹62.20
excl. GST
₹73.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AMS1117-1.8
₹62.20 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.225 g
Overview
The AMS1117 is a series of low dropout voltage regulators which can provide up to 1A of output current. The AMS1117 is available in six fixed voltage, 1.2, 1.8, 2.5, 3.3 and 5.0V. Additionally it is also available in adjustable version. On chip precision trimming adjusts the reference/ output voltage to within ±2%. On-chip thermal limiting provides protection against any combination of overload and ambient temperatures that would create excessive junction temperatures. The AMS1117 series is available in SOT-223, TO-252, SOT89 packages. A minimum of 10uF tantalum capacitor is required at the output to improve the transient response and stability.
Applications
- Post Regulator for switching DC/DC Converter
- High Efficiency Linear Regulator
- Battery Chargers
- PC Add on Card
- Motherboard clock supplies
- LCD Monitor
- Set-top Box
Key features
- Low Dropout Voltage
- Load regulation: 0.5% Max
- Optimized for Low Voltage
- On-chip thermal limiting.
- Maximum Input Voltage : 18V
- Adjustable Output Voltage or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V
- Standard SOT-223,TO-252 ,SOT89 Packages
- ESD Rating: HBM 2000V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117-1.8#C351433PUOLOP · SOT-223 | PUOLOP | SOT-223 | 1,520 | ₹11.36 · 1,520 in stock | View |
