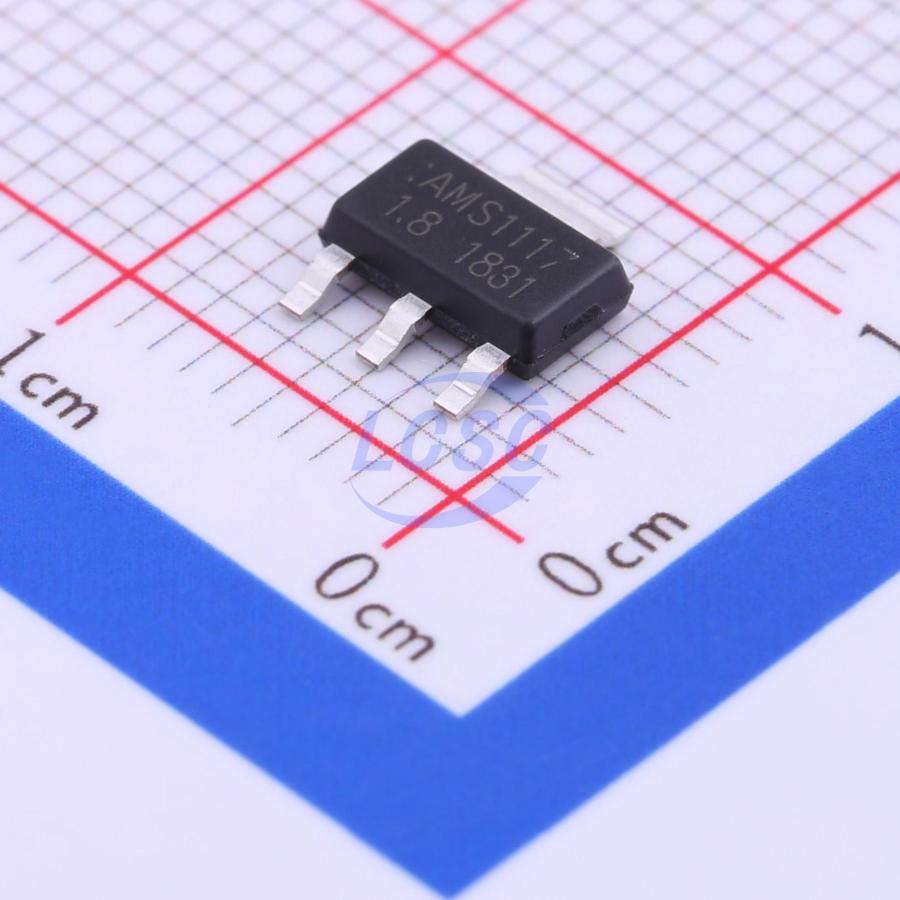

AMS1117-1.8
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223ROHS CompliantActive
IC REG LINEAR 1.8V 1A SOT-223
- Manufacturer
- PUOLOP
- Manufacturer part #
- AMS1117-1.8
- Store part #
- C351433
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,520 in stock
#C351433
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.36 | ₹56.80 |
| 50+ | ₹9.04 | ₹452.00 |
| 150+ | ₹7.86 | ₹1,179.00 |
| 500+ | ₹6.99 | ₹3,495.00 |
| 2,500+ | ₹6.28 | ₹15,700.00 |
| 4,000+ | ₹5.94 | ₹23,760.00 |
| 8,000+ | ₹5.86 | ₹46,880.00 |
| 20,000+ | ₹5.82 | ₹1,16,400.00 |
5 × ₹11.36
₹56.80
excl. GST
₹67.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AMS1117-1.8
₹56.80 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Ta)
- Supply Current (Iq)
- 12mA
- Output Configuration
- Positive
- Operating Voltage
- 10V
- Output Current
- 1A
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.225 g
Overview
AMS1117 is a low dropout linear regulator with 1A output current.
Applications
- Computer motherboards, graphics cards, LCD monitors & LCD TVs
- DVD decoder boards
- ADSL equipment
- Post-stage voltage regulation in switching power supplies
Key features
- Available in adjustable 3-terminal output and fixed voltage versions (fixed voltages include 1.2V, 1.8V, 2.5V, 3.3V, 5V, etc.; other voltage specifications available upon custom order)
- Maximum output current: 1A
- Output voltage accuracy up to ±2%
- Stable operating voltage up to 12V
- Line regulation: 0.2%
- Load regulation: 0.4%
- Ambient temperature: TA range -20°C ~ 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117-1.8#C351432PUOLOP · SOT-223-4 | PUOLOP | SOT-223-4 | 2,695 | ₹12.44 · 2,695 in stock | View |
