Advanced Monolithic SystemsDatasheet (PDF)

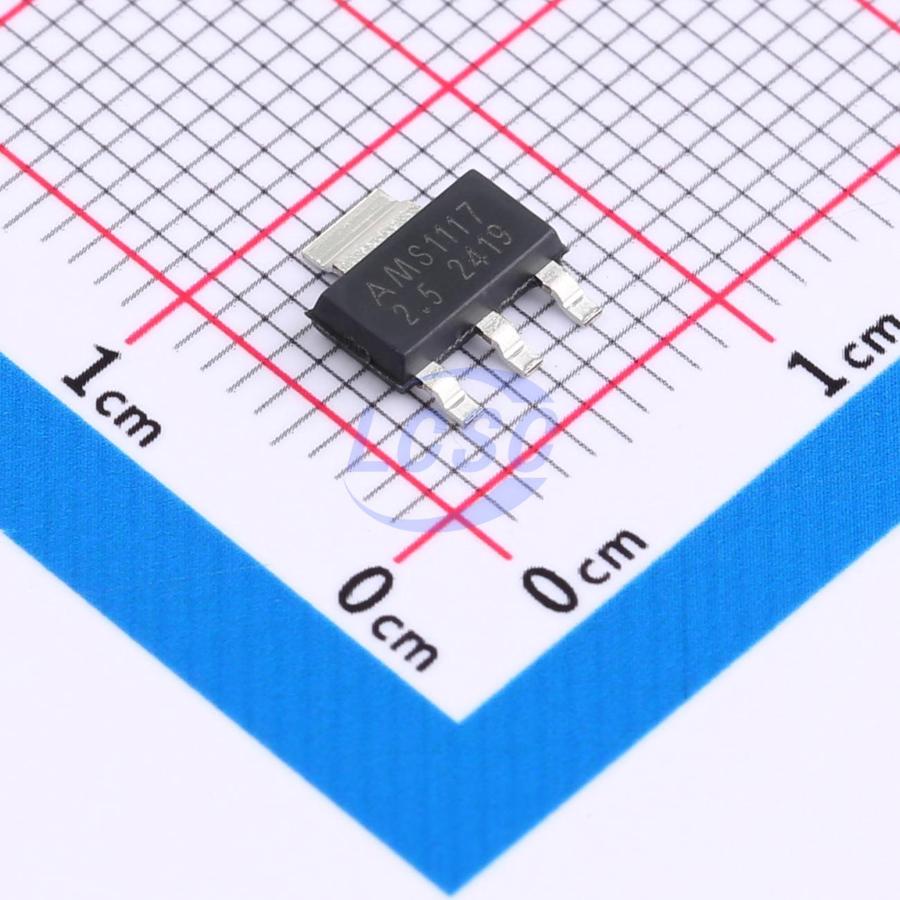

AMS1117-2.5
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223ROHS CompliantActive
IC REG LINEAR 2.5V 1A SOT-223
- Manufacturer
- Advanced Monolithic Systems
- Manufacturer part #
- AMS1117-2.5
- Store part #
- C12087
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,970 in stock
#C12087
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.57 | ₹157.85 |
| 50+ | ₹25.12 | ₹1,256.00 |
| 150+ | ₹22.36 | ₹3,354.00 |
| 500+ | ₹18.91 | ₹9,455.00 |
| 2,500+ | ₹16.15 | ₹40,375.00 |
| 5,000+ | ₹15.23 | ₹76,150.00 |
5 × ₹31.57
₹157.85
excl. GST
₹186.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117-2.5
₹157.85 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.236 g
Overview
The AMS1117 series of adjustable and fixed voltage regulators are designed to provide 1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.3V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1.5%. Current limit is also trimmed, minimizing the stress under overload conditions on both the regulator and power source circuitry. The AMS1117 devices are pin compatible with other three-terminal SCSI regulators and are offered in the low profile surface mount SOT-223 package, in the 8L SOIC package and in the TO-252 (DPAK) plastic package.
Applications
- High Efficiency Linear Regulators
- Post Regulators for Switching Supplies
- 5V to 3.3V Linear Regulator
- Battery Chargers
- Active SCSI Terminators
- Power Management for Notebook
- Battery Powered Instrumentation
Key features
- Three Terminal Adjustable or Fixed Voltages: 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V
- Output Current of 1A
- Operates Down to 1V Dropout
- Line Regulation: 0.2% Max.
- Load Regulation: 0.4% Max.
- SOT-223, TO-252 and SO-8 package available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1117AG-25-AA3-A-R#C71123UTC · SOT-223-4 | UTC | SOT-223-4 | 1,570 | ₹9.58 · 1,570 in stock | View |
 | AMS1117-2.5#C347221UMW · SOT-223 | UMW | SOT-223 | 44,520 | ₹6.52 · 44,520 in stock | View |
 | LD1117-2.5#C347228UMW · SOT-223 | UMW | SOT-223 | 11,110 | ₹6.69 · 11,110 in stock | View |
 | LM1117S-2.5#C262791HTC · SOT-223 | HTC | SOT-223 | 2,270 | ₹26.13 · 2,270 in stock | View |
 | LM1117GS-2.5#C411820HTC · SOT-223-3L | HTC | SOT-223-3L | 2,300 | ₹21.75 · 2,300 in stock | View |
