UTCDatasheet (PDF)

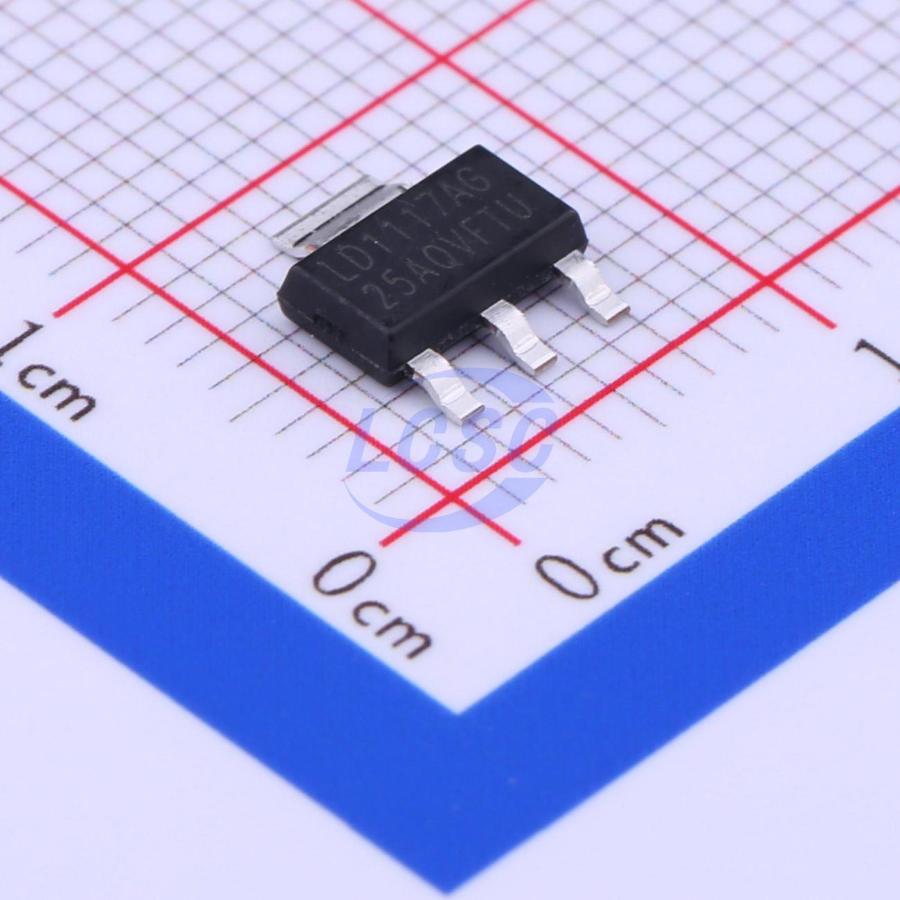

LD1117AG-25-AA3-A-R
2.5V Positive Fixed SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-4ROHS CompliantActive
Low-dropout fixed and adjustable positive voltage regulators
- Manufacturer
- UTC
- Manufacturer part #
- LD1117AG-25-AA3-A-R
- Store part #
- C71123
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,570 in stock
#C71123
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.58 | ₹95.80 |
| 100+ | ₹7.62 | ₹762.00 |
| 300+ | ₹6.64 | ₹1,992.00 |
| 2,500+ | ₹5.91 | ₹14,775.00 |
| 5,000+ | ₹5.33 | ₹26,650.00 |
| 10,000+ | ₹5.04 | ₹50,400.00 |
10 × ₹9.58
₹95.80
excl. GST
₹113.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117AG-25-AA3-A-R
₹95.80 for 10 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.307 g
Overview
The UTC LD1117/A is a low dropout, 3-terminal positive voltage regulator designed to provide output current up to 800mA/1A. There are adjustable version (V_REF = 1.25V) and various fixed versions.
Key features
- Low dropout voltage
- Suitable for SCSI-2 active termination if VOUT set to 2.85V
- Output current up to 0.8A for 1117 and 1.0A for 1117A
- Built-in current limit and over temperature protection
- Low current consumption
- Support MLCC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117-2.5#C347221UMW · SOT-223 | UMW | SOT-223 | 44,520 | ₹6.52 · 44,520 in stock | View |
 | LD1117-2.5#C347228UMW · SOT-223 | UMW | SOT-223 | 11,110 | ₹6.69 · 11,110 in stock | View |
 | AMS1117-2.5-CN#C45369269ChipNobo · SOT-223 | ChipNobo | SOT-223 | 2,250 | ₹5.37 · 2,250 in stock | View |
 | JTD1117C(1A)-2.5V#C42443436JTD · SOT-223 | JTD | SOT-223 | 2,420 | ₹4.86 · 2,420 in stock | View |
 | LM1117-2.5#C55544532R+O · SOT-223 | R+O | SOT-223 | 4,650 | ₹8.93 · 4,650 in stock | View |
