MSKSEMIDatasheet (PDF)

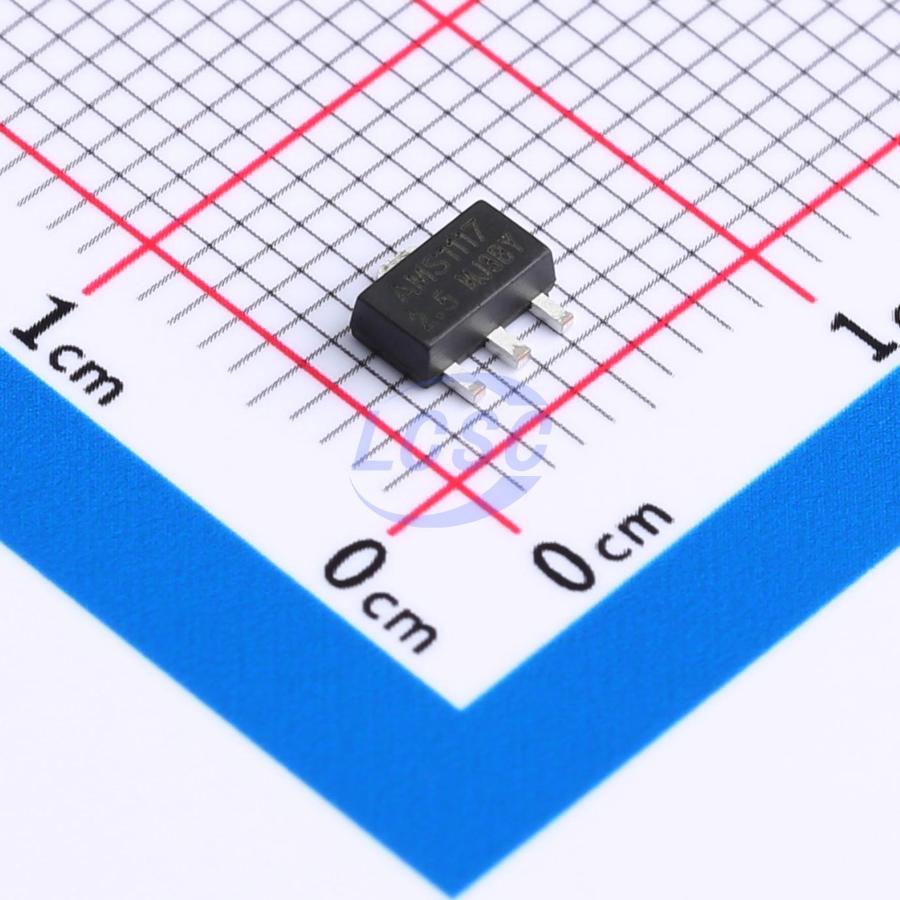

AMS1117-2.5V
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-89
SOT-89RoHSActive
Low Dropout (LDO) Three-Terminal Voltage Regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- AMS1117-2.5V
- Store part #
- C5240694
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,540 in stock
#C5240694
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.66 | ₹96.60 |
| 100+ | ₹7.77 | ₹777.00 |
| 300+ | ₹6.81 | ₹2,043.00 |
| 1,000+ | ₹5.86 | ₹5,860.00 |
| 5,000+ | ₹5.29 | ₹26,450.00 |
| 10,000+ | ₹5.01 | ₹50,100.00 |
10 × ₹9.66
₹96.60
excl. GST
₹113.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
AMS1117-2.5V
₹96.60 for 10 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Ta)
- Supply Current (Iq)
- 12mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.153 g
Overview
AMS1117-xxx is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A load current. AMS1117-xxx features a very low standby current 2mA compared to 5mA of competitor. Other than a fixed version, Vout = 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V, AMS1117-xxx has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors. AMS1117-xxx offers thermal shutdown function, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%. AMS1117-xxx is available in SOT-223, TO-252 and SOT89 power package.
Applications
- Power Management for Computer Mother Board, Graphic Card
- LCD Monitor and LCD TV
- DVD Decode Board
- ADSL Modem
- Post Regulators for Switching Supplies
Key features
- Output current is 1A
- Range of operation input voltage: 15V
- Line regulation: 0.03%/V (typ.)
- Standby current: 2mA (typ.)
- Load regulation: 0.2%/A (typ.)
- Environment Temperature: -40°C - 85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MS1117S-2.5V#C47020986MSKSEMI · SOT-89 | MSKSEMI | SOT-89 | On request | ₹9.31 · 0 in stock | View | |
