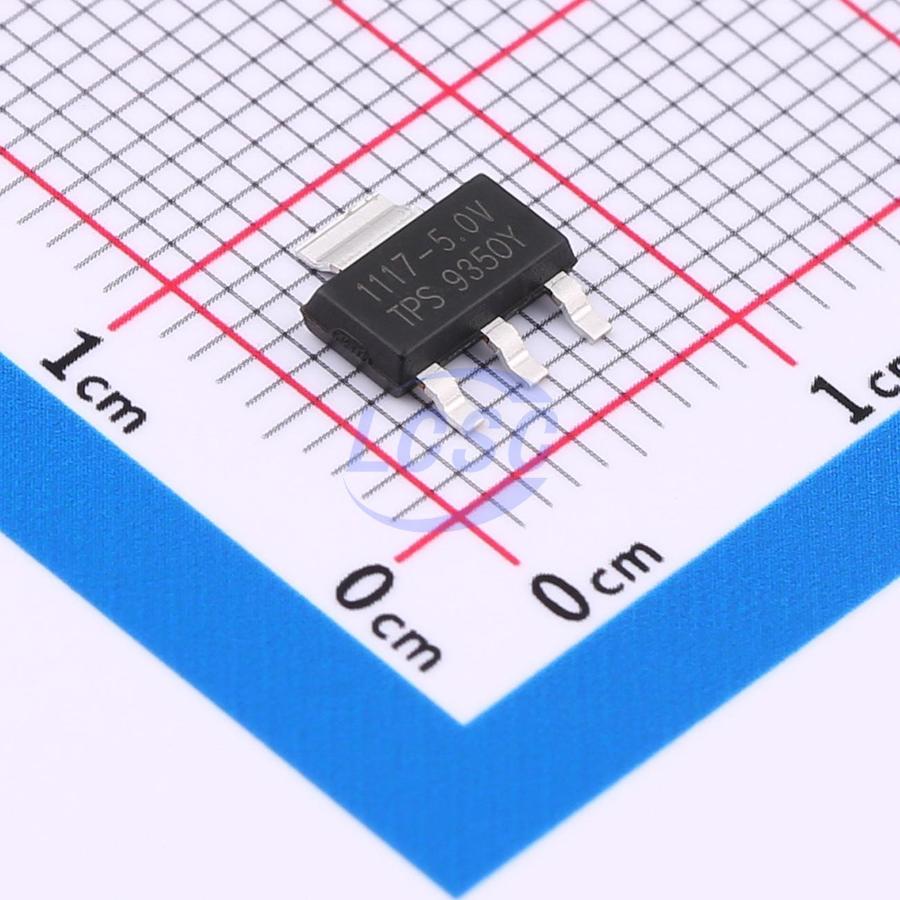

AMS1117-5.0V
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223RoHSActive
1A LOW DROPOUT LINEAR REGULATOR
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AMS1117-5.0V
- Store part #
- C46473010
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,540 in stock
#C46473010
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.09 | ₹60.90 |
| 100+ | ₹4.83 | ₹483.00 |
| 300+ | ₹4.19 | ₹1,257.00 |
| 1,000+ | ₹3.72 | ₹3,720.00 |
| 4,000+ | ₹3.35 | ₹13,400.00 |
| 8,000+ | ₹3.15 | ₹25,200.00 |
10 × ₹6.09
₹60.90
excl. GST
₹71.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AMS1117-5.0V
₹60.90 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -50℃~+140℃
- Supply Current (Iq)
- 4mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 12V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.182 g
Overview
Applications
- High Efficiency Linear Regulators
- Post Regulator for Switching DC/DC Converter
- Power Management for M/B and Graphic Card
- 2.85V Model for SCSI-2 Active Termination
- Battery Charger
- LCD Monitor and LCD TV
- DVD Decode Board
- ADSL Modem
Key features
- Output Current of 1A Maximum
- Three-Terminal Adjustable or Fixed Outputs
- Maximum Input Voltage: 18V
- Fast Transient Response
- Current Limit, Safe Operating and Thermal Shutdown Protection
- Line Regulation: 0.2%
- Load Regulation: 0.4%
- Environment Temperature: -50°C - +140°C
- Available in SOT223-3 and TO-252, SOT89-3 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1117-5.0#C18212702TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 8,410 | ₹6.05 · 8,410 in stock | View |
 | AMS1117-5.0#C18212701TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,560 | ₹5.29 · 2,560 in stock | View |
 | TPTLV1117-50IDCYR#C52146077TECH PUBLIC · SOT-223-3 | TECH PUBLIC | SOT-223-3 | 3,880 | ₹6.38 · 3,880 in stock | View |
 | TP1117-5.0Y3#C18212700TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 3,260 | ₹6.62 · 3,260 in stock | View |
 | TPSPX1117M3-L-5-0#C52146081TECH PUBLIC · SOT-223-3 | TECH PUBLIC | SOT-223-3 | 3,110 | ₹6.38 · 3,110 in stock | View |
