DIODES

AP130-33RG-7

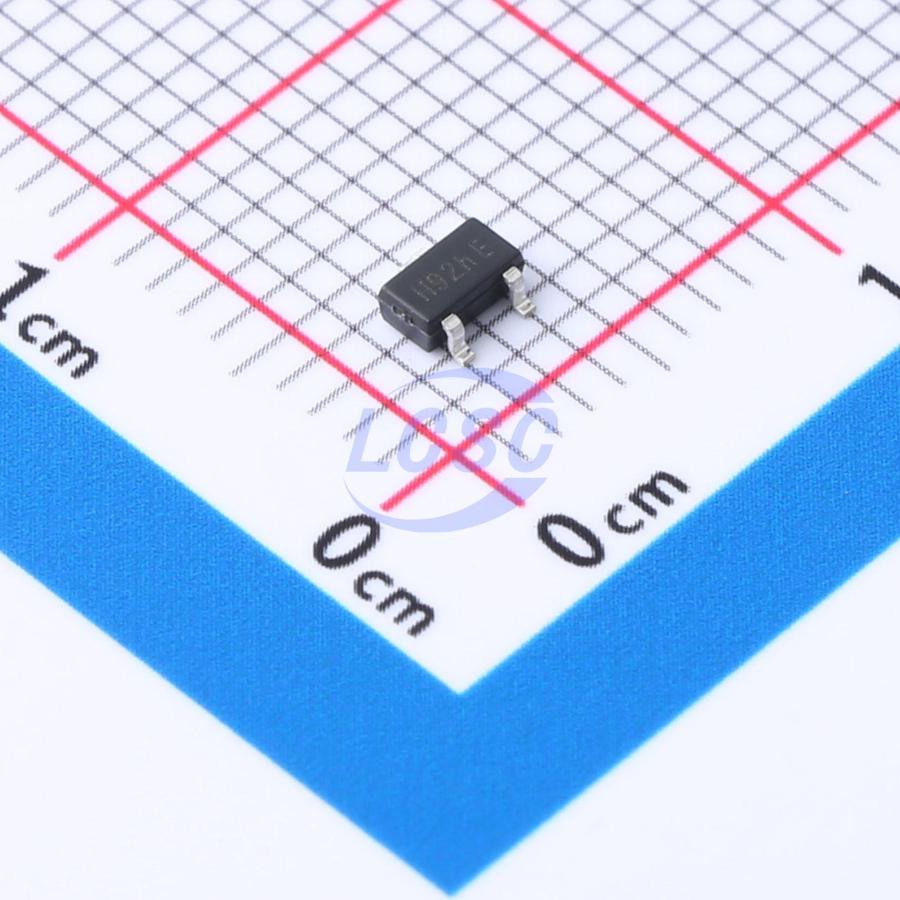

3.3V Positive Fixed SC-59R Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SC-59RROHS3 CompliantActive

300mA Low Dropout (LDO) Linear Regulator

Manufacturer: DIODES
Manufacturer part #: AP130-33RG-7
Store part #: C156319
Package / case: SC-59R
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C156319

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹23.55	₹117.75
50+	₹18.69	₹934.50
150+	₹16.61	₹2,491.50
500+	₹14.01	₹7,005.00
3,000+	₹12.86	₹38,580.00
6,000+	₹12.17	₹73,020.00

Quantity (min 5, multiples of 5)

5 × ₹23.55

₹117.75

excl. GST

₹138.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP130-33RG-7

₹117.75 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 50uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Features: Over Current Protection;Thermal shutdown;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.06 g

Overview

The AP130 is a 300mA, fixed output voltage, low dropout linear regulator. The device includes pass element, error amplifier, band-gap, current-limit and thermal shutdown circuitry. The characteristics of low dropout voltage and less quiescent current make it good for some critical current application, for example, some battery powered devices. The typical quiescent current is approximately 50μA from zero to maximum load. Due to internal flexible design, results in extensively fixed output voltage versions and make it convenient to use for applications. Built-in current-limit and thermal-shutdown functions prevent any fault condition from IC damage.

Applications

Battery Powered Device
CD-ROM, DVD, and LAN Card
PC Peripheral
Wireless Communication

Key features

Input Voltage Range: 2.7V to 5.5V
Dropout Voltage 400mV at 300mA Output Current
Guaranteed 300mA Output Current
Internal RON = 1.5Ω PMOS
Draws No Base Current
Low Quiescent Current 50μA
Output Voltage: 1.5V/1.8V/2.0V/2.5V/2.8V/3.0V/3.3V/3.5V; Accuracy 2%
Fast Transient Response
Good Load Regulation
Current Limit and Thermal Shutdown Protection
Short Circuit Current Fold-Back
Lead Free Packages: SC59, SC59R, SOT89-3L, and SOT89R-3L
SC59, SC59R, SOT23, SOT89-3L, and SOT89R-3L: Available in “Green” Molding Compound (No Br, Sb)
Lead Free Finish/ RoHS Compliant
