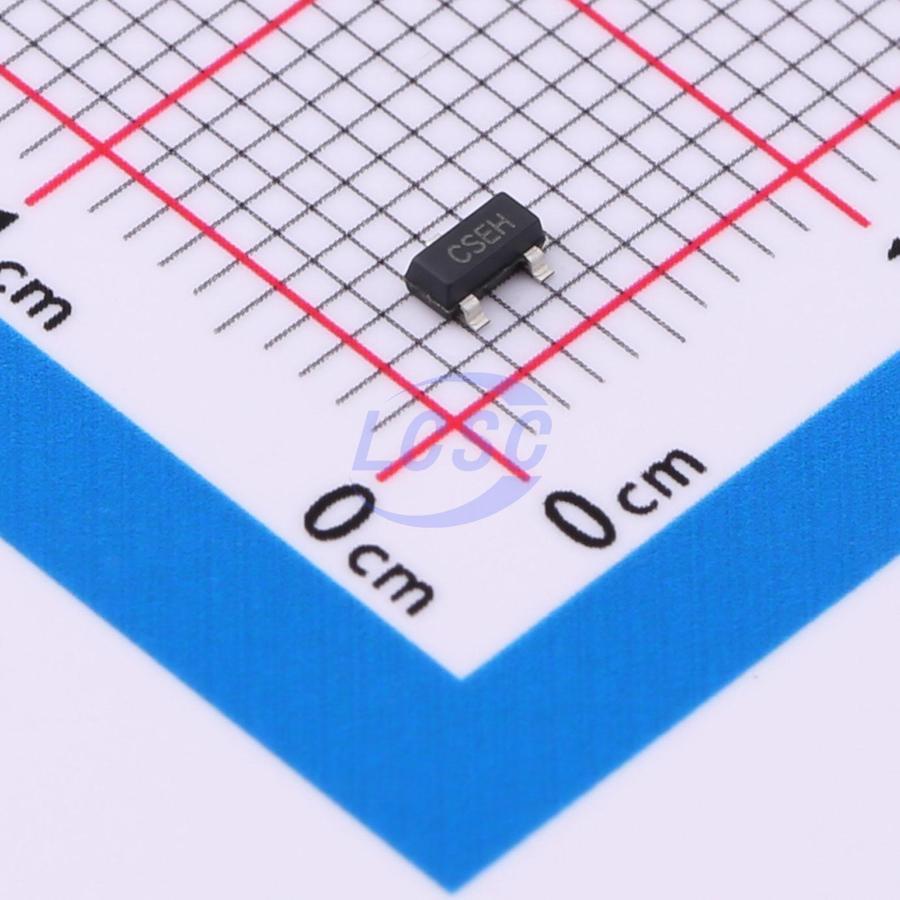

FLD0503A-3.3YSOT23G/TR
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23ROHS CompliantActive
500nA lQ, 300mA Low-Dropout Linear Regulator
- Manufacturer
- Full-Way
- Manufacturer part #
- FLD0503A-3.3YSOT23G/TR
- Store part #
- C41370610
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,830 in stock
#C41370610
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.76 | ₹47.60 |
| 100+ | ₹3.82 | ₹382.00 |
| 300+ | ₹3.33 | ₹999.00 |
| 3,000+ | ₹2.98 | ₹8,940.00 |
| 6,000+ | ₹2.70 | ₹16,200.00 |
| 9,000+ | ₹2.55 | ₹22,950.00 |
10 × ₹4.76
₹47.60
excl. GST
₹56.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FLD0503A-3.3YSOT23G/TR
₹47.60 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+100℃
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
The FLD0503A ultra-low quiescent current regulator features low dropout voltage and low current in the standby mode. With less than 500nA quiescent current at no load, the FLD0503A is ideally suited for standby microcontrol-unit systems, especially for always-on applications like portable, and other battery operated systems. The FLD0503A retains all of the features that are common to low dropout regulators including a low dropout PMOS pass device, short circuit protection, and thermal shutdown. The FLD0503A has a 6V maximum operating voltage limit, a 0 °C to 100 °C operating temperature range, and ± 2% output voltage tolerance over the entire output current, input voltage, and temperature range. The FLD0503A is available in SOT23 surface mount packages.
Applications
- Portable, Battery Powered Equipment
- Ultra Low Power Microcontroller
- Notebook computers
Key features
- VIN Range up to 6V
- Output Voltage Tolerances of ±2% Over the Temperature Range
- Output Current of 300mA, Supports 450mA peak Output
- Ultar Low Quiescent Current (IQ = 500nA)
- Dropout Voltage Typically 400mV at IOUT = 300mA
- Internal Thermal Overload Protection
- Internal Short-Circuit Current Limit
- Ceramic Capacitor Stable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FLD6206-3.3YSOT233G/TR#C49425001Full-Way · SOT-23 | Full-Way | SOT-23 | 2,970 | ₹31.79 · 2,970 in stock | View |
