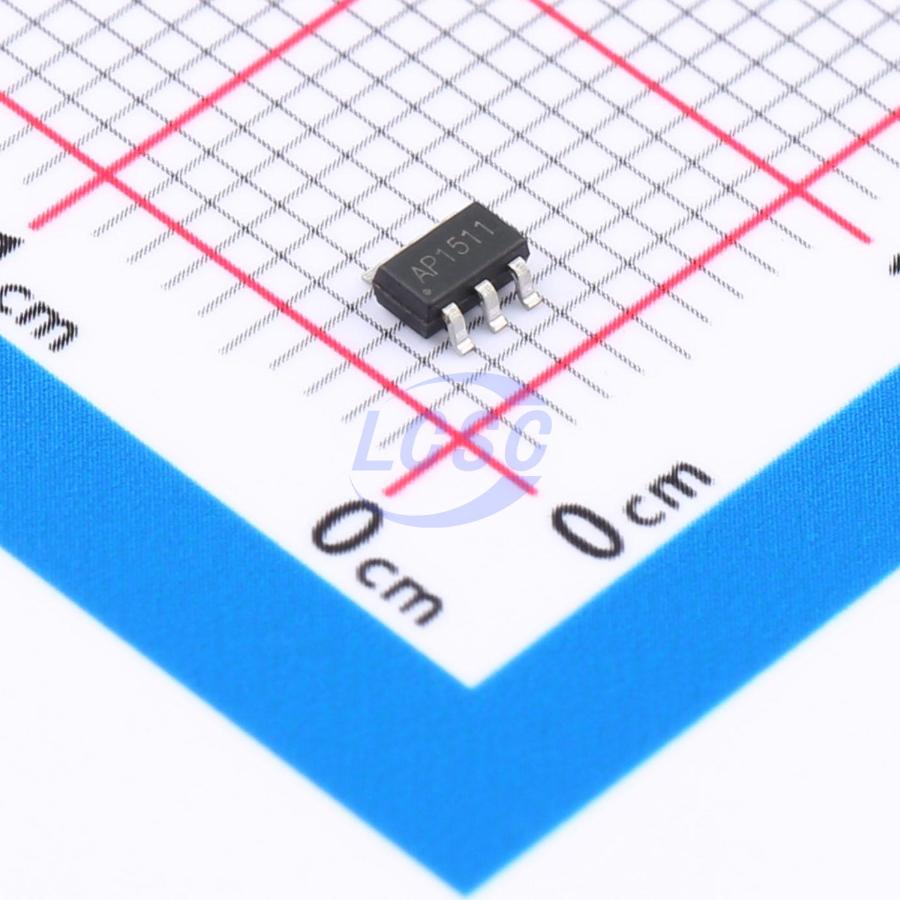

AP1511
SOT-23-6 Motor Drivers, Controllers
Motor Driver IC
- Manufacturer
- GR
- Manufacturer part #
- AP1511
- Store part #
- C19631830
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,930 in stock
#C19631830
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.83 | ₹64.15 |
| 50+ | ₹10.24 | ₹512.00 |
| 150+ | ₹8.93 | ₹1,339.50 |
| 500+ | ₹7.95 | ₹3,975.00 |
| 3,000+ | ₹7.18 | ₹21,540.00 |
| 6,000+ | ₹6.79 | ₹40,740.00 |
5 × ₹12.83
₹64.15
excl. GST
₹75.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP1511
₹64.15 for 5 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 1
- Technology
- Yes
- Interface
- Serial
- Operating Temperature
- -20℃~+60℃
- Control Voltage
- 1.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
The AP1511 series is a driver IC specifically designed for IR-Cut Removable (ICR) applications, used to switch infrared cut filters. The AP1511 series features a low saturation voltage bidirectional H-bridge driver circuit with built-in protection diodes to suppress the feedback current generated by the ICR, as well as protection against ESD damage. The bidirectional H-bridge driver circuit in the AP1511 series has a relatively low internal resistance; the current required by the ICR module is determined by its coil impedance. Taking a 5V supply voltage as an example, when the load draws 200mA, the H-bridge driver circuit of the AP1511 series produces a voltage drop of 0.85V. The AP1511 series uses single-wire control and provides a One-Shot operation function.
Applications
- Dedicated driver IC for IR-Cut Removable (ICR)
Key features
- Low standby current: typical 10uA @ VDD=4.5V
- Input voltage range: 1.5V~5.5V
- Low saturation voltage: 0.85V @ 200mA, VDD=5V
- Single input control
- Package: SOT26
