AP1511B

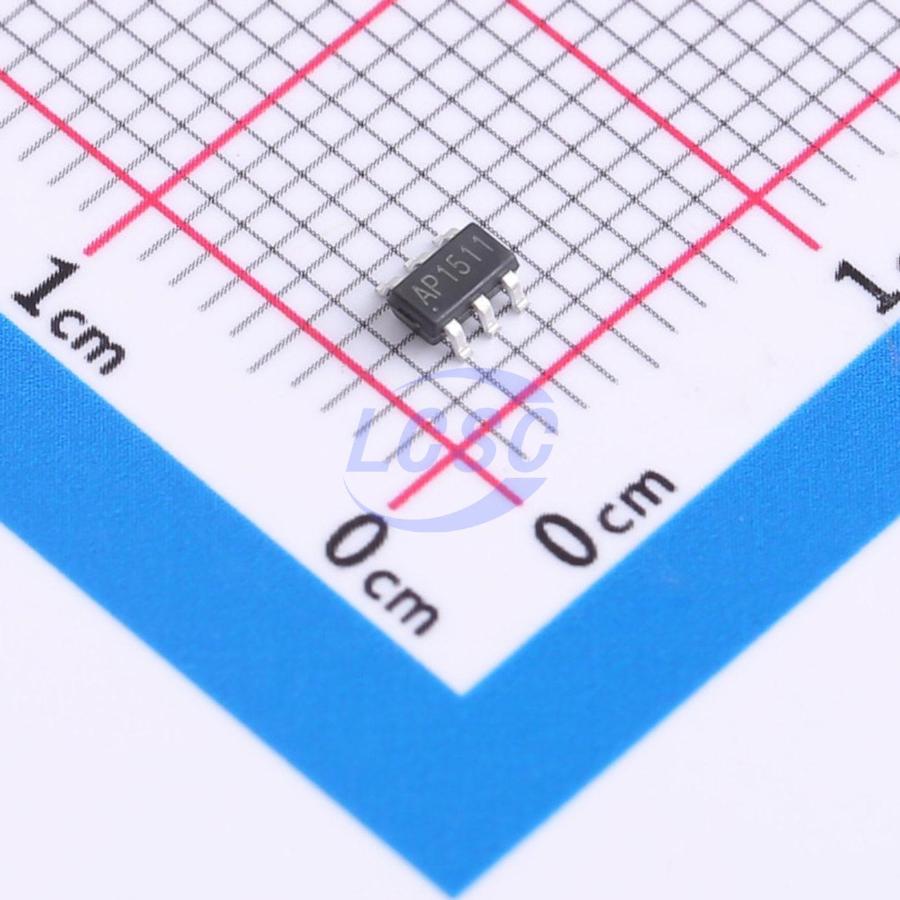

1.5V~5.5V SOT-26-6 Motor Drivers, Controllers RoHS
ICR motor driver IC
- Manufacturer
- Slkor
- Manufacturer part #
- AP1511B
- Store part #
- C33962541
- Package / case
- SOT-26-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,780 in stock
#C33962541
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.80 | ₹54.00 |
| 50+ | ₹8.63 | ₹431.50 |
| 150+ | ₹7.54 | ₹1,131.00 |
| 500+ | ₹6.73 | ₹3,365.00 |
| 3,000+ | ₹6.09 | ₹18,270.00 |
| 6,000+ | ₹5.76 | ₹34,560.00 |
5 × ₹10.80
₹54.00
excl. GST
₹63.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP1511B
₹54.00 for 5 + GST
Specifications
- Number of H-bridges
- 1
- Technology
- Yes
- Voltage - Supply
- 1.5V~5.5V
- Operating Temperature
- -20℃~+60℃
- Supply Current (Iq)
- 14uA
- Output Current
- 200mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
AP1511B is a driver IC specifically designed for IR-Cut Removable (ICR) applications, used to switch infrared cut filters. It features a low saturation voltage bidirectional H-bridge driver circuit with built-in protection diodes to dissipate the feedback current generated by the ICR, and to prevent ESD damage. The bidirectional H-bridge driver circuit has a relatively low internal resistance; the current required by the ICR module is determined by its coil impedance. Taking a supply voltage of 5V as an example, when the load draws 200mA, the H-bridge driver circuit within the AP1511B produces a voltage drop of 0.85V. The AP1511B uses single-wire control and provides a One-Shot operation function.
Applications
- Dedicated driver IC for IR-Cut Removable (ICR)
Key features
- Low standby current: typical 10uA @VDD = 4.5V
- Input voltage range: 1.5V~5.5V
- Low saturation voltage: 0.85V @200mA, VDD = 5V
- Single input control
- Package: SOT26
