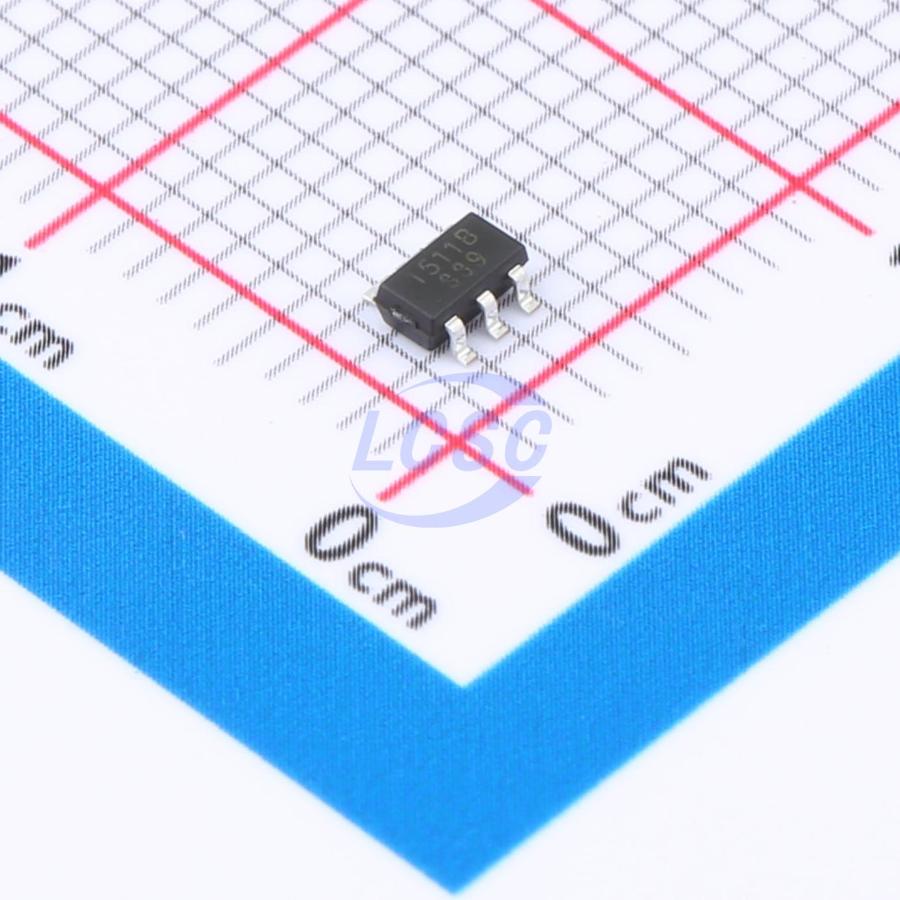

AP1511B-MS
SOT-23-6 Motor Drivers, Controllers
DC brushed motor driver device
- Manufacturer
- MSKSEMI
- Manufacturer part #
- AP1511B-MS
- Store part #
- C19272816
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,475 in stock
#C19272816
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.38 | ₹71.90 |
| 50+ | ₹11.26 | ₹563.00 |
| 150+ | ₹9.70 | ₹1,455.00 |
| 500+ | ₹8.52 | ₹4,260.00 |
| 3,000+ | ₹7.58 | ₹22,740.00 |
| 6,000+ | ₹7.12 | ₹42,720.00 |
5 × ₹14.38
₹71.90
excl. GST
₹84.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP1511B-MS
₹71.90 for 5 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection;Motor stall protection;Current sensing/regulation function;Active braking function;Soft-start;Soft switching
- Technology
- Yes
- Operating Temperature
- -40℃~+150℃
- Output Current
- 1.2A
- Peak Current
- 2.5A
- RDS(on)
- 550mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
AP1511B-MS is an integrated motor driver solution for security electronics, smart hardware, and other low-voltage or battery-powered motion control applications. The device is capable of driving one brushed DC motor, featuring an internal charge pump to generate the required gate drive voltage and an H-bridge driver composed of four power NMOS transistors, with integrated forward/reverse motor control functionality. The AP1511B-MS supports a maximum operating voltage of 7.5V, continuous current of 1.2A, and peak current of 2.5A. It also integrates protection features including over-temperature protection and undervoltage lockout (UVLO). The AP1511B-MS provides a PWM (FBC) input interface, compatible with industry-standard devices.
Applications
- IR - CUR Security Electronics
Key features
- Operating voltage range: 2.0 - 7.5V
- Continuous current 1.2A, peak 2.5A
- Low on-resistance: 550mΩ ([HS+LS])
- Compatible with 1.8V/3.3V/5.0V IO
- Low standby current
- Low quiescent current
- Integrated over-temperature protection
- Integrated under-voltage protection
- SOT-23-6 package
