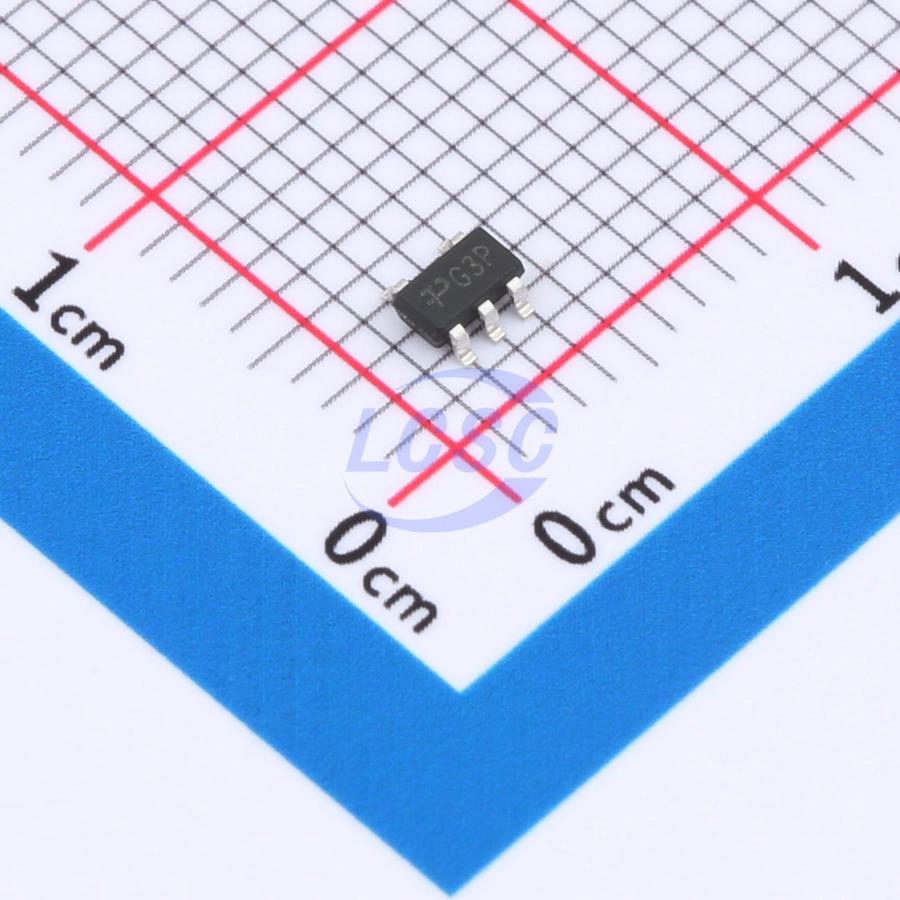

AP2112K-3.3TRG1

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

PopularSOT-23-5RoHSActive

600mA,10uA, High PSRR Voltage Regulator

Manufacturer: TECH PUBLIC
Manufacturer part #: AP2112K-3.3TRG1
Store part #: C23380830
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,055 in stock

#C23380830

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹14.72	₹73.60
50+	₹11.87	₹593.50
150+	₹10.44	₹1,566.00
500+	₹9.37	₹4,685.00
3,000+	₹7.82	₹23,460.00
6,000+	₹7.40	₹44,400.00

Quantity (min 5, multiples of 5)

5 × ₹14.72

₹73.60

excl. GST

₹86.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP2112K-3.3TRG1

₹73.60 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 10uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 600mA
Features: Enable control;Over Current Protection;Thermal shutdown;Output discharge
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

A group of low -dropout (LDO) voltage regulators offering the benefits of wide input voltage range from 1.2V to 5.5V, low dropout voltage, low power consumption, and miniaturized packaging. Quiescent current of only 10μA makes these devices ideal for powering the battery-powered, always-on systems that require very little idle-state power dissipation to a longer service life. There is an option of shutdown mode by selecting the parts with the EN pin and pulling it low. The shutdown current in this mode goes down to only 10nA (typical). These linear regulators are stable with the ceramic output capacitor over its wide input range from 1.2V to 5.5V and the entire range of output load current (0mA to 600mA).

Applications

Portable, Battery Powered Equipment
Low Power Microcontrollers
Laptop, Palmtops and PDAs
Wireless Communication Equipment
Audio/Video Equipment
Car Navigation Systems

Key features

10μA Ground Current at no Load
±2% Output Accuracy
600mA Output Current
10nA Disable Current (by option)
Wide Operating Input Voltage Range: 1.2V to 5.5V
Dropout Voltage: 0.32V at 600mA/ Vout 3.3V
Support Fixed Output Voltage 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
Stable with Ceramic or Tantalum Capacitor
Current Limit Protection
Over Temperature Protection
SOT23 - 5 Packages

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TPAP2112K-3.3TRG1#C3021085TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	8,475	₹12.63 · 8,475 in stock	View
RT9080-33GJ5#C20617299TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	5,775	₹14.08 · 5,775 in stock	View
TP162C33S5#C2937051TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	3,940	₹20.63 · 3,940 in stock	View
TPAP2125K-3.3TRE1#C2937006TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	2,480	₹18.63 · 2,480 in stock	View
TPAP7365-33WG#C2937010TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	2,820	₹18.10 · 2,820 in stock	View

Questions about AP2112K-3.3TRG1

What are the fundamental input voltage and output current specifications of the AP2112K-3.3TRG1?

The TECH PUBLIC AP2112K-3.3TRG1 is a fixed-output low-dropout (LDO) linear voltage regulator with a regulated 3.3V output. It operates from an input voltage range of 1.2V to 5.5V and can supply up to 600mA of continuous output current, making it suitable for powering low-voltage electronic circuits.

How does the AP2112K-3.3TRG1 help improve power efficiency?

The AP2112K-3.3TRG1 features a typical dropout voltage of 320mV at a 600mA load (3.3V output version), helping maintain regulation with minimal voltage loss. It also has a typical ground current of 10µA and a typical shutdown current of 10nA when disabled, contributing to low power consumption.

What power management features are integrated into the AP2112K-3.3TRG1?

The AP2112K-3.3TRG1 includes an Enable (EN) input for on/off control. Pulling the EN pin low places the regulator into shutdown mode to reduce power consumption. The device also provides an integrated output discharge function that discharges the output through an internal resistor when the regulator is disabled.

What protection features and operating conditions does the AP2112K-3.3TRG1 provide?

The AP2112K-3.3TRG1 incorporates current limit protection and thermal shutdown to help protect the device during abnormal operating conditions. It supports an operating temperature range of −40°C to +85°C and provides ±2% output voltage accuracy under specified operating conditions.

What package and capacitor types are supported by the AP2112K-3.3TRG1?

The AP2112K-3.3TRG1 is available in a 5-pin SOT-23-5 surface-mount package. It is designed for use with ceramic or tantalum capacitors and should be used according to the recommended application circuit.
