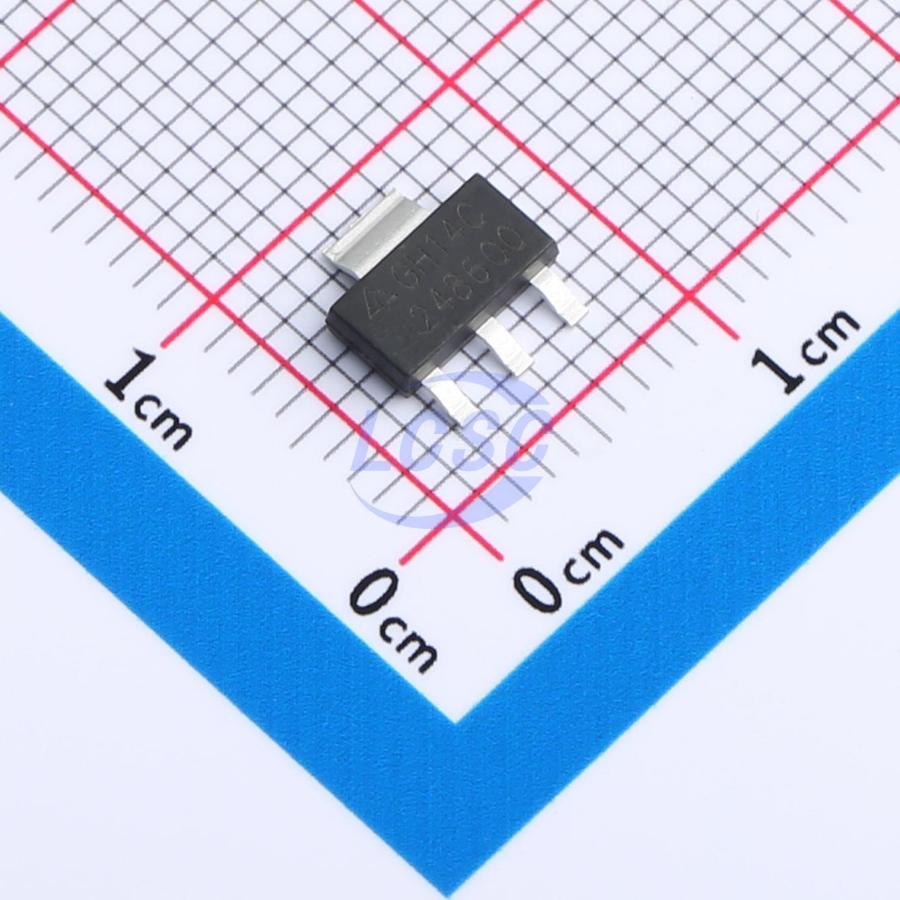

AP2114H-2.5TRG1

The AP2114 is CMOS process low dropout linear regulator with enable function, the regulator delivers a guaranteed 1A (Min) continuous load current. The AP2114 features low power consumption. The AP2114 is available in 1.2V, 1.5V, 1.8V, 2.5V and 3.3V regulator output and 0.8V to 5V adjustable output, and available in excellent output accuracy ±1.5%, it is also available in an excellent load regulation and line regulation performance. The AP2114 is available in standard packages of SOT-223, TO-252-2 (1), TO-252-2 (3), TO-252-2 (4), TO-263-3, SOIC-8 and PSOP-8.

Applications

• LCD Monitor
• LCD TV STB

Key features

• Output Voltage Accuracy: ±1.5%
• Output Current: 1A (Min)
• Fold-back Short Current Protection: 50mA
• Low Dropout Voltage (3.3V): 450mV (Typ) @ I_OUT = 1A
• Stable with 4.7μF Flexible Cap: Ceramic, Tantalum and Aluminum Electrolytic
• Excellent Line Regulation: 0.02%/V (Typ), 0.1%/V (Max) @ V_IOUT = 30mA
• Excellent Load Regulation: 0.2%/A (Typ) @ I_OUT = 1mA to 1A
• Low Quiescent Current: 60μA (1.2V/1.5V/1.8V /2.5V/ADJ)
• Low Output Noise: 30μV_RMS
• PSRR: 68dB @ Freq = 1KHz (1.2V/1.5V/1.8V /ADJ)
• OTSD Protection
• Operating Temperature Range: -40°C to 85°C
• ESD: MM 400V, HBM 4000V
