DIODESDatasheet (PDF)

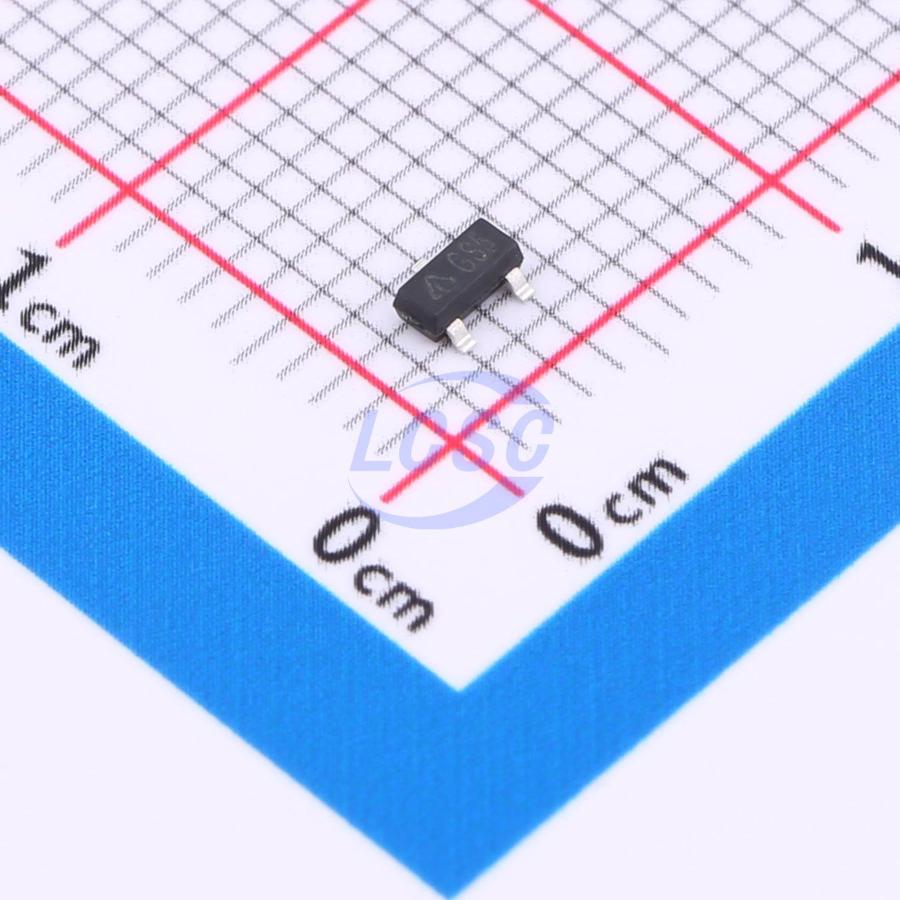

AP2120N-5.0TRG1
5V SOT-23(SOT-23-3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23(SOT-23-3)ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- AP2120N-5.0TRG1
- Store part #
- C5854714
- Package / case
- SOT-23(SOT-23-3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
930 in stock
#C5854714
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.83 | ₹89.15 |
| 50+ | ₹14.24 | ₹712.00 |
| 150+ | ₹12.44 | ₹1,866.00 |
| 500+ | ₹11.09 | ₹5,545.00 |
| 3,000+ | ₹10.00 | ₹30,000.00 |
| 6,000+ | ₹9.46 | ₹56,760.00 |
5 × ₹17.83
₹89.15
excl. GST
₹105.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2120N-5.0TRG1
₹89.15 for 5 + GST
Specifications
- Output Voltage
- 5V
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
The AP2120 series are positive voltage regulator ICs fabricated by CMOS process. Each of these ICs consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, and a current limit circuit for current protection. The AP2120 series feature high supply voltage ripple rejection, low dropout voltage, low noise, high output voltage accuracy, and low current consumption which make them ideal for use in various battery-powered devices. The AP2120 series have 1.2V, 1.3V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.2V, 3.3V, 3.6V, 4.0V and 5.0V versions. The AP2120 are available in standard SOT-23 packages.
Applications
- Mobile Phones, Cordless Phones
- Wireless Communication Equipment
- Portable Games
- Cameras, Video Recorders
- Sub-Board Power Supplies for Telecom Equipment
- Battery Powered Equipment
Key features
- Low Dropout Voltage at IOUT = 100mA: 200mV Typical (Except 1.2V, 1.3V and 1.5V Versions)
- Low Quiescent Current: 25µA Typical
- High Ripple Rejection: 65dB Typical (f = 1kHz)
- Output Current: More Than 150mA (250mA Limit)
- Extremely Low Noise: 15µVms@Vout = 1.2V, 1.3V, 1.5V (10Hz to 100kHz)
- Excellent Line Regulation: 4mV Typical
- Excellent Load Regulation: 12mV Typical
- High Output Voltage Accuracy: ±2%
- Excellent Line Transient Response and Load Transient Response
- Compatible with Low ESR Ceramic Capacitor (as Low as 1µF)
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Finish - Mate Tin Plated Leads, Solderable per MIL-STD-202, Method 208
- Weight: 0.009 grams (Approximate)
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
