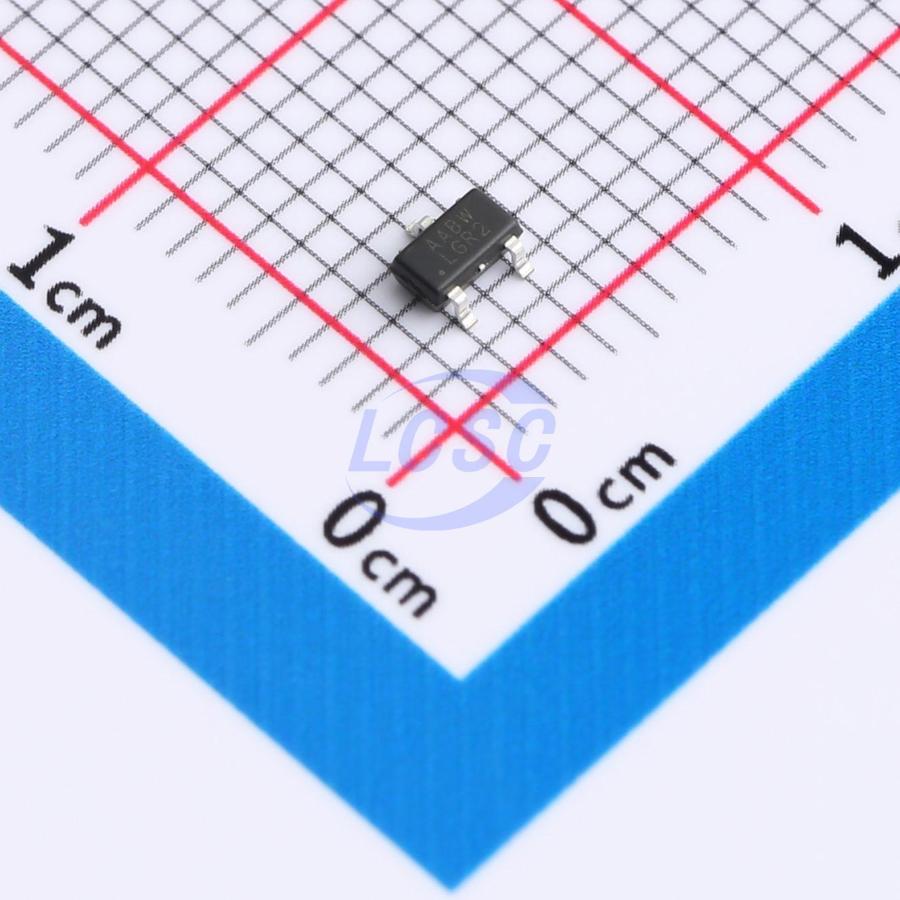

AP2125N-3.0TRG1(MS)
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23
SOT-23RoHSActive
Power supply chip with low quiescent current
- Manufacturer
- MSKSEMI
- Manufacturer part #
- AP2125N-3.0TRG1(MS)
- Store part #
- C22365434
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C22365434
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.80 | ₹74.00 |
| 50+ | ₹11.71 | ₹585.50 |
| 150+ | ₹10.16 | ₹1,524.00 |
| 500+ | ₹9.00 | ₹4,500.00 |
| 3,000+ | ₹8.07 | ₹24,210.00 |
| 6,000+ | ₹7.59 | ₹45,540.00 |
5 × ₹14.80
₹74.00
excl. GST
₹87.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2125N-3.0TRG1(MS)
₹74.00 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The AP2125N-x.xTRG1(MS) series are LDO regulators featuring a wide input voltage range of 1.2V to 5.5V, low dropout voltage, low power consumption, and compact packaging. With a quiescent current as low as 2μA, the AP2125N-x.xTRG1(MS) is especially suited for battery-powered devices and long-term standby applications, helping reduce system standby power consumption while effectively extending standby time and battery life. The AP2125N-x.xTRG1(MS) is available in a version with an EN enable pin — pulling the EN pin low activates shutdown mode, in which the quiescent current drops to as low as 100nA (typical). The AP2125N-x.xTRG1(MS) series supports ceramic output capacitors and operates stably across the full 1.2V to 5.5V input voltage range and the entire output load current range of 0mA to 300mA.
Applications
- Handheld, battery-powered devices
- Low-power microprocessors
- Laptops, palmtop computers, and PDAs
- Wireless communication devices
- Audio/video equipment
- Automotive navigation systems
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCP1700T-3002E/TT(MS)#C20627189MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 1,370 | ₹19.53 · 1,370 in stock | View |
 | HT7330-1-MS#C7434221MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 1,140 | ₹8.93 · 1,140 in stock | View |
