DIODESDatasheet (PDF)

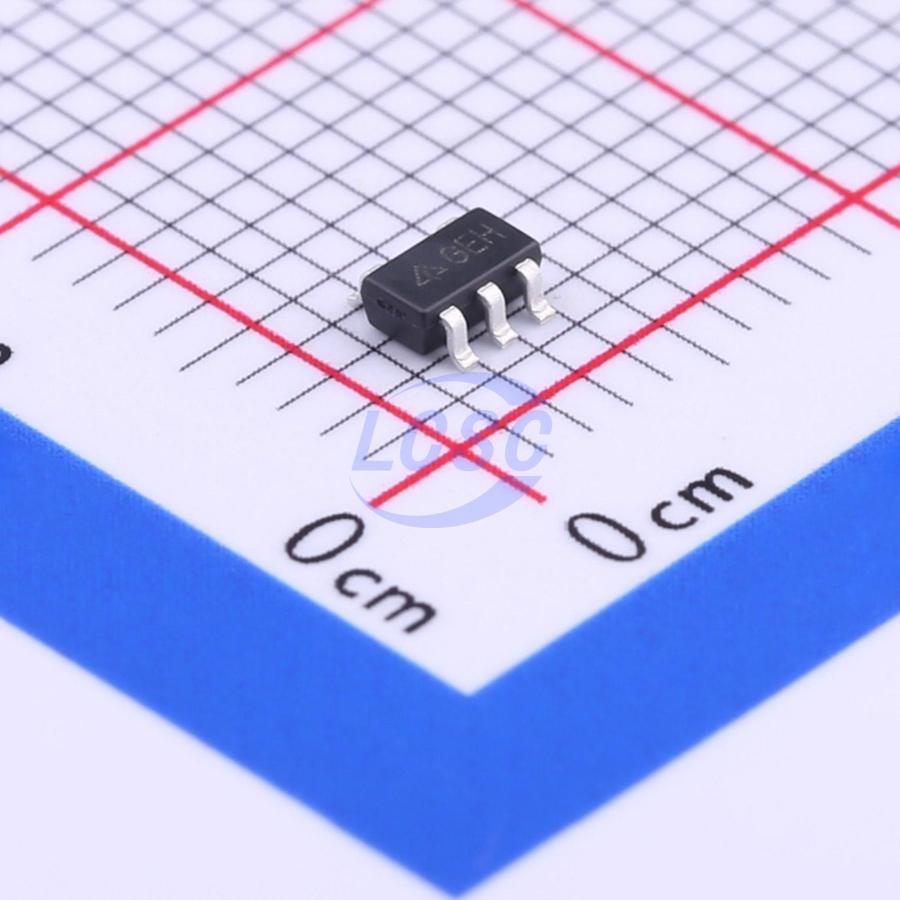

AP2127K-ADJTRG1
800mV~5.5V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
300mA HIGH SPEED, EXTREMELY LOW NOISE CMOS LDO REGULATOR
- Manufacturer
- DIODES
- Manufacturer part #
- AP2127K-ADJTRG1
- Store part #
- C96343
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36,485 in stock
#C96343
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.12 | ₹75.60 |
| 50+ | ₹12.13 | ₹606.50 |
| 150+ | ₹10.65 | ₹1,597.50 |
| 500+ | ₹9.53 | ₹4,765.00 |
| 3,000+ | ₹7.62 | ₹22,860.00 |
| 6,000+ | ₹7.17 | ₹43,020.00 |
5 × ₹15.12
₹75.60
excl. GST
₹89.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2127K-ADJTRG1
₹75.60 for 5 + GST
Specifications
- Output Voltage
- 800mV~5.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Operating Voltage
- 9V
- Output Current
- 300mA
- Features
- Enable control;Built-in soft-start;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
The AP2127 Series are positive voltage regulator ICs fabricated by CMOS process. The AP2127 Series have features of low dropout voltage, low noise, high output voltage accuracy, and low current consumption which make them ideal for use in various battery-powered devices. The AP2127 has 1.0V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 4.2V, and 4.75V fixed voltage versions and 0.8V to 5.5V adjustable voltage versions. The AP2127 Series are available in SOT-23 (for fixed versions only), SOT-23-3 (for fixed versions only), SOT-23-5, SOT-89 (for fixed versions only) packages.
Applications
- Datacom
- Notebook Computers
- Mother Board
Key features
- Wide Operating Voltage: 2.5V to 6V
- High Output Voltage Accuracy: ±2%
- High Ripple Rejection: 68dB @ f = 1kHz, 54dB
- Low Standby Current: 0.1μA
- Low Dropout Voltage: 170mV @ 300mA for VOUT = 3.3V, 140mV @ 300mA for VOUT = 4.75V
- Low Quiescent Current: 60μA Typical
- Low Output Noise: 60μVRMS @ VOUT = 0.8V
- Short Current Limit: 50mA
- Over Temperature Protection
- Compatible with Low ESR Ceramic Capacitor: 1μF for CIN and COUT
- Excellent Line/Load Regulation
- Soft Start Time: 50μs
- Auto Discharge Resistance: RDS(ON) = 60Ω
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP172CADJS5#C3021088TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,135 | ₹26.92 · 4,135 in stock | View |
