DIODES

AP2204R-5.0TRG1

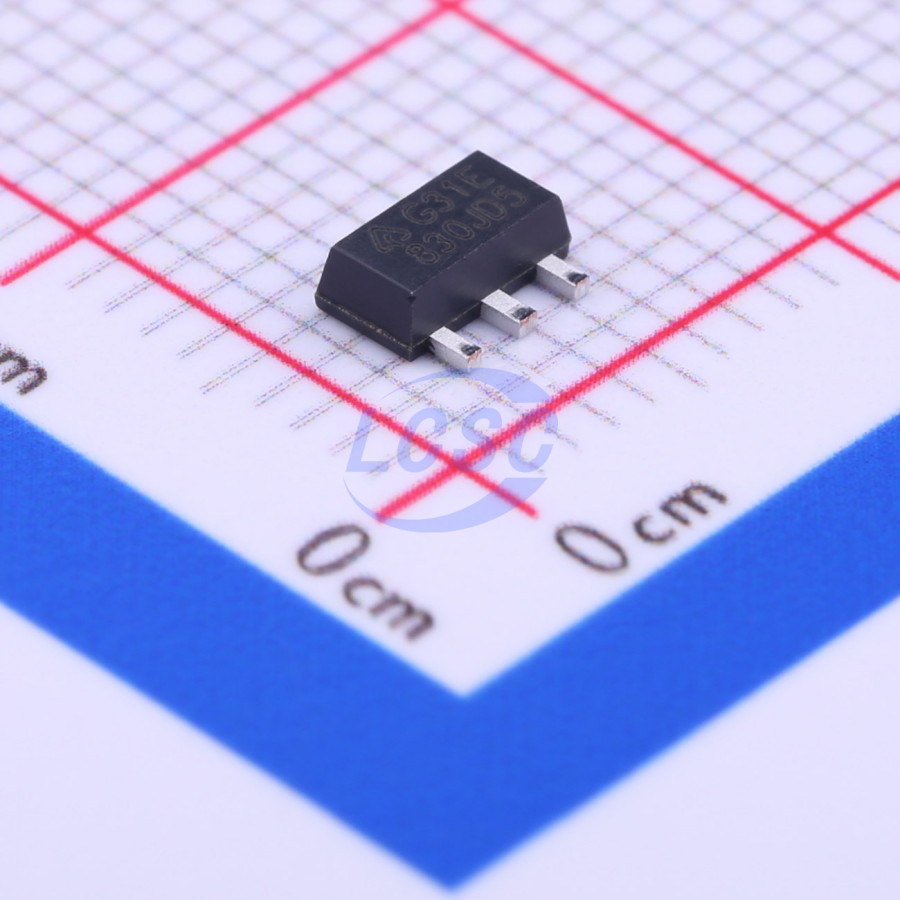

5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-89-3ROHS CompliantActive

Wide Input Voltage Range, 150mA ULDO Regulator

Manufacturer: DIODES
Manufacturer part #: AP2204R-5.0TRG1
Store part #: C156388
Package / case: SOT-89-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,575 in stock

#C156388

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹9.83	₹49.15
50+	₹8.69	₹434.50
150+	₹8.12	₹1,218.00
1,000+	₹7.69	₹7,690.00
2,000+	₹7.34	₹14,680.00
5,000+	₹7.17	₹35,850.00

Quantity (min 5, multiples of 5)

5 × ₹9.83

₹49.15

excl. GST

₹58.00 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

AP2204R-5.0TRG1

₹49.15 for 5 + GST

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 20uA
Output Configuration: Positive
Operating Voltage: 24V
Output Current: 200mA
Features: Enable control;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.212 g

Overview

The AP2204 series is a positive voltage regulator IC fabricated by high voltage EPNP process. The AP2204 has features of wide input voltage range, high accuracy, high ripple rejection, low dropout voltage, low noise, current limit and ultra-low quiescent current which make it ideal for use in various USB and portable devices. The IC consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current limit circuit for current protection, and a chip enable circuit. The AP2204 has 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 5.0V fixed voltage versions and adjustable voltage version. The AP2204 is available in space-saving SOT-23-5, SOT-89 and PSOP-8 packages.

Applications

Battery-powered Equipment
Laptop, Palmtops, Notebook Computers
Portable Information Appliances

Key features

Wide Input Voltage Range: 2.3V to 24V
Wide Output Voltage Range: 1.24V to 22V
Excellent Ripple Rejection: 60dB@ f = 1kHz
Low Dropout Voltage: VDROP = 100mV @ lout = 100μA
Low Ground Current
High Output Voltage Accuracy
Compatible with Low ESR Ceramic Capacitor
Excellent Line/Load Regulation
Thermal Shutdown Function
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
