AP2210K-3.0TRG1

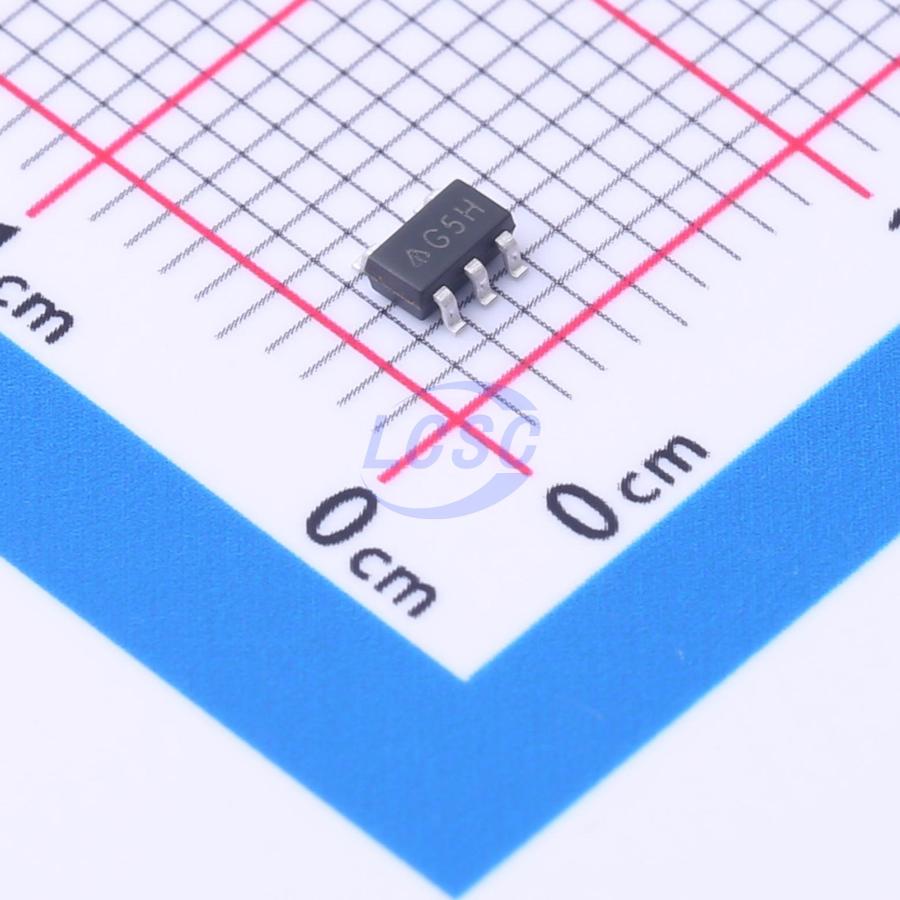

3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS3 CompliantActive

300mA RF Ultra-Low Dropout Regulator

Manufacturer: DIODES
Manufacturer part #: AP2210K-3.0TRG1
Store part #: C176958
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,290 in stock

#C176958

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
5+	₹28.47	₹142.35
50+	₹22.65	₹1,132.50
150+	₹20.16	₹3,024.00
500+	₹17.04	₹8,520.00
3,000+	₹15.66	₹46,980.00
6,000+	₹14.83	₹88,980.00

Quantity (min 5, multiples of 5)

5 × ₹28.47

₹142.35

excl. GST

₹167.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP2210K-3.0TRG1

₹142.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 180uA
Output Configuration: Positive
Operating Voltage: 13.2V
Output Current: 300mA
Features: Enable control;Over Current Protection;Thermal shutdown;Reverse-polarity current protection;Noise bypass terminal
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.02 g

Overview

The AP2210 is a 300mA ULDO regulator which provides very low noise, ultra-low dropout voltage (typically 250mV at 300mA), very low standby current (1μA maximum), and excellent power supply ripple rejection (PSRR 75dB at 100Hz). This device is used in battery powered applications, such as handsets and PDAs; and in noise sensitive applications, such as RF electronics. The AP2210 also features individual logic compatible enable/shutdown control inputs, a low power shutdown mode for extended battery life, overcurrent protection, overtemperature protection, and reversed current protection. The AP2210 has 2.5V, 2.8V, 3.0V, 3.3V, 3.6V, 4.0V, 5.0V, and ADJ versions. The AP2210 is available in the space saving SOT-23-3 and SOT-23-5 packages.

Applications

Cellular Phones
Cordless Phones
Wireless Communicators
PDAs/Palmtops
PC Motherboards
Consumer Electronics

Key features

Up to 300mA Output Current
Excellent ESR Stability
Low Standby Current
Low Dropout Voltage: VDROP = 250mV at 300mA
High Output Accuracy: ±1%
Good Ripple Rejection Ability: 75dB at 100Hz and lour = 100μA
Tight Load and Line Regulation
Low Temperature Coefficient
Over-Current Protection
Thermal Protection
Reverse Current Protection
Logic-controlled Enable
Moisture Sensitivity: Level 3 Per J-STD-020
Totally Lead-Free; RoHS Compliant
Halogen and Antimony Free. “Green” Device
