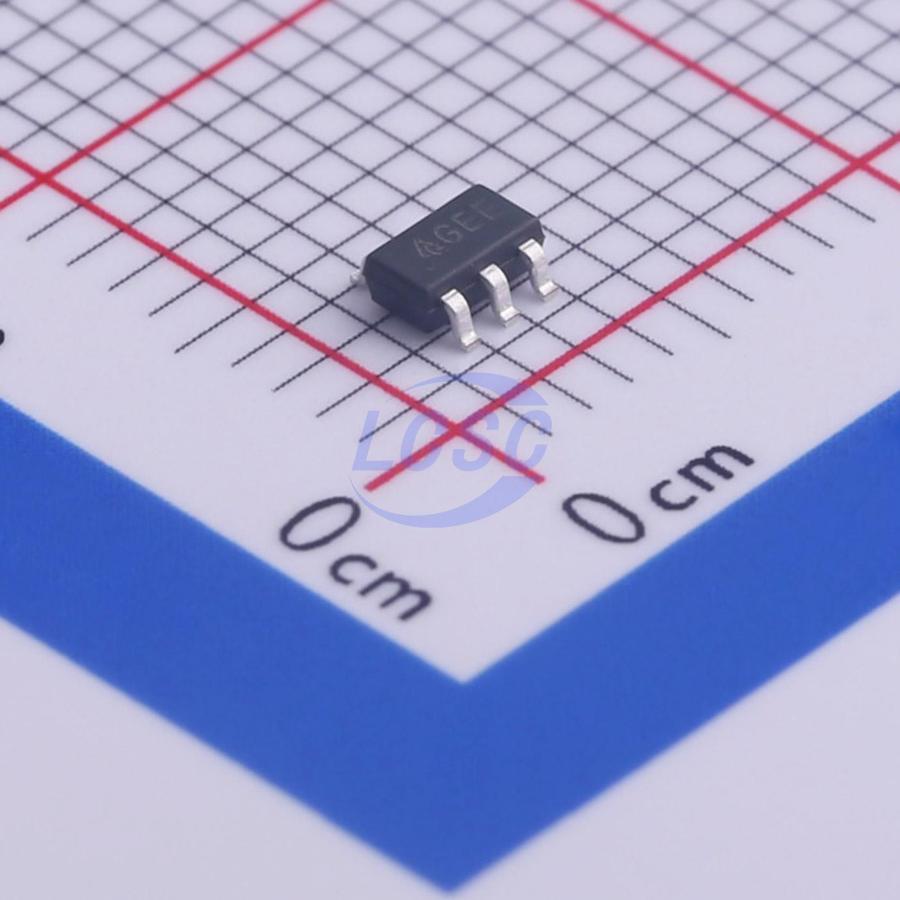

AP2502KTR-G1
20mA 150kHz PWM 4 2V~6V SOT-23-6 LED Drivers RoHS
4-CH Linear Constant Current Sink With Matching
- Manufacturer
- DIODES
- Manufacturer part #
- AP2502KTR-G1
- Store part #
- C460349
- Package / case
- SOT-23-6
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,655 in stock
#C460349
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.22 | ₹186.10 |
| 50+ | ₹29.86 | ₹1,493.00 |
| 150+ | ₹26.71 | ₹4,006.50 |
| 500+ | ₹22.78 | ₹11,390.00 |
| 3,000+ | ₹21.04 | ₹63,120.00 |
| 6,000+ | ₹19.98 | ₹1,19,880.00 |
5 × ₹37.22
₹186.10
excl. GST
₹219.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2502KTR-G1
₹186.10 for 5 + GST
Specifications
- Output Current
- 20mA
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 150kHz
- Dimming
- PWM
- Number of Channels
- 4
- Switch tube (built-in/external)
- Built-in
- Features
- Over-Temperature Protection (OTP)
- Constant Current Accuracy
- 1%
- Voltage - Input(DC)
- 2V~6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
The AP2502 is a 4-channel independent linear current sink with low dropout voltage and perfect match between each channel. Each channel can provide 20mA continuous constant current. In application, there is only one 0.1μF ceramic capacitor required, and there is no any EMI and switching noise issue. It is perfect choice for hand-hold portable system especially based on Li-ion/Polymer battery powered display module. The brightness can be controlled and/or adjustable via simple PWM signal applied to EN pin. The AP2502 is available with SOT-23-6 and TSOT-23-6 packages.
Applications
- Mobile Phone
- Smart Phone
- PDA
- MP3
- MP4
- PMP
- Small Size Backlight Module
Key features
- Current Matching Between Each Channel: ±1%
- Low Dropout Voltage: 65mV (Typ.) I_LED = 20mA
- Maximum Output Current on Each Channel: 20mA
- Ultra-low Quiescent Current: 125μA (Typ.)
- Ultra-low Shutdown Current: 1μA (Max.)
- None EMI and Switching Noise Issue
- Permitted PWM Dimming Frequency up to 150kHz
- OTSD Protection
