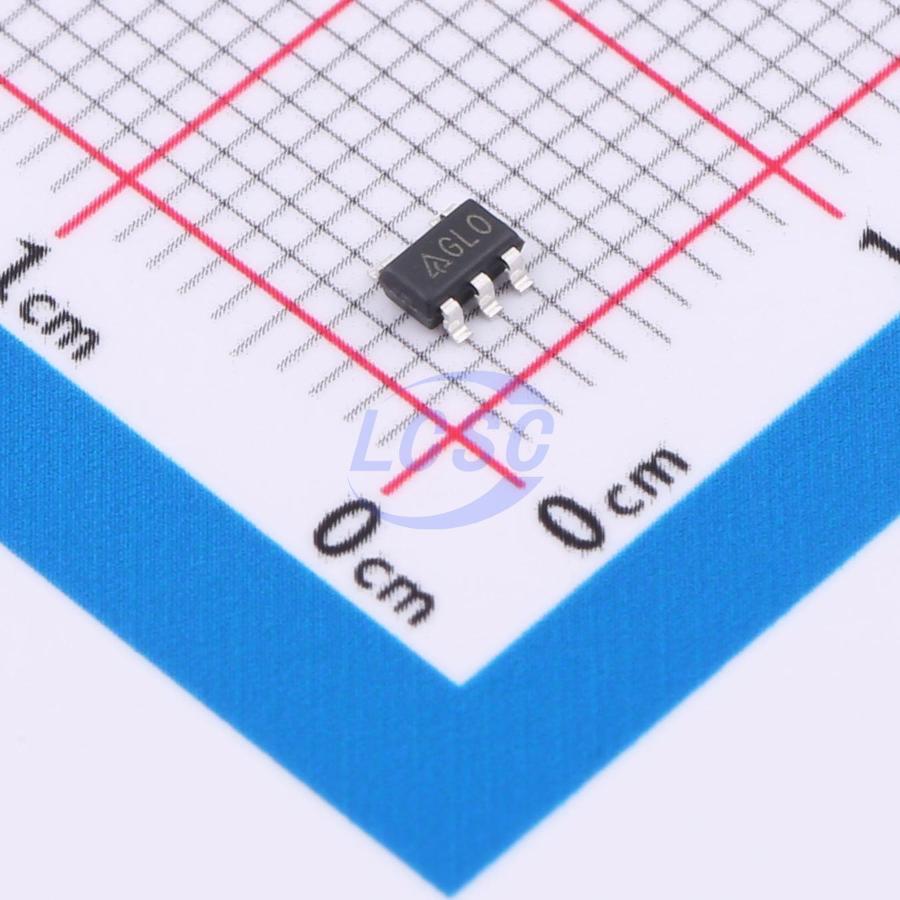

AP2822GKETR-G1

The AP2822 is an integrated high - side power switch that consists of N - Channel MOSFET, charge pump, over current & temperature and other related protection circuits. The switch's low RDS(ON), 85mΩ is designed to meet USB voltage drop requirements. The IC includes soft - start to limit inrush current, over - current protection, load short protection with fold - back, and thermal shutdown to avoid switch failure during hot plug - in. Under voltage lockout (UVLO) function is used to ensure the device remain off unless there is a valid input voltage present. A FLAG output is available to indicate fault conditions to the local USB controller. The AP2822 is available in the standard package of SOT - 23 - 5.

Applications

• USB Power Management
• USB Bus/Self Powered Hubs
• Hot - plug Power Supplies
• Battery - charger Circuits
• Notebooks, Motherboard PCs

Key features

• Low MOSFET On Resistance: 85mΩ
• Compliant to USB Specifications
• Available 4 Versions of Continuous Load: 0.5A/1.0A/1.5A/2.0A
• Logic Level Enable Pin: Available with Active - high or Active - low Version
• Operating Voltage Range: 2.7V to 5.5V
• Low Supply Current: 68μA (Typ.)
• Low Shutdown Current: 1.0μA (Max)
• Under - voltage Lockout
• Soft Start - up
• Over - current Protection
• Over Temperature Protection
• Load Short Protection with Fold - back
• No Reverse Current When Power Off
• Deglitched FLAG Output with Open Drain
• With Output Shutdown Pull - low Resistor (For Auto - discharge) (AP2822A/AP2822B/AP2822C/AP2822D/AP2822E/AP2822F/AP2822G/AP2822H)
• Without Output Shutdown Pull - low Resistor (For No Auto - discharge) (AP2822AN/AP2822BN/AP2822CN/AP2822DN/AP2822EN/AP2822FN/AP2822GN/AP2822HN)
• Totally Lead - free & Fully RoHS Compliant
• Halogen and Antimony Free. "Green" Device
