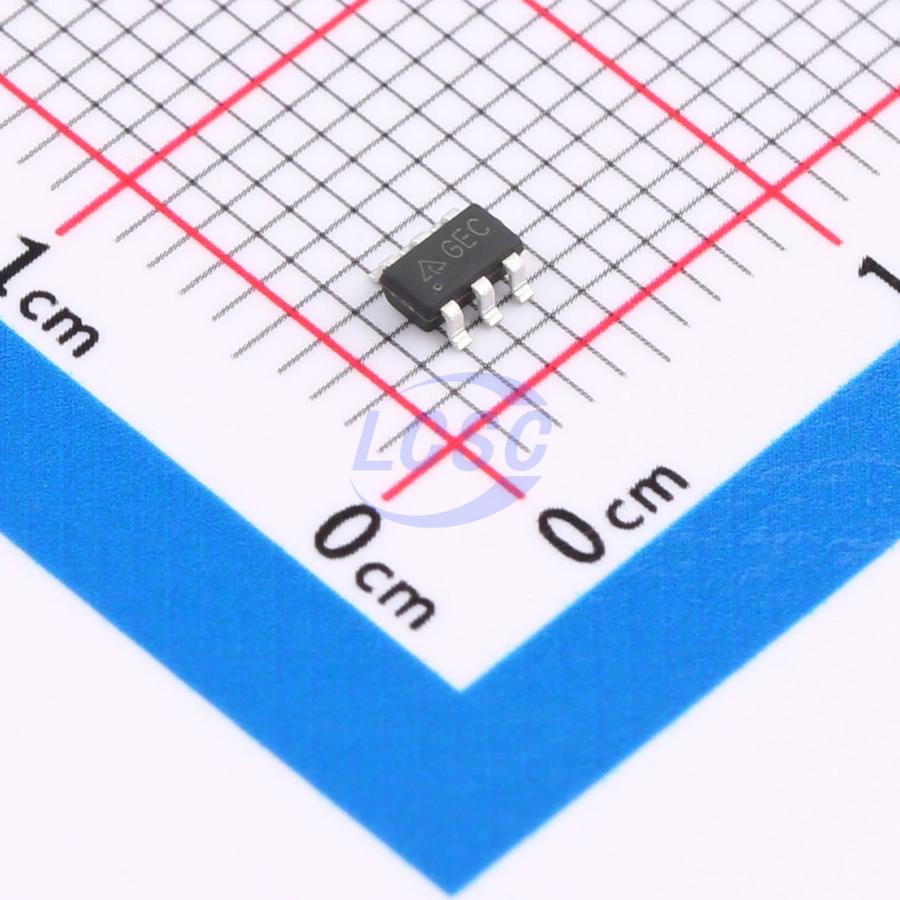

AP3031KTR-G1
1MHz PWM 1 DC-DC 1.4A 2.7V~16V SOT-23-6 LED Drivers RoHS
WHITE LED STEP-UP CONVERTER
- Manufacturer
- DIODES
- Manufacturer part #
- AP3031KTR-G1
- Store part #
- C82636
- Package / case
- SOT-23-6
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25,015 in stock
#C82636
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.42 | ₹142.10 |
| 50+ | ₹22.40 | ₹1,120.00 |
| 150+ | ₹19.83 | ₹2,974.50 |
| 500+ | ₹16.60 | ₹8,300.00 |
| 3,000+ | ₹14.83 | ₹44,490.00 |
| 6,000+ | ₹13.97 | ₹83,820.00 |
5 × ₹28.42
₹142.10
excl. GST
₹167.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP3031KTR-G1
₹142.10 for 5 + GST
Specifications
- Frequency - Switching
- 1MHz
- Dimming
- PWM
- Number of Channels
- 1
- Type
- DC-DC
- Output Current
- 1.4A
- Operating Temperature
- -40℃~+85℃
- Features
- Over Voltage Protection;Built-in soft-start;LED open-circuit protection;Over-Temperature Protection (OTP)
- Topology
- Boost
- Voltage - Input(DC)
- 2.7V~16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
The AP3031 is an inductor-based DC/DC boost converter designed to drive LED arrays. 1.4A switching current allows AP3031 to be used in different 7' to 10' LCD panel backlights (3*13 LED arrays typically). A constant frequency 1MHz PWM control scheme is employed in this IC, which means tiny external components can be used. Specifically, 1mm tall 4.7μH inductor and 0.47μF output capacitor for the typical application is sufficient. The over output voltage protection is equipped in AP3031, which protects the IC under open load condition. The AP3031 includes UVLO, soft-start, current limit and OTSD to protect the circuit. The AP3031 is available in standard SOT-23-6, TSOT23-6 and SOIC-8 packages.
Applications
- 7' to 10' LCD Panels
- Digital Photo Frame
- GPS Receiver
- EPC
- PDVD
Key features
- Up to 92% Efficiency (VIN = 9V, IOUT = 260mA)
- Up to 84% Efficiency (VIN = 5V, IOUT = 260mA)
- Fast 1MHz Switching Frequency
- Wide Input Voltage Range: 2.7V to 16V
- Low 200mV Feedback Voltage
- Output Over Voltage Protection
- Cycle by Cycle Current Limit: 1.4A
- Built-in Soft-start
- Built-in Standby Mode to Achieve High Frequency PWM Dimming
- Built-in Thermal Shutdown Function
- Under Voltage Lockout
