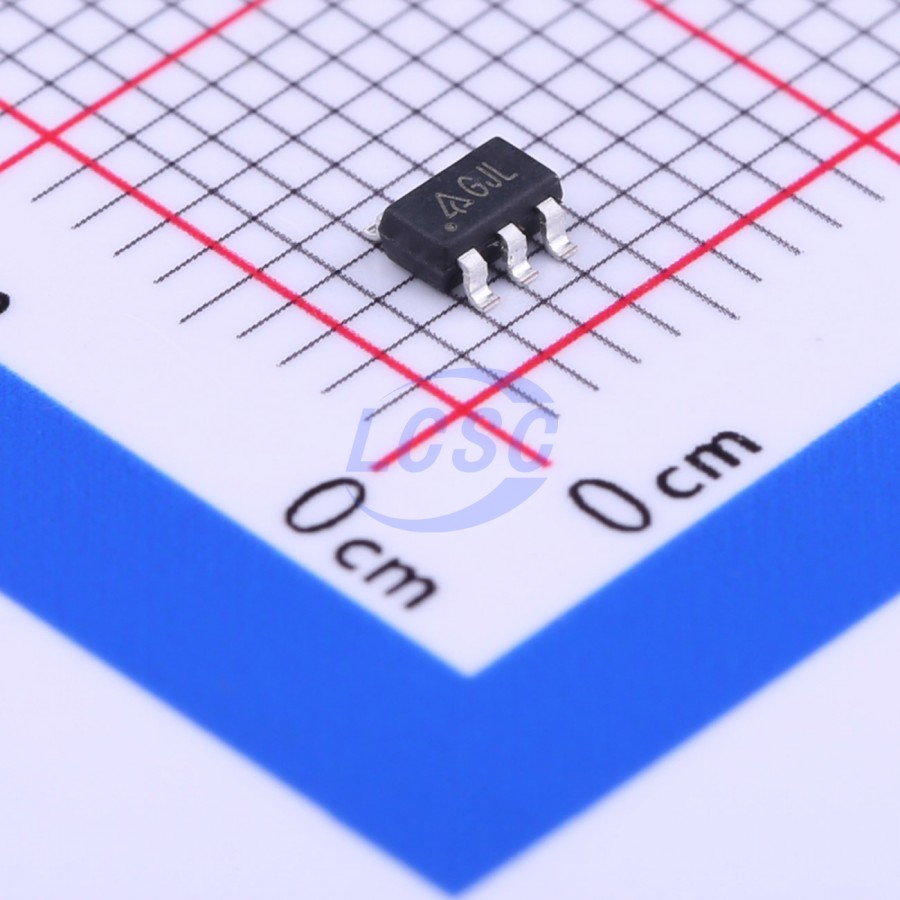

AP3032KTR-G1
1MHz PWM 1 DC-DC 1.4A 2.7V~9V SOT-23-6 LED Drivers RoHS
WHITE LED STEP-UP CONVERTER
- Manufacturer
- DIODES
- Manufacturer part #
- AP3032KTR-G1
- Store part #
- C264086
- Package / case
- SOT-23-6
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,030 in stock
#C264086
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.35 | ₹166.75 |
| 50+ | ₹26.58 | ₹1,329.00 |
| 150+ | ₹23.27 | ₹3,490.50 |
| 500+ | ₹20.31 | ₹10,155.00 |
| 3,000+ | ₹17.40 | ₹52,200.00 |
| 6,000+ | ₹16.91 | ₹1,01,460.00 |
5 × ₹33.35
₹166.75
excl. GST
₹196.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP3032KTR-G1
₹166.75 for 5 + GST
Specifications
- Frequency - Switching
- 1MHz
- Dimming
- PWM
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.4A
- Operating Temperature
- -40℃~+85℃
- Features
- Over Voltage Protection;Built-in soft-start;LED open-circuit protection;Over-Temperature Protection (OTP)
- Topology
- Boost
- Voltage - Input(DC)
- 2.7V~9V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
The AP3032 is an inductor-based DC/DC boost converter designed to drive up to 4 rows of LEDs with 7 series for each in parallel for backlight. A constant frequency 1MHz PWM control scheme is employed in this IC, which means tiny external components can be used. Specifically, 1mm tall 6.8μH inductor and 1μF aluminum output capacitor for the typical application is sufficient. The over output voltage protection is equipped in AP3032, which protects the IC under open load condition. The AP3032 includes UVLO, soft-start, stand-by mode, current limiting and OTSD to protect the circuit under over load condition. The AP3032 is available in SOT-23-6 package.
Applications
- 7’ to 10” LCD Panels
- Digital Photo Frame
- GPS Receiver
Key features
- Efficiency Up to 81% （VIN = 5V, IOUT = 80mA）
- Drives up to 4 Rows of WLEDs with 7 Series for Each in Parallel (VIN = 5V)
- Fast 1 MHz Switching Frequency
- Wide Input Voltage Range: 2.7V to 9V
- Low Feedback Voltage: 200mV
- Output Over Voltage Protection
- Cycle-by-cycle Current Limit: 1.4A
- Built in Soft-start
- Built in Standby-mode to Achieve High Frequency PWM Dimming
- Built in Thermal Shutdown Function
- Under Voltage Lockout
