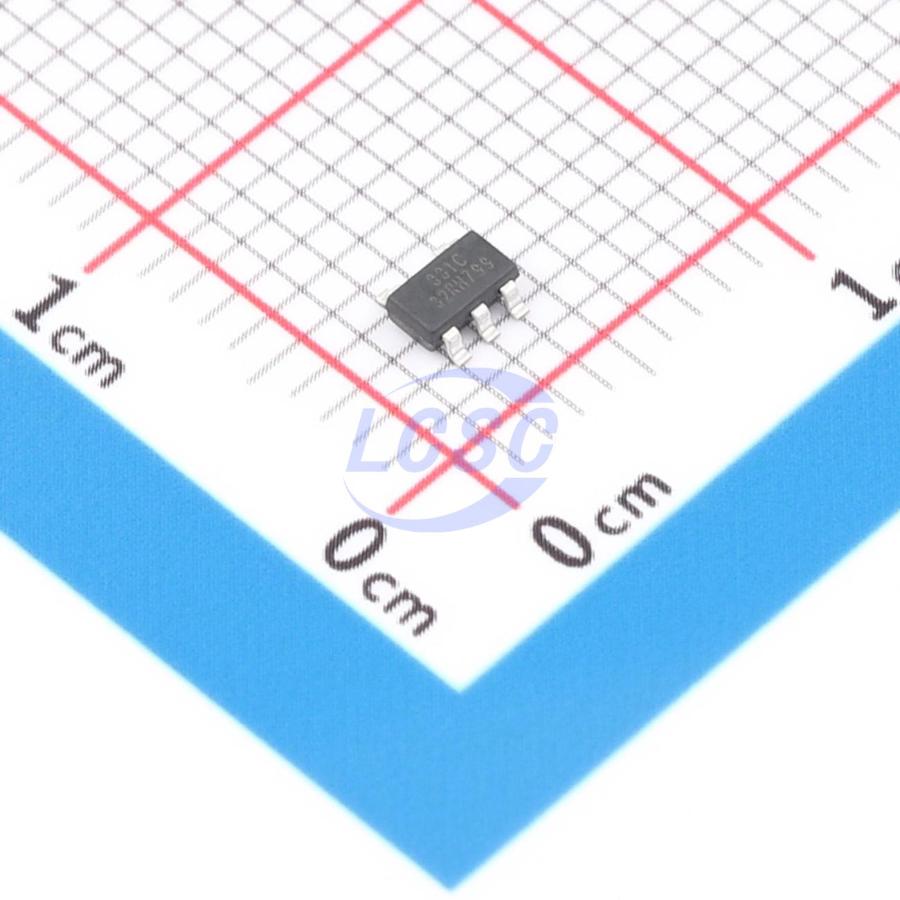

AP331AWG-7-MS
2mV 1nA 1 SOT-23-5 Linear Comparators
- Manufacturer
- MSKSEMI
- Manufacturer part #
- AP331AWG-7-MS
- Store part #
- C30200459
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,815 in stock
#C30200459
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.33 | ₹71.65 |
| 50+ | ₹11.39 | ₹569.50 |
| 150+ | ₹9.91 | ₹1,486.50 |
| 500+ | ₹8.81 | ₹4,405.00 |
| 2,500+ | ₹7.92 | ₹19,800.00 |
| 5,000+ | ₹7.49 | ₹37,450.00 |
5 × ₹14.33
₹71.65
excl. GST
₹84.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP331AWG-7-MS
₹71.65 for 5 + GST
Specifications
- Dual Supply
- 1.5V~16V
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 1nA
- Quiescent Current
- 75uA
- Output Mode
- TTL;CMOS
- Number of Channels
- 1
- Propagation Delay Time
- 485ns
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -55℃~+125℃
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
AP331AWG-7-MS is a voltage comparator for ICs. It features lower offset voltage, higher supply voltage tolerance, lower supply current, shorter propagation delay, wider operating temperature range, and improved ESD performance. The device supports both single-supply and dual-supply operation. For dual-supply operation, the supply voltage range is ±1.5V to ±16V, with the supply voltage at least 1.5V above the input common-mode voltage. The output is compatible with TTL and CMOS logic levels, and the leakage current is independent of the supply voltage. The output can be connected to other open-drain outputs to implement a "wired-AND" function. The AP331AWG-7-MS comes in a green SOT23-5 package with an operating temperature range of -25°C to +85°C.
Applications
- Hysteresis comparator
- Floor cleaning robot
- Unidirectional UPS
- Server power supply
- Wireless power tools
Key features
- Wide supply voltage range: 3V to 32V
- Low input offset voltage: 2mV (typical)
- Low quiescent current: 75μA (at Vs=5V)
- Low input bias current: 100nA
- Input common-mode voltage range includes ground
- Open-drain output
- Fast response time
- Compact package: SOT23-5
