TECH PUBLICDatasheet (PDF)

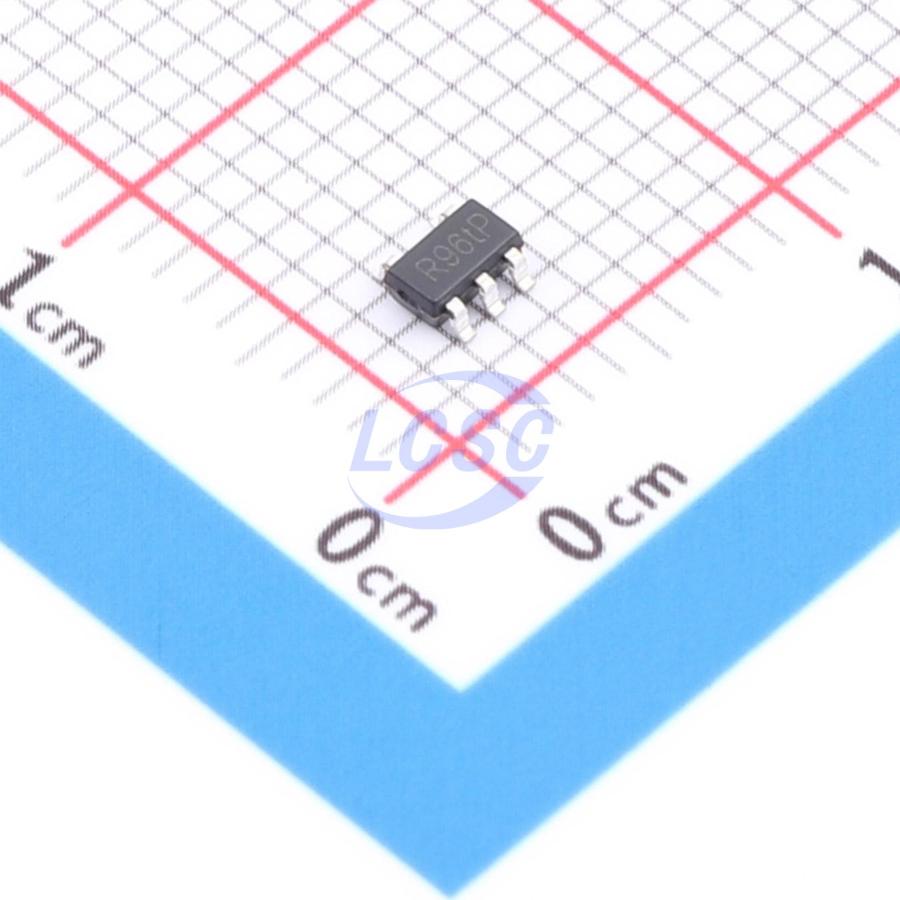

AP331AWG-TP
2mV 25nA 1 SOT-23-5 Linear Comparators
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AP331AWG-TP
- Store part #
- C48995491
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,205 in stock
#C48995491
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.14 | ₹55.70 |
| 50+ | ₹8.77 | ₹438.50 |
| 150+ | ₹7.58 | ₹1,137.00 |
| 500+ | ₹6.69 | ₹3,345.00 |
| 3,000+ | ₹5.97 | ₹17,910.00 |
| 6,000+ | ₹5.61 | ₹33,660.00 |
5 × ₹11.14
₹55.70
excl. GST
₹65.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP331AWG-TP
₹55.70 for 5 + GST
Specifications
- Dual Supply
- 1V~18V;-18V~-1V
- Vos - Input Offset Voltage
- 2mV
- Quiescent Current
- 400uA
- Ib - Input Bias Current
- 25nA
- Output Mode
- TTL;CMOS
- Propagation Delay Time
- 300ns
- Number of Channels
- 1
- Input Offset Current(Ios)
- 0.5nA
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
This device is a single-precision voltage comparator supporting single-supply or dual-supply operation. Its input offset voltage specification as low as 2.0 mV enables excellent ground-level detection in single-supply operation. The design allows the input common-mode range to extend to the supply voltage, making it suitable for a wide range of applications in consumer electronics, automotive, and industrial electronics.
Applications
- Battery chargers
- Cordless telephones
- Switching power supplies
Key features
- Output voltage compatible with DTL, ECL, TTL, MOS, and CMOS logic levels
- Low input bias current: 25nA
- Low input offset current: ±0.5nA
- Low input offset voltage: ±2mV (typical)
- Input common-mode range extends to ground
- Differential input voltage range equal to supply voltage
- Ultra-low supply current consumption (0.4mA), independent of supply voltage
- Wide single-supply range: 2V~36V
- Dual-supply range: ±1V~±18V
