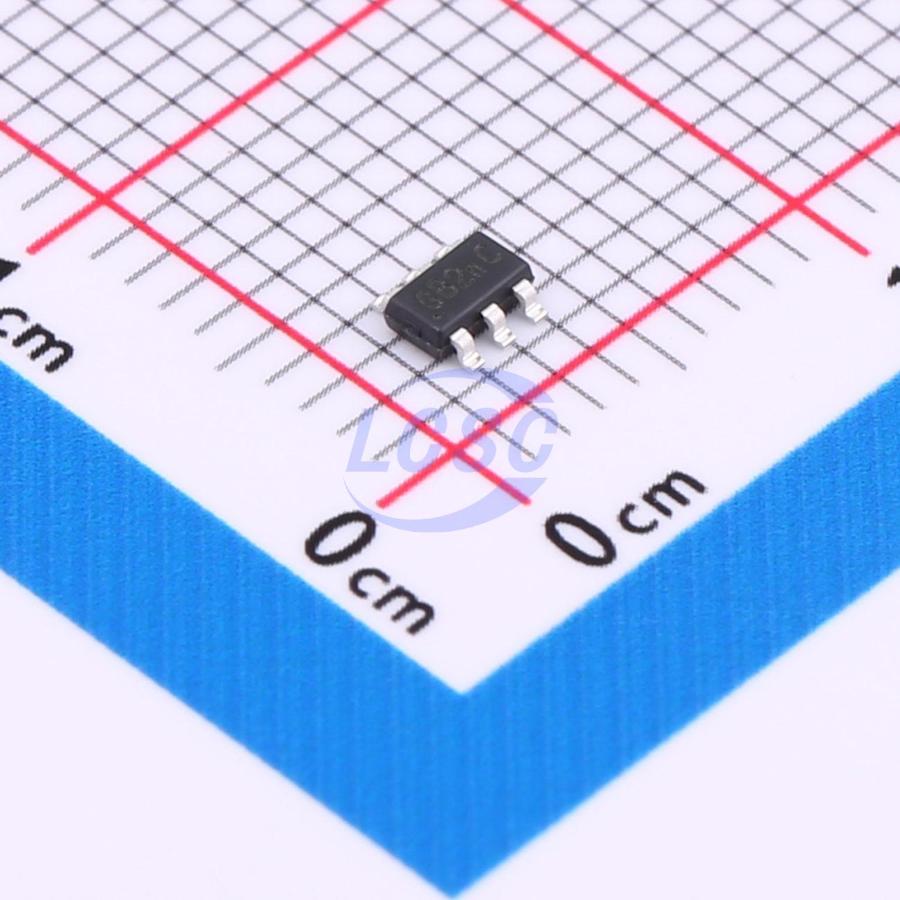

AP5724WUG-7
1.2MHz PWM 1 DC-DC 750mA 2.7V~5.5V TSOT-23-6L LED Drivers RoHS
WHITE LED STEP-UP CONVERTER
- Manufacturer
- DIODES
- Manufacturer part #
- AP5724WUG-7
- Store part #
- C5197489
- Package / case
- TSOT-23-6L
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,497 in stock
#C5197489
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.46 | ₹70.46 |
| 10+ | ₹55.46 | ₹554.60 |
| 30+ | ₹48.94 | ₹1,468.20 |
| 100+ | ₹40.88 | ₹4,088.00 |
| 500+ | ₹37.40 | ₹18,700.00 |
| 1,000+ | ₹35.23 | ₹35,230.00 |
1 × ₹70.46
₹70.46
excl. GST
₹83.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP5724WUG-7
₹70.46 for 1 + GST
Specifications
- Frequency - Switching
- 1.2MHz
- Dimming
- PWM
- Number of Channels
- 1
- Type
- DC-DC
- Output Current
- 750mA
- Operating Temperature
- -40℃~+85℃
- Features
- Over Voltage Protection;Built-in soft-start;Over-Temperature Protection (OTP)
- Topology
- Boost
- Voltage - Input(DC)
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.013 g
Overview
The AP5724 is a step-up DC/DC converter specifically designed to drive white LEDs with a constant current. The device can drive 2~6 LEDs in series from a Li-Ion cell. Series connection of the LEDs provides identical LED currents resulting in uniform brightness and eliminates the need for ballast resistors. For driving higher number of LEDs, AP5724 also supports a single feedback of parallel connected multiple strings of equal number of LEDs. The AP5724 switches at 1.2MHz that allows the use of tiny external components. A low 0.1V feedback voltage minimizes power loss in the current setting resistor for better efficiency
Applications
- Cellular Phones
- PDAs, Hand held Computers
- Digital Cameras
- MP3 Players
- GPS Receivers
Key features
- High Efficiency: 84% Typical
- Fast 1.2MHz Switching Frequency
- Current Limit and UVLO Protections
- Internal Thermal Shutdown
- Internal Over Voltage Protection
- Integrated Soft-Start Function
- SOT26, TSOT26 and U-DFN2020-6: Available in “Green” Molding Compound (No Br, Sb) Lead-Free Finish; RoHS Compliant
