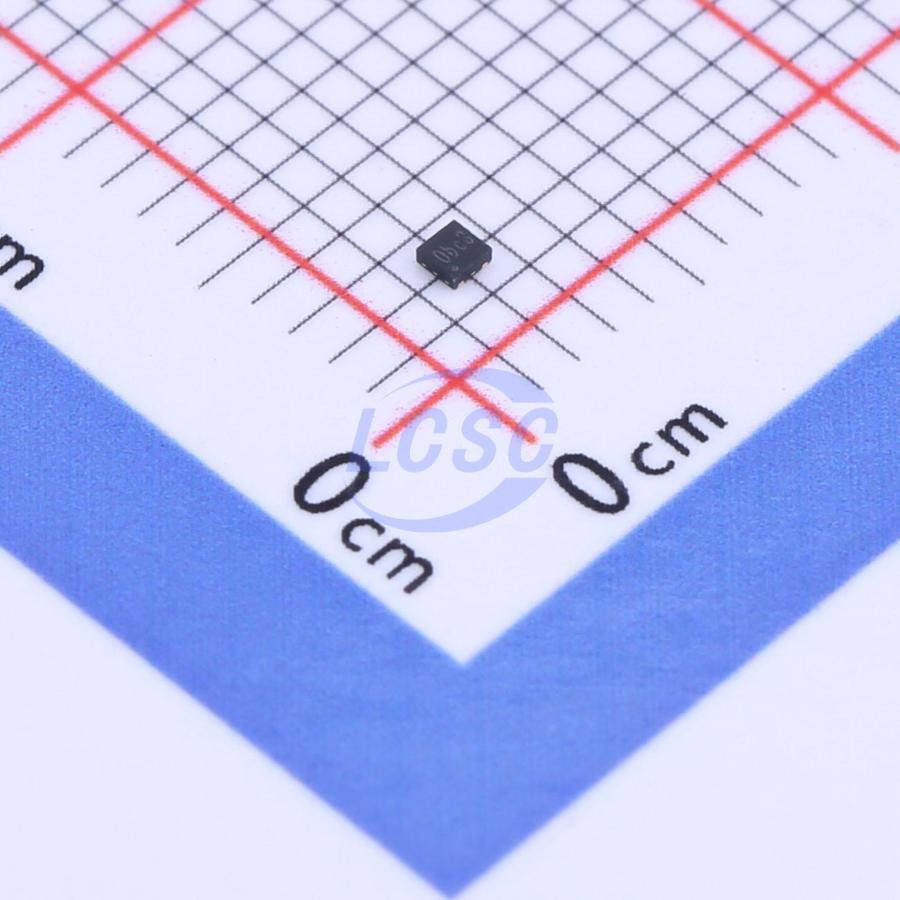

AP6683
Lithium Battery DFN-4-EP(1x1) Battery Management RoHS
One Cell Li-ion and Li-poly Battery Protection IC
- Manufacturer
- ALLPOWER
- Manufacturer part #
- AP6683
- Store part #
- C2849565
- Package / case
- DFN-4-EP(1x1)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,02,348 in stock
#C2849565
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹8.39 | ₹8.39 |
| 10+ | ₹7.51 | ₹75.10 |
| 30+ | ₹7.08 | ₹212.40 |
| 100+ | ₹6.75 | ₹675.00 |
| 500+ | ₹6.48 | ₹3,240.00 |
| 1,000+ | ₹6.35 | ₹6,350.00 |
1 × ₹8.39
₹8.39
excl. GST
₹9.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
AP6683
₹8.39 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 100nA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.012 g
Overview
The AP6683 is a high integration solution for lithium-ion/polymer battery protection. AP6683 contains internal power MOSFET, high-accuracy voltage detection circuits and delay circuits. AP6683 has all the protection functions required in the battery application including overcharging, over discharging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage. The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring long-term battery life. The AP6683 requires a minimal number of readily available, external components and is available in a space saving DFN4-1*1 package.
Applications
- One-Cell Li-ion Battery Pack
- Power Bank
- One-Cell Li-poly Battery Pack
- IOT Sensor/Electronic Toys
Key features
- Protection of Charger Reverse Connection
- Protection of Battery Cell Reverse Connection
- Over-temperature Protection
- Overcharge Current Protection
- Two-step Overcurrent Detection: Over Discharge Current, Load Short Circuiting
- Charger Detection Function
- 0V Battery Charging Function
- 55mΩ Low RSS(ON) Internal Power MOSFET
- Delay Times are generated inside
- High-accuracy Voltage Detection
- Low Current Consumption: Operation Mode: 0.7μA typ., Power-down Mode: 0.1μA typ.
- Resistor and Capacitor inside
- Available in DFN4-1*1 Package
- -40°C to +85°C Temperature Range
