DIODESDatasheet (PDF)

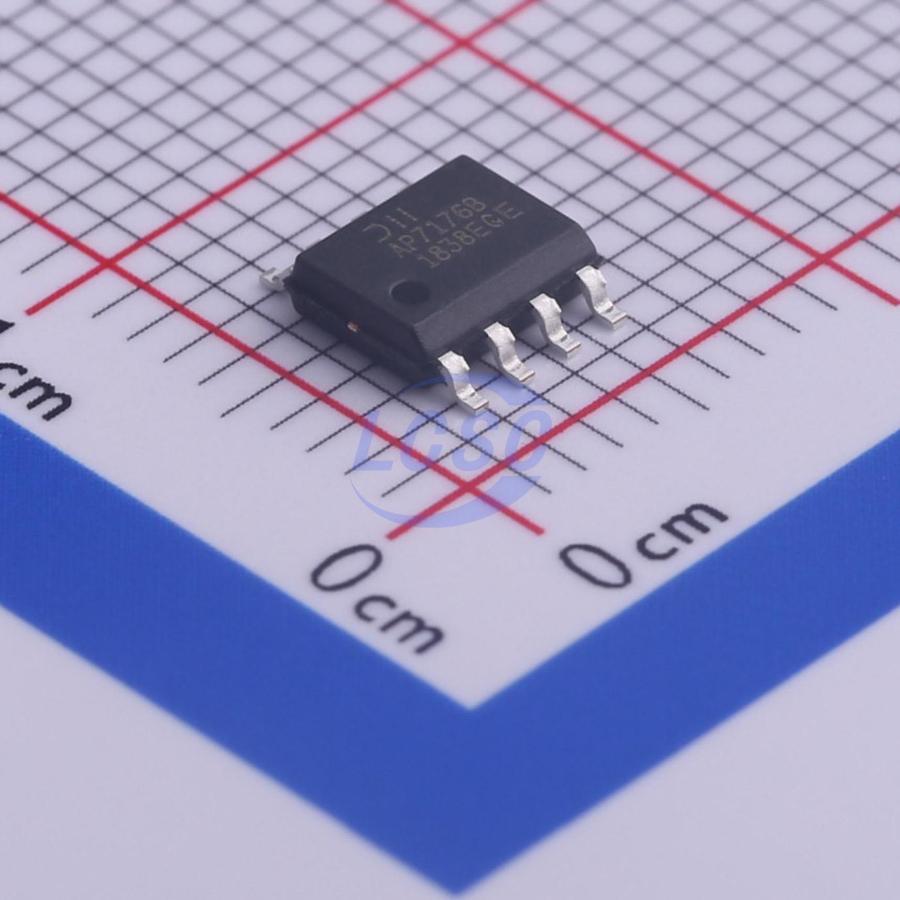

AP7176BSP-13
800mV~3.12V Positive Adjustable SOIC-8-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8-EPROHS3 CompliantActive
3A Ultra Low-Dropout Linear Regulator with Enable
- Manufacturer
- DIODES
- Manufacturer part #
- AP7176BSP-13
- Store part #
- C460366
- Package / case
- SOIC-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,670 in stock
#C460366
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.04 | ₹130.20 |
| 50+ | ₹20.63 | ₹1,031.50 |
| 150+ | ₹18.31 | ₹2,746.50 |
| 500+ | ₹15.41 | ₹7,705.00 |
| 2,500+ | ₹14.13 | ₹35,325.00 |
| 5,000+ | ₹13.36 | ₹66,800.00 |
5 × ₹26.04
₹130.20
excl. GST
₹153.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AP7176BSP-13
₹130.20 for 5 + GST
Specifications
- Output Voltage
- 800mV~3.12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.5mA
- Output Configuration
- Positive
- Operating Voltage
- 3.65V
- Output Current
- 3A
- Features
- Enable control;Built-in soft-start;Operating status indication;Reset function;Over Current Protection;Short Circuit Protection;Thermal shutdown;Power supply timing control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.111 g
Overview
The AP7176B is a 3.0A ultra low - dropout (LDO) linear regulator that features an enable input and a power - good output. The enable input and power - good output allow users to configure power management solutions that can meet the sequencing requirements of FPGAs, DSPs, and other applications with different startup and power - down requirements. The AP7176B features two supply inputs, for power conversion supply and control. With the separation of the control and the power input very low dropout voltages can be reached and power dissipation is reduced. A precision reference and feedback control deliver 1.5% accuracy over load, line, and operating temperature ranges. The AP7176B is available in SO - 8EP, MSOP - 8EP and U - DFN3030 - 10 packages with an exposed PAD to reduce the junction to case resistance and extend the temperature range it can be used in.
Applications
- Notebooks
- PCs
- Netbooks
- Wireless communication
- Servers
- Motherboards
- Dongles
- Front side bus VTT (1.2V/3.3A)
Key features
- Vin Range: 1.2V to 3.65V, VCNTL 3.0V to 5.5V
- Adjustable Output Voltage
- Continuous Output Current IOUT = 3A
- Fast Transient Response
- Power-On-Reset Monitoring on VCNTL and VIN
- Internal Soft-Start
- Stable with Low ESR MLCC Capacitors
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
