DIODESDatasheet (PDF)

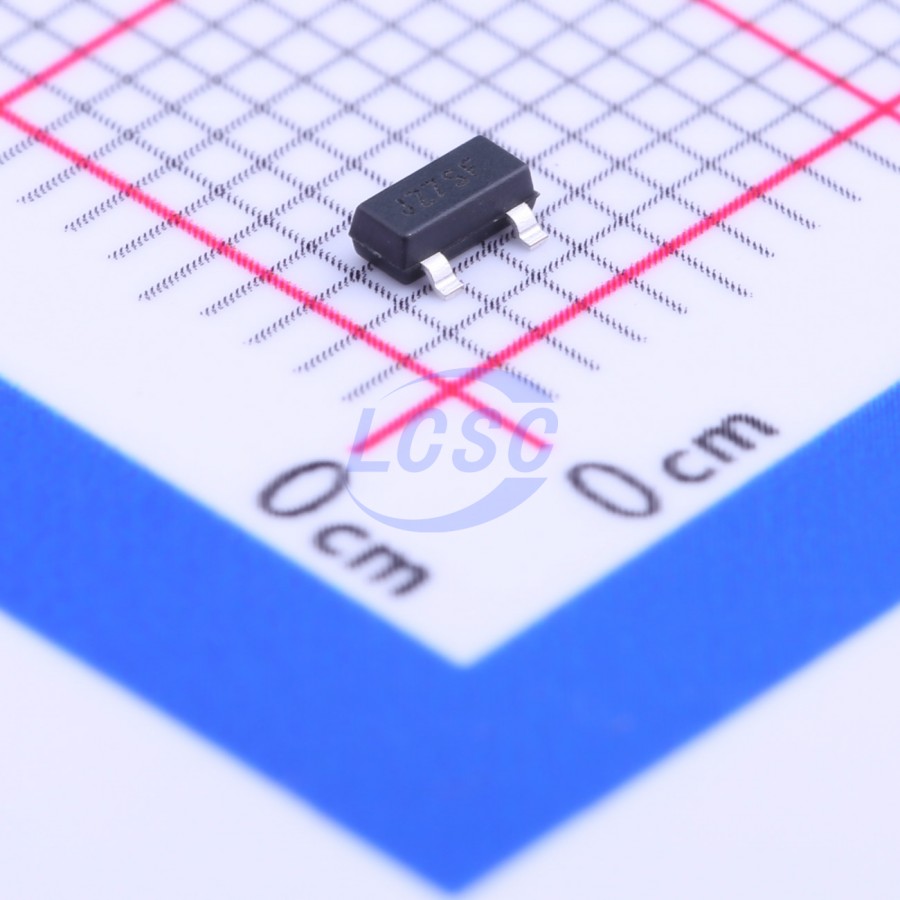

AP7333-33SAG-7
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23ROHS3 CompliantActive
300mA, Low Quiescent Current, Fast Transient, Low Dropout Linear Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AP7333-33SAG-7
- Store part #
- C150746
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,990 in stock
#C150746
Stock & price checked 15 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.79 | ₹83.95 |
| 50+ | ₹13.15 | ₹657.50 |
| 150+ | ₹11.34 | ₹1,701.00 |
| 500+ | ₹9.98 | ₹4,990.00 |
| 3,000+ | ₹8.88 | ₹26,640.00 |
| 6,000+ | ₹8.33 | ₹49,980.00 |
5 × ₹16.79
₹83.95
excl. GST
₹99.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP7333-33SAG-7
₹83.95 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 65uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
300mA Low Dropout Regulator in 3-pin package。The AP7333 is a 300mA, fixed output voltage, low dropout linear regulator. The device included pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry. The characteristics of low dropout voltage and low quiescent current make it suitable for low power applications, for example, battery powered devices. The typical quiescent current is approximately 65μA. Built-in current-limit and thermal-shutdown functions prevent IC from damage in fault conditions. The AP7333 is available in SOT23 packages with different pin-outs.
Applications
- XDSL Router
- Wireless LAN Cards
- Desktop and Notebook Computers
- Battery Powered Equipments Mouse, Keyboards
Key features
- Very low IQ over full load: 65μA
- Wide input voltage range: 2V to 6V
- Fixed output options: 1.0V to 3.3V PSRR: 65dB typical at 100Hz
- Fast start-up time: 80μs
- Stable with low ESR, ceramic output capacitor
- Excellent Load/Line Transient Response
- Low dropout: 300mV typical at 300mA
- Current limit protection
- Short circuit protection
- Thermal shutdown protection
- Ambient temperature range: -40℃ to 85℃
- Available in “Green” Molding Compound (No Br, Sb) Lead Free Finish/RoHS Compliant
