DIODESDatasheet (PDF)

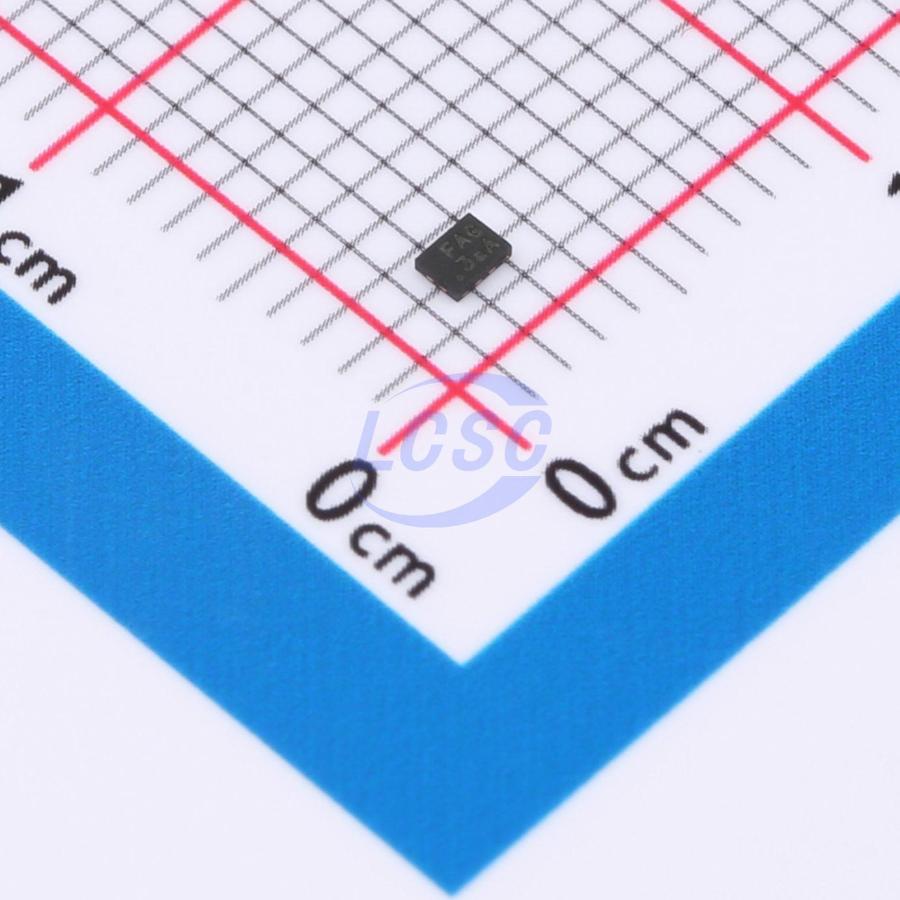

AP7345D-1833RH4-7
Positive Fixed X2-DFN1612-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
X2-DFN1612-8ROHS3 CompliantActive
Dual-channel 300mA high-PSRR low-noise LDO
- Manufacturer
- DIODES
- Manufacturer part #
- AP7345D-1833RH4-7
- Store part #
- C5244444
- Package / case
- X2-DFN1612-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
455 in stock
#C5244444
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.56 | ₹82.80 |
| 50+ | ₹13.24 | ₹662.00 |
| 150+ | ₹11.59 | ₹1,738.50 |
| 500+ | ₹10.35 | ₹5,175.00 |
| 2,500+ | ₹9.35 | ₹23,375.00 |
| 5,000+ | ₹8.86 | ₹44,300.00 |
5 × ₹16.56
₹82.80
excl. GST
₹97.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AP7345D-1833RH4-7
₹82.80 for 5 + GST
Specifications
- Output Voltage
- 1.8V;3.3V
- Number of Outputs
- 2
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 140uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 5.25V
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
The AP7345D is a Dual low dropout regulator with high output voltage accuracy, low RDSON, high PSRR, low output noise and low quiescent current. This regulator is based on a CMOS process. Each of regulators includes a voltage reference, error amplifier, current limit circuit and an enable input to turn on/ off output. With the integrated resistor network fixed output voltage versions can be delivered. With its low power consumption and line and load transient response, the AP7345D is well suited for low power handheld communication equipment. The AP7345D is packaged in X2-DFN1612-8 package and allows for smallest footprint and dense PCB layout.
Applications
- Smart Phone/PAD
- RF Supply
- Cameras
- Portable Video
- Portable Media Player
- Wireless Adapter Wireless Communication
Key features
- Low VIN and Wide VIN Range: 1.7V to 5.25V
- Guarantee Each Channel Output Current: 300mA
- VOUT Accuracy ±1% Ripple Rejection: 75dB at 1kHz
- Low Output Noise: 60μVrms from 10Hz to 100kHz
- Quiescent Current as Low as 50μA
- VOUT Fixed 1.2V to 3.6V
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free, Green Device
