DIODESDatasheet (PDF)

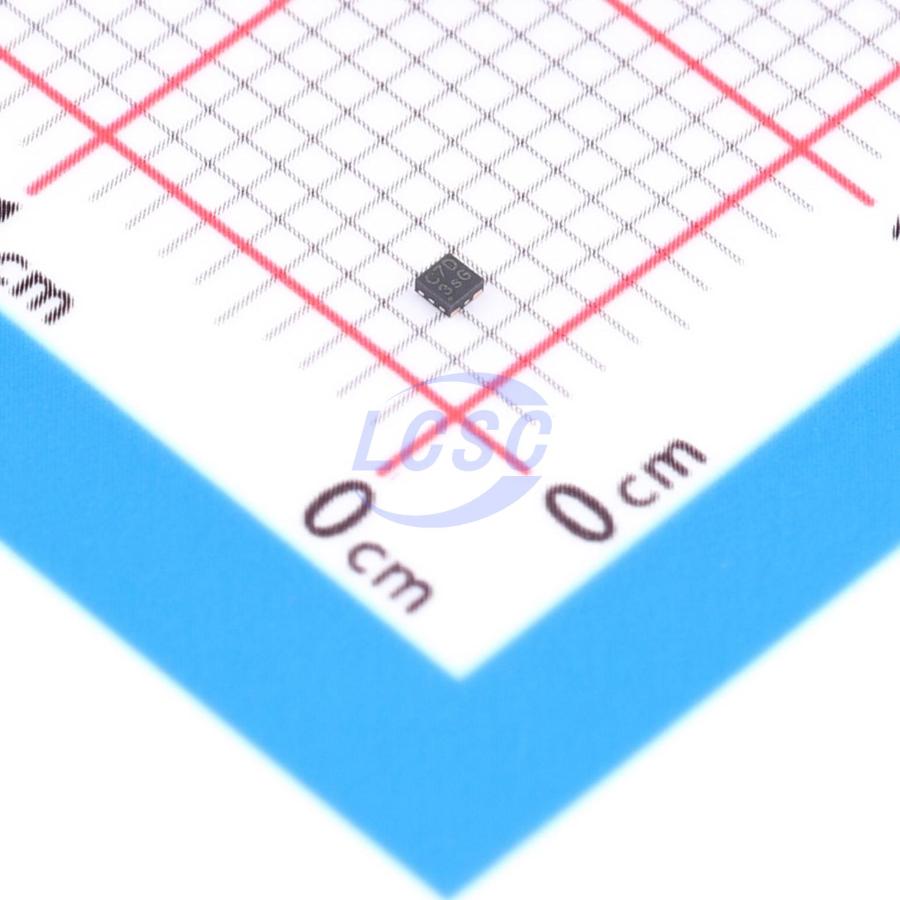

AP7351D-18FS4-7B
1.8V Positive Fixed X2-DFN1010-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
X2-DFN1010-4ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- AP7351D-18FS4-7B
- Store part #
- C7076934
- Package / case
- X2-DFN1010-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
250 in stock
#C7076934
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.02 | ₹93.02 |
| 10+ | ₹75.68 | ₹756.80 |
| 30+ | ₹67.00 | ₹2,010.00 |
| 100+ | ₹58.33 | ₹5,833.00 |
| 500+ | ₹53.13 | ₹26,565.00 |
| 1,000+ | ₹50.53 | ₹50,530.00 |
1 × ₹93.02
₹93.02
excl. GST
₹109.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
AP7351D-18FS4-7B
₹93.02 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 500nA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
The AP7351D is a low dropout regulator with high output voltage accuracy. The AP7351D includes a voltage reference, error amplifier, current limit circuit and an enable input to turn it on/off. With the integrated resistor network, fixed output voltage versions can be delivered. With its ultra-low quiescent current, the AP7351D is well suited for low-power handheld, wearable devices, and other battery-operated devices requiring an extended time period until new battery replacement. The AP7351D is available in the X2-DFN1010-4 (Type B) and SOT25 packages.
Applications
- Wearable Electronics
- Sensor Module for Internet-Of-Things (IOT)
- Wireless Communication Module
- Battery-Operated Device
- Camera
- Image Sensor
Key features
- Low VIN and Wide VIN Range: 1.4V to 5.5V
- Guarantee Output Current, 150mA
- Output Voltage Range: 0.8V to 4.5V
- VOUT Accuracy: ±1%
- Ripple Rejection up to 60dB at 1kHz
- Quiescent Current as Low as 0.5μA
- Typical Standby Current 0.02μA
- Totally Lead-Free & Fully RoHS Compliant
- Halogen- and Antimony-Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MD5118#C919698Mingda Microelectronics · XDFN-4-EP(1x1) | Mingda Microelectronics | XDFN-4-EP(1x1) | 175 | ₹9.18 · 175 in stock | View |
 | NCP114AMX180TCG#C179594onsemi · UDFN-4-EP(1x1) | onsemi | UDFN-4-EP(1x1) | 11,635 | ₹13.02 · 11,635 in stock | View |
 | SSP7615-18DFR#C3011520Siproin · DFN-4(1x1) | Siproin | DFN-4(1x1) | 9,015 | ₹12.11 · 9,015 in stock | View |
 | NCP170BMX180TCG#C457739onsemi · XDFN-4(1x1) | onsemi | XDFN-4(1x1) | 30 | ₹65.13 · 30 in stock | View |
 | NCP170AMX180TCG#C603665onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | 4 | ₹32.51 · 4 in stock | View |
