DIODES

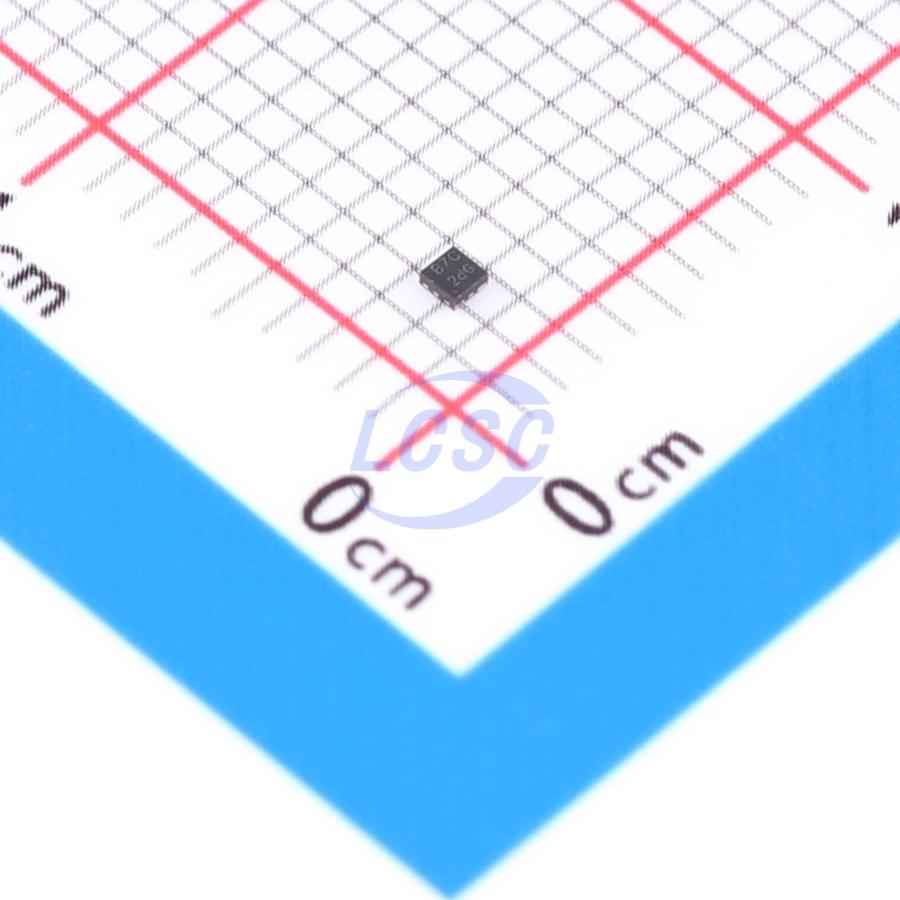

AP7353D-28FS4-7

2.8V Positive Fixed X2-DFN1010-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

X2-DFN1010-4ROHS3 CompliantActive

IC REG LINEAR 2.8V 250mA X2-DFN1010-4

Manufacturer: DIODES
Manufacturer part #: AP7353D-28FS4-7
Store part #: C7214718
Package / case: X2-DFN1010-4
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

100 in stock

#C7214718

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹31.87	₹31.87
10+	₹31.26	₹312.60
30+	₹30.85	₹925.50
100+	₹30.24	₹3,024.00

Quantity (min 1)

1 × ₹31.87

₹31.87

excl. GST

₹37.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

AP7353D-28FS4-7

₹31.87 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 2.8V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 18uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 250mA
Output Type: Fixed
Features: Enable control;Output discharge;Short Circuit Protection

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.089 g

Overview

The DIODES AP7353 is a low dropout regulator with high output voltage accuracy, low RDSON, high PSRR, low output noise, and low quiescent current. This regulator is based on a CMOS process. The AP7353 includes a voltage reference, error amplifier, current-limit circuit, and an enable input to turn it on and off. With the integrated resistor network, fixed output voltage versions can be delivered. With its high PSRR, good line regulation, and fast load transient response, the AP7353 is well suited for handheld/wearable communication equipment that require stable voltage sources. The AP7353 is packaged in the X1-WLB0707-4 (Type A1) and X2-DFN1010-4 (Type B), which allow for a reduced footprint and denser PCB layout.

Applications

Smartphones/PADs
RF supplies
Cameras
Portable videos
Portable media players
Wireless adaptors
Wireless communication

Key features

Low VIN and Wide VIN Range: 2.0V to 5.5V Guarantee Output Current, 250mA
VOUT Accuracy ±1%
Ripple Rejection 90dB at 1kHz, lour = 10mA
Ripple Rejection 70dB at 10kHz, lour = 250mA
Low Output Noise, 10μVrms from 10Hz to 100kHz at 10mA
Quiescent Current as Low as 18μA (Typ.)
VOUT Fixed 1.8V to 4.7V
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free, Green Device

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
NCP160AMX280TBG#C457667onsemi · XDFN-4(1x1)	onsemi	XDFN-4(1x1)	195	₹29.70 · 195 in stock	View
NCV8161AMX280TBG#C604029onsemi · UDFN-4(1x1)	onsemi	UDFN-4(1x1)	2,680	₹34.38 · 2,680 in stock	View
NCP161AMX280TBG#C463128onsemi · XDFN-4-EP(1x1)	onsemi	XDFN-4-EP(1x1)	5	₹68.25 · 5 in stock	View
LW5728N11E#C47018872Lewa Micro · DFN-4L(1x1)	Lewa Micro	DFN-4L(1x1)	9,910	₹35.69 · 9,910 in stock	View
LW5428N11E#C51953163Lewa Micro · DFN-4L(1x1)	Lewa Micro	DFN-4L(1x1)	9,995	₹44.19 · 9,995 in stock	View
