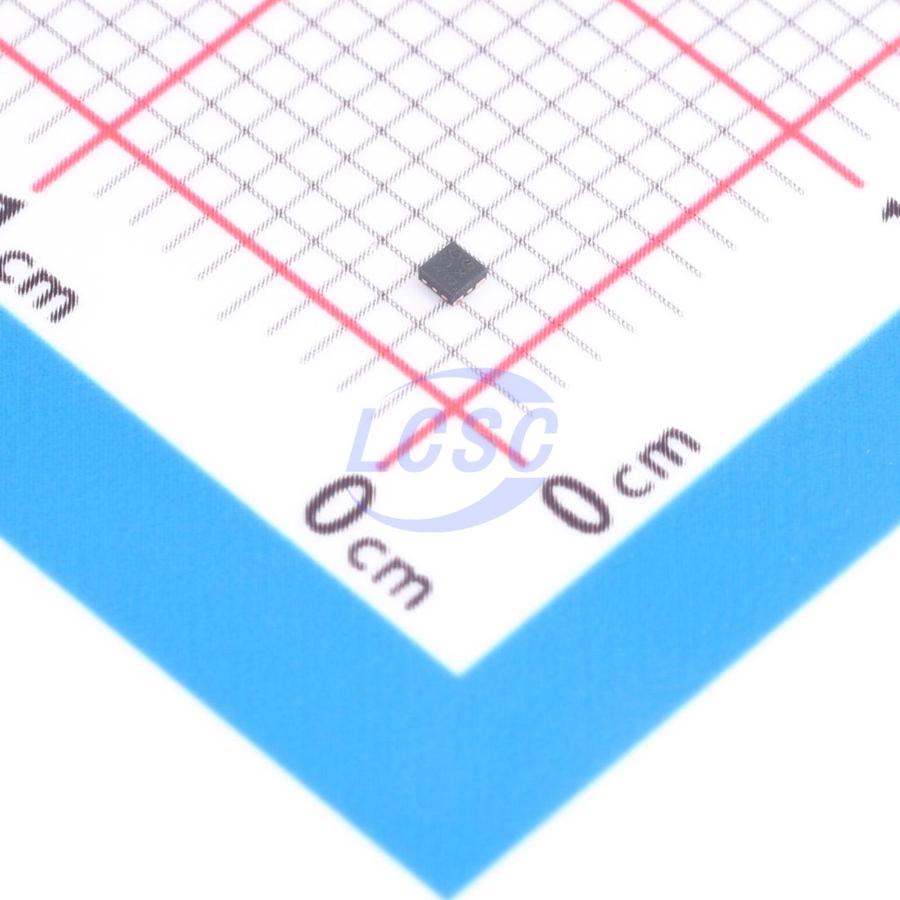

AP7354D-30FS4-7

The AP7354 is a low dropout regulator with high output voltage accuracy. The AP7354 includes a voltage reference, error amplifier, current limit circuit, and an enable input to turn it on/off. With the integrated resistor network, fixed output voltage versions can be delivered. With its ultra-low quiescent current, the AP7354 is well-suited for low-power handheld, wearable devices, and other battery-operated devices requiring an extended time period until new battery replacement. The AP7354 is available in SOT23, SOT25, and X2-DFN1010-4 (Type B) packages.

Applications

• Wearable Electronics
• Sensor Module for Internet-of-Things (IoT)
• Wireless Communication Module
• Battery-Operated Device Camera Image Sensor

Key features

• Wide VIN Range: 2.0V to 5.5V
• Guarantee Output Current: 150mA
• Output Voltage Range: 1.1V to 4.5V
• VOUT Accuracy: ±1%
• Quiescent Current as Low as 0.25μA
• Output Discharge Available for Devices in SOT25 or X2-DFN1010-4 (Type B) Typical Standby Current: 0.02μA
• ESD Protection Exceeds JESD 22: Exceeds 4000V Human Body Model (A114), Exceeds 400V Machine Model (A115)
• Latch-Up Exceeds 400mA per JESD 78, Class I
• Moisture Sensitivity: Level 1 per J-STD-020
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
