DIODESDatasheet (PDF)

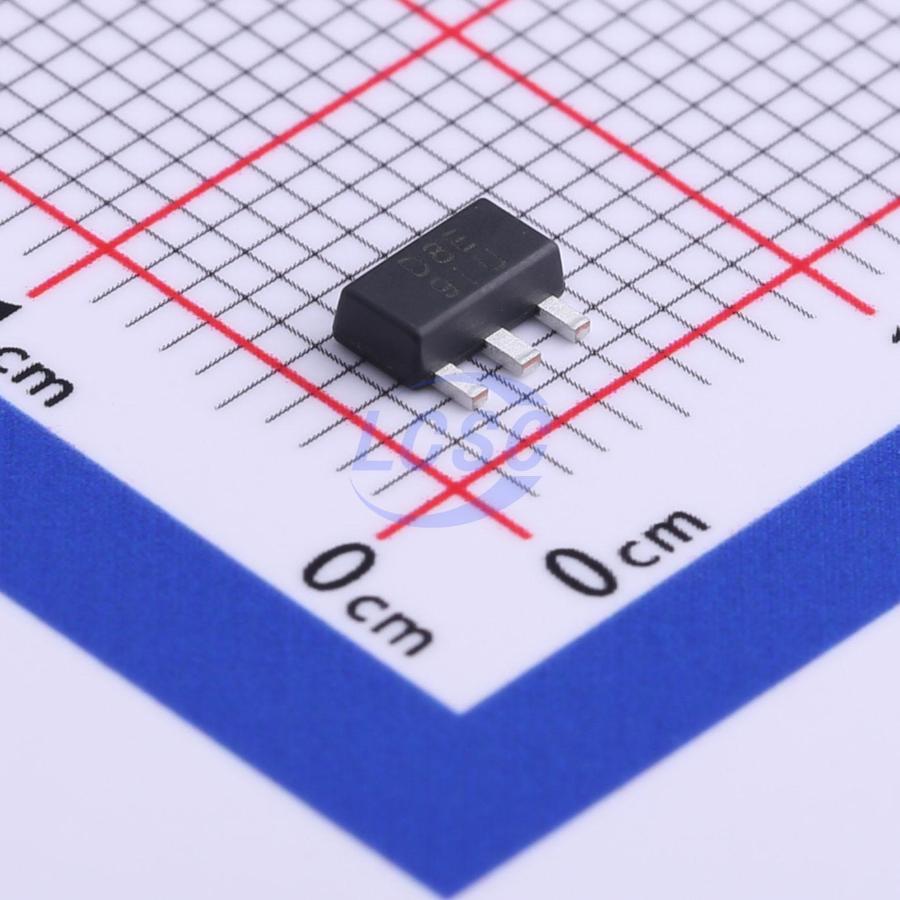

AP7380-30Y-13
3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS3 CompliantActive
Wide Input Voltage Range, 150mA ULDO Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AP7380-30Y-13
- Store part #
- C555162
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,140 in stock
#C555162
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.88 | ₹139.40 |
| 50+ | ₹22.12 | ₹1,106.00 |
| 150+ | ₹19.66 | ₹2,949.00 |
| 500+ | ₹16.59 | ₹8,295.00 |
| 2,500+ | ₹15.21 | ₹38,025.00 |
| 5,000+ | ₹14.39 | ₹71,950.00 |
5 × ₹27.88
₹139.40
excl. GST
₹164.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AP7380-30Y-13
₹139.40 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 150mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.252 g
Overview
The AP7380 series is a positive voltage regulator IC. The AP7380 has features of wide input voltage range, high accuracy, low dropout voltage, current limit and ultra- low quiescent current which make it ideal for use in various USB and portable devices and instrument application. The IC consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current limit circuit for current protection, and a chip enable circuit. The AP7380 is available in 1.8V, 3.0V, 3.3V, 3.6V, 4.15V, 4.4V and 5.0V fixed output voltage versions. The AP7380 is available in space- saving SOT25 and SOT89 (Option 2) packages.
Applications
- Battery- powered equipments
- Laptops, palmtops, notebook computers
- Portable information appliances
Key features
- Wide Input Voltage Range: Up to 24V
- Low Dropout Voltage: VDROP = 500mV @ IOUT = 50mA
- Low Ground Current
- High Output Voltage Accuracy
- Compatible with Low ESR Ceramic Capacitor
- Excellent Line/Load Regulation
- Thermal Shutdown Function
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| LW6530A89C#C51953187Lewa Micro · SOT-89-3A | Lewa Micro | SOT-89-3A | 980 | ₹8.51 · 980 in stock | View | |
| LW6530B89C#C51953189Lewa Micro · SOT-89-3B | Lewa Micro | SOT-89-3B | 980 | ₹8.23 · 980 in stock | View | |
 | LW6430A89C#C53426708Lewa Micro · SOT-89-3L | Lewa Micro | SOT-89-3L | 1,000 | ₹7.09 · 1,000 in stock | View |
 | LW6430B89C#C53426709Lewa Micro · SOT-89-3L | Lewa Micro | SOT-89-3L | 1,000 | ₹7.09 · 1,000 in stock | View |
 | SL7330-8#C2826483Slkor · SOT-89-3 | Slkor | SOT-89-3 | 650 | ₹17.23 · 650 in stock | View |
