DIODESDatasheet (PDF)

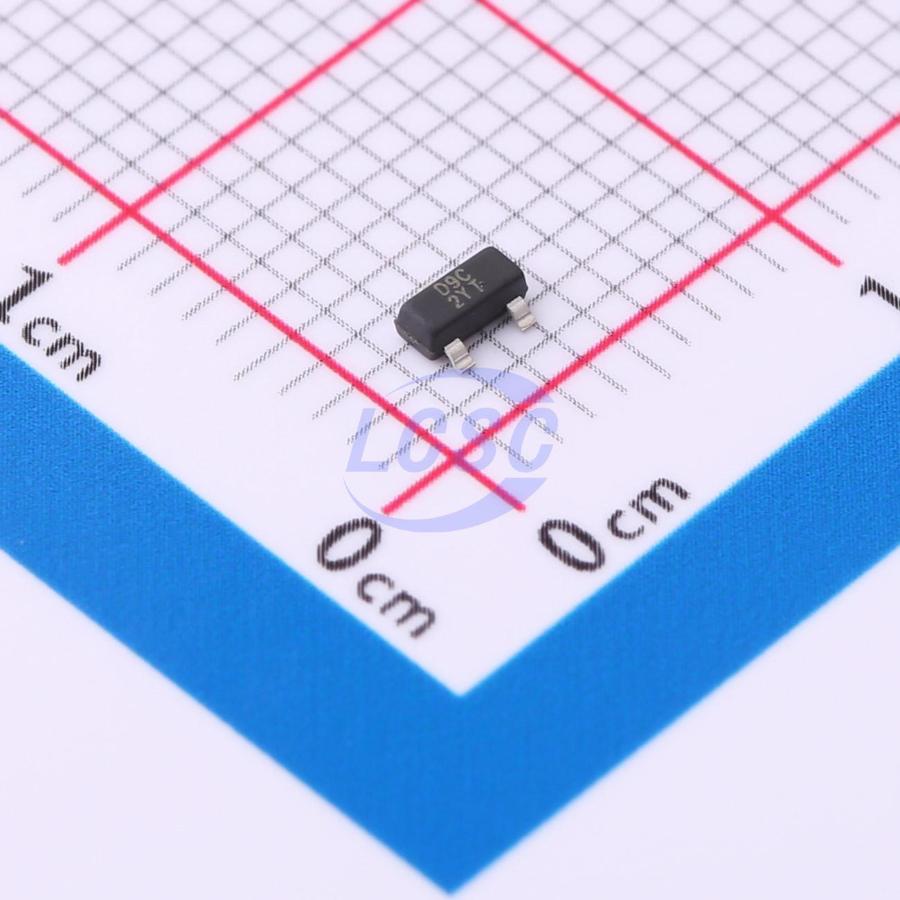

AP7381-28SA-7
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23
SOT-23ROHS3 CompliantActive
Wide input voltage range 150mA low dropout regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AP7381-28SA-7
- Store part #
- C2974184
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C2974184
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.49 | ₹132.45 |
| 50+ | ₹21.02 | ₹1,051.00 |
| 150+ | ₹18.68 | ₹2,802.00 |
| 500+ | ₹15.76 | ₹7,880.00 |
| 3,000+ | ₹14.46 | ₹43,380.00 |
| 6,000+ | ₹13.68 | ₹82,080.00 |
5 × ₹26.49
₹132.45
excl. GST
₹156.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP7381-28SA-7
₹132.45 for 5 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 150mA
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection;Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.064 g
Overview
The AP7381 series is a positive voltage regulator IC. The AP7381 has features of wide input voltage range, high accuracy, low dropout voltage, current limit and ultra- low quiescent current which make it ideal for use in various USB and portable devices. The IC consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current limit circuit for current protection, and a chip enable circuit. The AP7381 has 2.8V, 3.3V, 5V and 7V fixed voltage version. The AP7381 is available in space- saving SOT23, SOT89 and TO92 (Ammo Packing) packages.
Applications
- E-meters
- Battery-powered equipments
- Laptops, palmtops, notebook computers
- Portable information appliances
Key features
- Wide Input Voltage Range: Up to 40V
- Low Dropout Voltage: VDROP = 1000mV @ IOUT = 100mA @ VOUT = 3.3V
- Low Ground Current
- High Output Voltage Accuracy
- Compatible with Low ESR Ceramic Capacitor
- Excellent Line/Load Regulation
- Thermal Shutdown Function
- Short Current Protection Function
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| GP2001-28HMR#C48997221GUQIAO Microelectronics · SOT-23-3 | GUQIAO Microelectronics | SOT-23-3 | On request | ₹8.36 · 0 in stock | View | |
| SGM2203-2.8YN3LG/TR#C5141619SGMICRO · SOT-23 | SGMICRO | SOT-23 | On request | ₹41.91 · 0 in stock | View | |
