DIODESDatasheet (PDF)

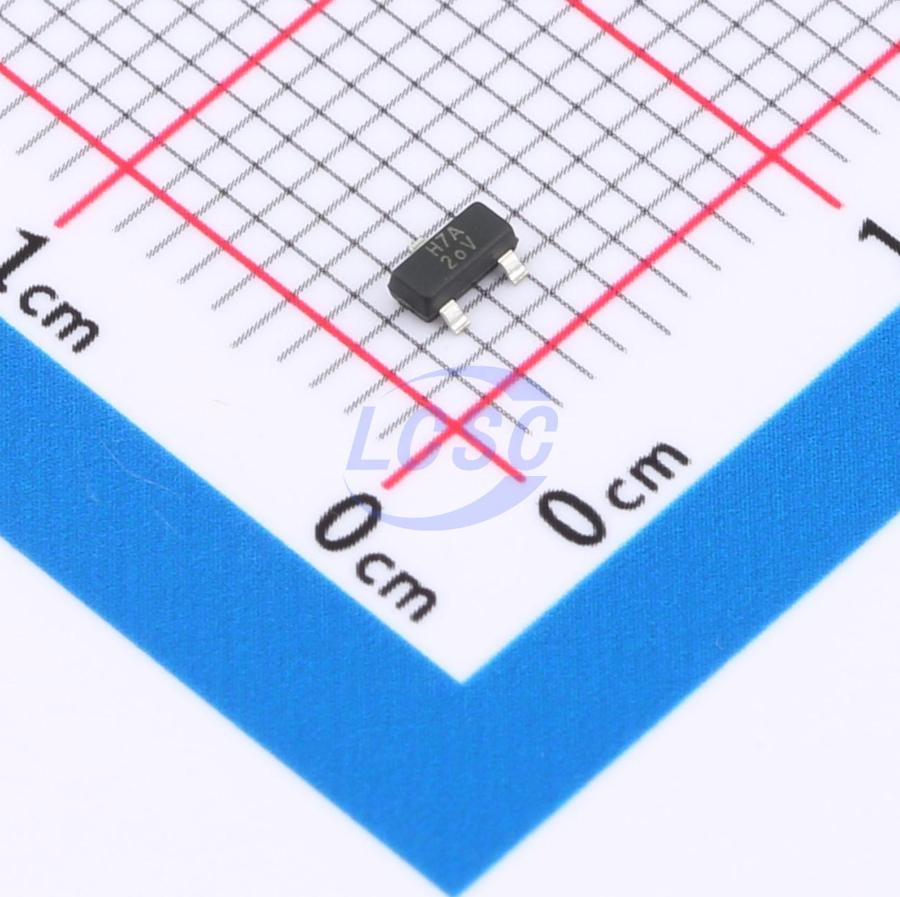

AP7387-30SA-7
3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23ROHS3 CompliantActive
Wide input voltage range 150mA LDO regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AP7387-30SA-7
- Store part #
- C7214748
- Package / case
- SOT-23
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C7214748
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹115.07 | ₹115.07 |
| 10+ | ₹93.48 | ₹934.80 |
| 30+ | ₹82.48 | ₹2,474.40 |
| 100+ | ₹71.89 | ₹7,189.00 |
| 500+ | ₹65.42 | ₹32,710.00 |
| 1,000+ | ₹61.97 | ₹61,970.00 |
1 × ₹115.07
₹115.07
excl. GST
₹135.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per bag
AP7387-30SA-7
₹115.07 for 1 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 60V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 3,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.107 g
Overview
The AP7387 is a wide input voltage range (60V), low quiescent current, high-PSRR, linear regulator able to drive 150mA output current. The device features a very fast line/load transient response against rapid input-voltage and load-current changes. The IC consists of a voltage reference, an error amplifier, a current-limit circuit for currentprotection, short-circuit, and thermal-shutdown protection. The AP7387 has 3.0V, 3.3V, 3.6V, and 5V fixed output voltage versions, and is available in the SOT23, SOT25, SOT89, and UDFN2020-6 (Type C) packages.
Applications
- Battery-powered equipment
- Smoke detectors and sensors
- EV and HEV battery management systems
- Micro-controller applications
- Home appliances
Key features
- Wide Input Voltage Range: 5V to 60V
- Maximum Output Current: 150mA
- VDROP = 700mV @ IOUT = 100mA (typ.)
- VDROP = 1100mV @ IOUT = 150mA (typ.)
- Low Quiescent Current: 2μA (typ.)
- High Output Voltage Accuracy: ±2%
- High PSRR: 70dB @ 1kHz
- Excellent Line/Load Regulation
- Thermal Shutdown Function
- Short-Current Protection Function
- Output Current Limit
- Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) An automotive-compliant part is available under separate datasheet (AP7387Q)
