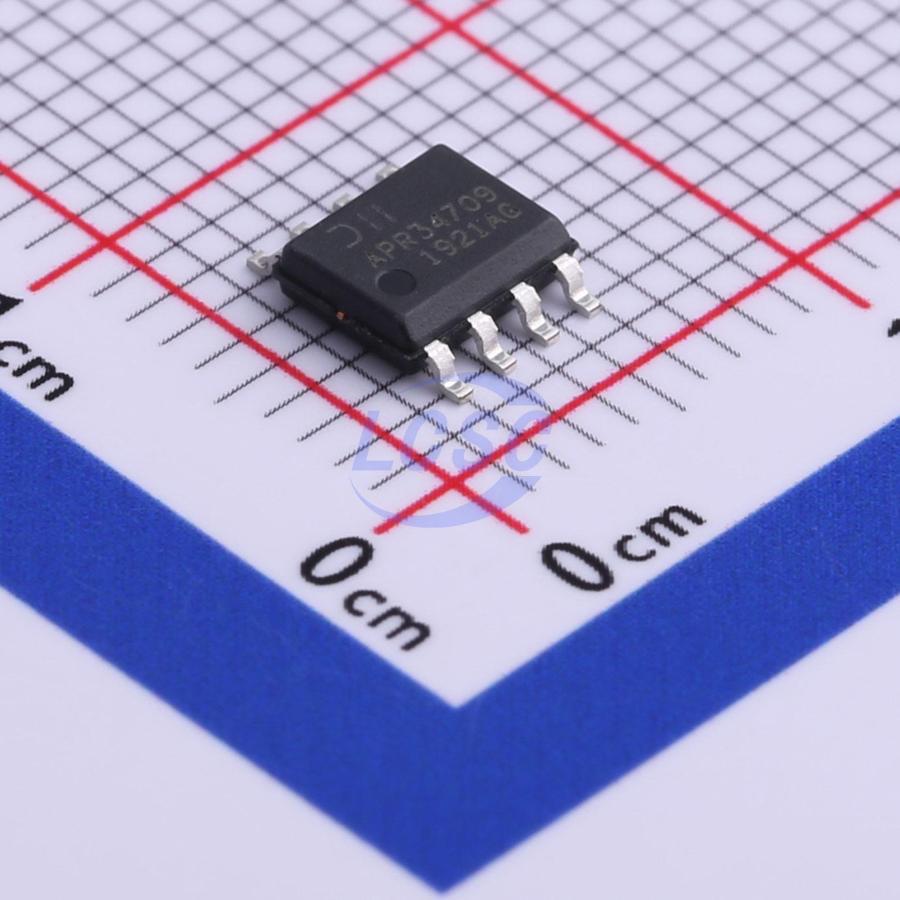

APR34709SP-13
8mΩ 3.3V~16V SO-8-EP Gate Drivers RoHS
Secondary Side Synchronous Rectification Switcher
- Manufacturer
- DIODES
- Manufacturer part #
- APR34709SP-13
- Store part #
- C526389
- Package / case
- SO-8-EP
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,951 in stock
#C526389
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹36.58 | ₹36.58 |
| 10+ | ₹28.31 | ₹283.10 |
| 30+ | ₹24.18 | ₹725.40 |
| 100+ | ₹20.26 | ₹2,026.00 |
| 500+ | ₹17.77 | ₹8,885.00 |
| 1,000+ | ₹16.54 | ₹16,540.00 |
1 × ₹36.58
₹36.58
excl. GST
₹43.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
APR34709SP-13
₹36.58 for 1 + GST
Specifications
- MOS Breakdown Voltage
- 60V
- Features
- Adaptive synchronous rectification control;Leading edge blanking;Light load efficient mode
- Switch Tube (Built-In/External)
- Built-in
- Quiescent Current
- 150uA
- RDS(on)
- 8mΩ
- Voltage - Supply
- 3.3V~16V
- Turn-Off Delay
- 100ns
- Operating Temperature
- -40℃~+85℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.186 g
Overview
The APR34709 is a secondary side Combo IC, which combines an NChannel MOSFET and a driver circuit designed for Synchronous Rectification (SR), supports DCM and Quasi-Resonant Flyback Topologies. The N-Channel MOSFET is optimized for low gate charge, low RDS(ON), fast switching speed and body diode reverse recovery performance. The synchronous rectification can effectively reduce the secondary side rectifier power dissipation and provide high performance solution. By sensing MOSFET drain-to-source voltage, the APR34709 can output ideal drive signal with less external components. It can provide high performance solution for 3.3V to 15V output voltage application. The APR34709 is available in SO-8EP package.
Applications
- Adapters/Chargers for Cell/Cordless Phones, ADSL Modems, MP3 and Other Portable Apparatus
- Standby and Auxiliary Power Supplies
Key features
- Synchronous Rectification for DCM Operation Flyback
- Eliminate Resonant Ring Interference
- Fast Detector of Supply Voltages
- Fewest External Components
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
