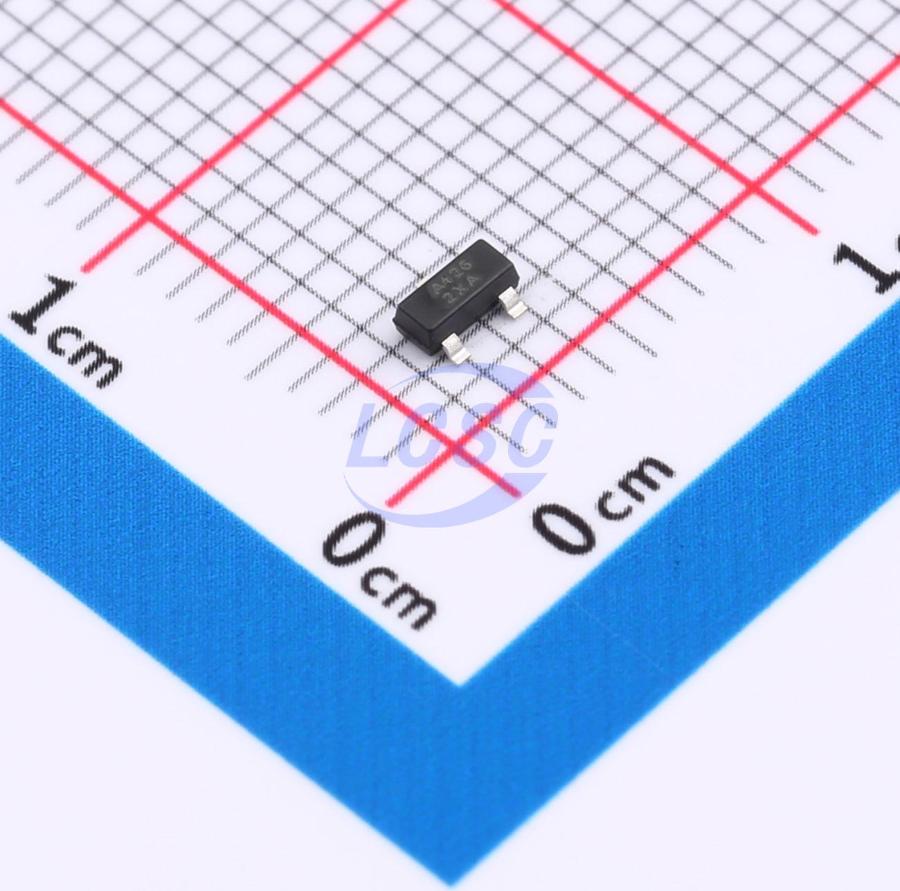

APX803L20-26SA-7
220ms Active Low 900mV~5.5V 1 SOT-23-3 Supervisors RoHS
Micro-power Voltage Detector
- Manufacturer
- DIODES
- Manufacturer part #
- APX803L20-26SA-7
- Store part #
- C5378689
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,640 in stock
#C5378689
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.32 | ₹121.60 |
| 50+ | ₹19.30 | ₹965.00 |
| 150+ | ₹17.16 | ₹2,574.00 |
| 500+ | ₹14.47 | ₹7,235.00 |
| 3,000+ | ₹13.28 | ₹39,840.00 |
| 6,000+ | ₹12.57 | ₹75,420.00 |
5 × ₹24.32
₹121.60
excl. GST
₹143.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
APX803L20-26SA-7
₹121.60 for 5 + GST
Specifications
- output type
- Open-drain
- Reset Timeout
- 220ms
- Operating Temperature
- -40℃~+85℃@(TA)
- Reset Active Level
- Active Low
- standby current
- 1uA
- Voltage - Supply
- 900mV~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.6V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
The APX803L is a micro-power voltage detector series used for microprocessor (μP) supervisory circuits to monitor the power supplies in μP and digital systems. It provides a wide range of detection voltage levels from 1.2V to 5.0V with 0.1V per step options fixed internally. It requires a low supply current level of 1μA (typical). These circuits perform the supervisory function by sending out a reset signal when the monitored VCC level falls below a chosen threshold voltage level, and the reset signal will remain until VCC recovers to a level higher than the threshold voltage. The APX803L has an open-drain output with an active-low output pin and features several delay time options (0ms, 55ms, 220ms and 450ms). The APX803L is available in two pin out variants of the 3-pin SOT23, SOT323, SC59 and SOT25 packages.
Applications
- Computers
- Controllers
- Intelligent Instruments
- Critical μP and μc Power Monitoring
- Portable/Battery Powered Equipment
Key features
- Low Supply Current: 1.0μA (typ.), 2.5μA (max.)
- Internal Fixed 1.2V to 5.0V Threshold with 0.1V Step High Threshold Voltage Accuracy: ±1.5%
- Quick Reset within 20μs
- Built-in Recovery Delay Time Options: 0ms, 55ms, 220ms and 450ms
- Open-Drain Output: Active Low
- No External Components Required
- SOT23, SOT323, SC59 and SOT25 Packages
- Totally Lead-Free & Fully RoHS Compliant, Halogen and Antimony Free. “Green” Device
