TECH PUBLICDatasheet (PDF)

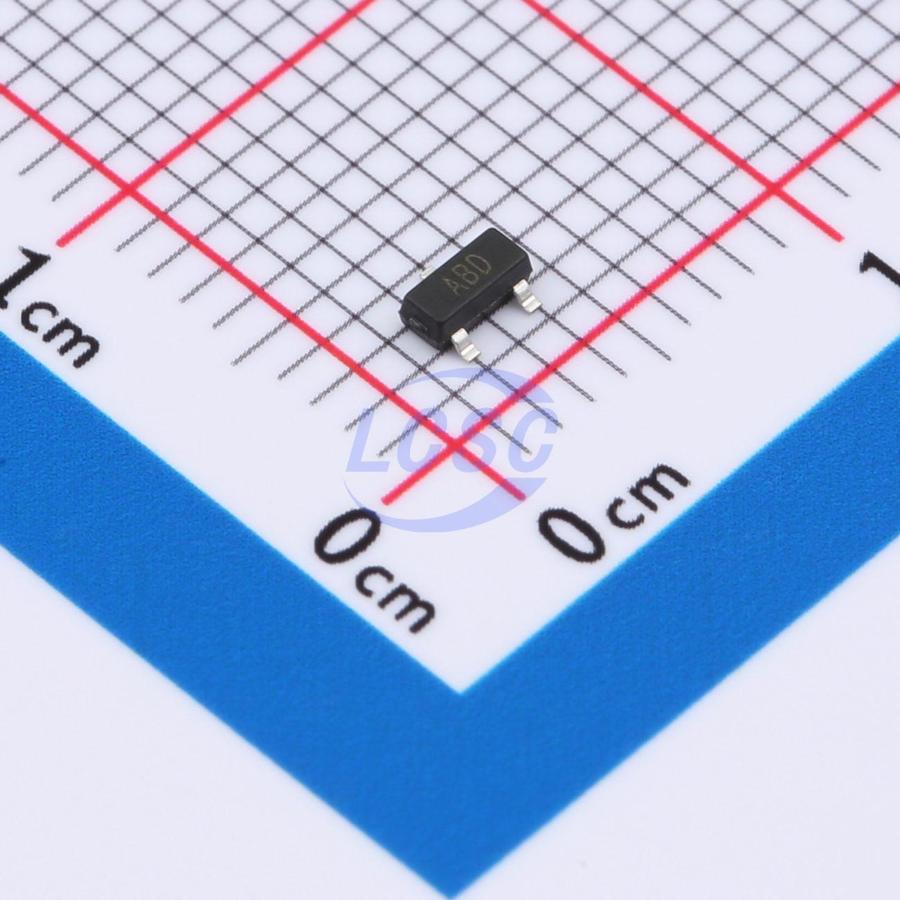

TPAX803RS3
Supervisor Open Drain 1 Channel SOT-23
SOT-23RoHSActive
Microprocessor Reset Circuit
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAX803RS3
- Store part #
- C23380907
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,085 in stock
#C23380907
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.07 | ₹85.35 |
| 50+ | ₹13.53 | ₹676.50 |
| 150+ | ₹11.77 | ₹1,765.50 |
| 500+ | ₹10.45 | ₹5,225.00 |
| 3,000+ | ₹9.39 | ₹28,170.00 |
| 6,000+ | ₹8.85 | ₹53,100.00 |
5 × ₹17.07
₹85.35
excl. GST
₹100.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAX803RS3
₹85.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+105℃@(TA)
- Reset Timeout
- 240ms
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- Battery-operated systems and controllers
- Intelligent instruments
- Critical μP and μc power monitoring
- Portable / Battery powered equipment
- Automotive
Key features
- High Accurate ±2%
- Precision VCC Monitoring of +2.5V, +3V, +3.3V and +5V Supplies
- Power Supply Transient Immunity
- Guaranteed Reset Valid to VCC=+1V
- Fully Specified Over Temperature
- 2μA Supply Current
- Available in One Output Configuration: Open-Drain Active-Low RESET Output
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAPX803S-26SA#C52817194TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 5 | ₹11.46 · 5 in stock | View |
 | TPMCP120T-270I/TT#C52817237TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,995 | ₹26.76 · 2,995 in stock | View |
 | TPMCP121T-270E/TT#C52817241TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,540 | ₹26.76 · 2,540 in stock | View |
 | TPMIC803-26D3VM3#C52817260TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 20 | ₹11.46 · 20 in stock | View |
 | TPNCP803SN263T1G#C52817284TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,060 | ₹15.58 · 2,060 in stock | View |
